L End Column Cap Left with screws
$408.64

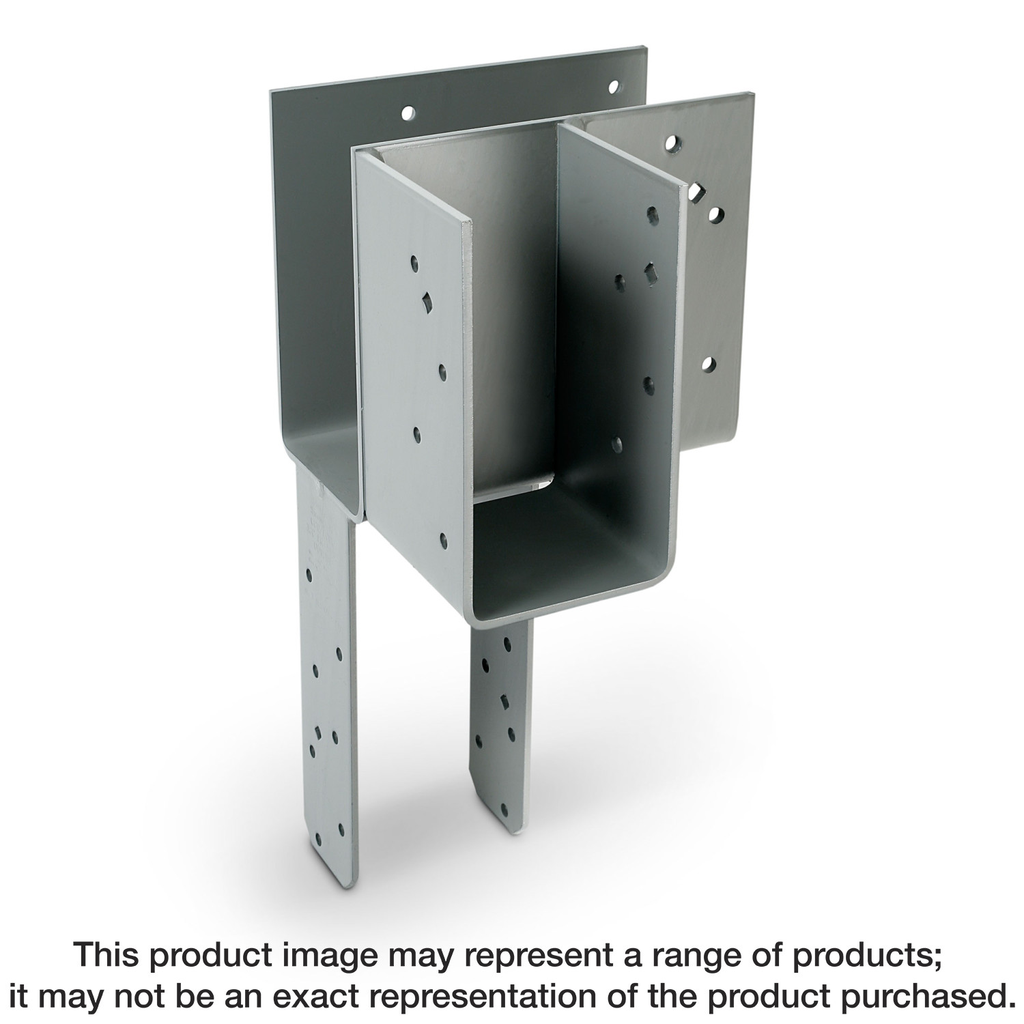

Engineered for structural integrity and ease of use, the ECCLLQ HDG L-Shape End Column Cap from Simpson Strong-Tie is an essential component for connecting 4x beams to 6x posts, ensuring robust support for various applications. Constructed from 7-gauge steel and treated with hot-dip galvanization, this cap provides exceptional corrosion resistance, making it suitable for both exterior and treated wood settings. The certified welds guarantee dependable strength and loading capabilities, while diamond holes facilitate temporary fastening during assembly. Additionally, screws are meticulously configured to deliver high uplift design values, ensuring enhanced stability when installed. This specific model is designed for left-skewed applications, with a counterpart available for right-skewed configurations.
Description
The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Additional information
| Weight | 14.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Member Sizes | 4x main beam, 6x post, 4x side beam |
| Material | 7-gauge steel |
