L END COLUMN CAP (LEFT) WITH SCREWS
$433.36

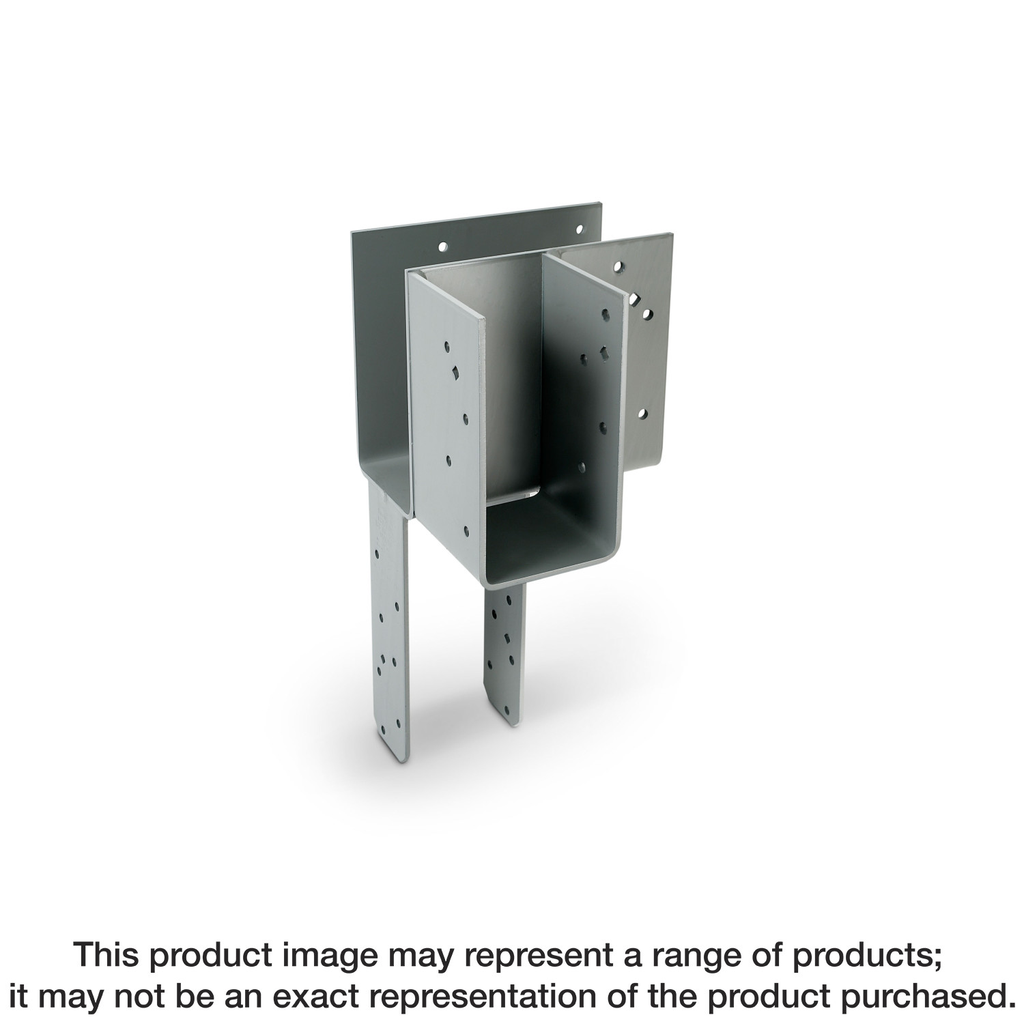

The L-Shape End Column Cap from Simpson Strong-Tie provides essential support for structures utilizing 6x beams and posts, with a design tailored specifically for left-direction applications. Crafted from durable 7-gauge steel, this cap features certified welds, ensuring a robust connection that meets high uplift design values. To enhance usability, it includes diamond holes for temporary fastening, streamlining installation processes. A distinct gray paint finish not only enhances durability but also provides an aesthetically pleasing appearance. For those requiring a right-direction option, the ECCLRQ model is available.
Description
The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Additional information
| Weight | 19.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Design Load | High Uplift |
| Beam Size | 6 in |
