L End column Cap Right with screws
$375.50
Engineered for robust structural support, the L-Shape End Column Cap is an essential component for any project utilizing 4x beams and posts. Crafted from durable 7-gauge steel and featuring hot-dip galvanization, this cap not only enhances corrosion resistance for exposed and treated wood applications but also ensures longevity in challenging outdoor environments. Its design includes diamond holes for temporary fastening and a configuration of screws that provide superior uplift design values, making it a reliable choice for secure installations. With certified welds for proven strength and loading, you can confidently incorporate this component into your next construction or renovation project.
Description

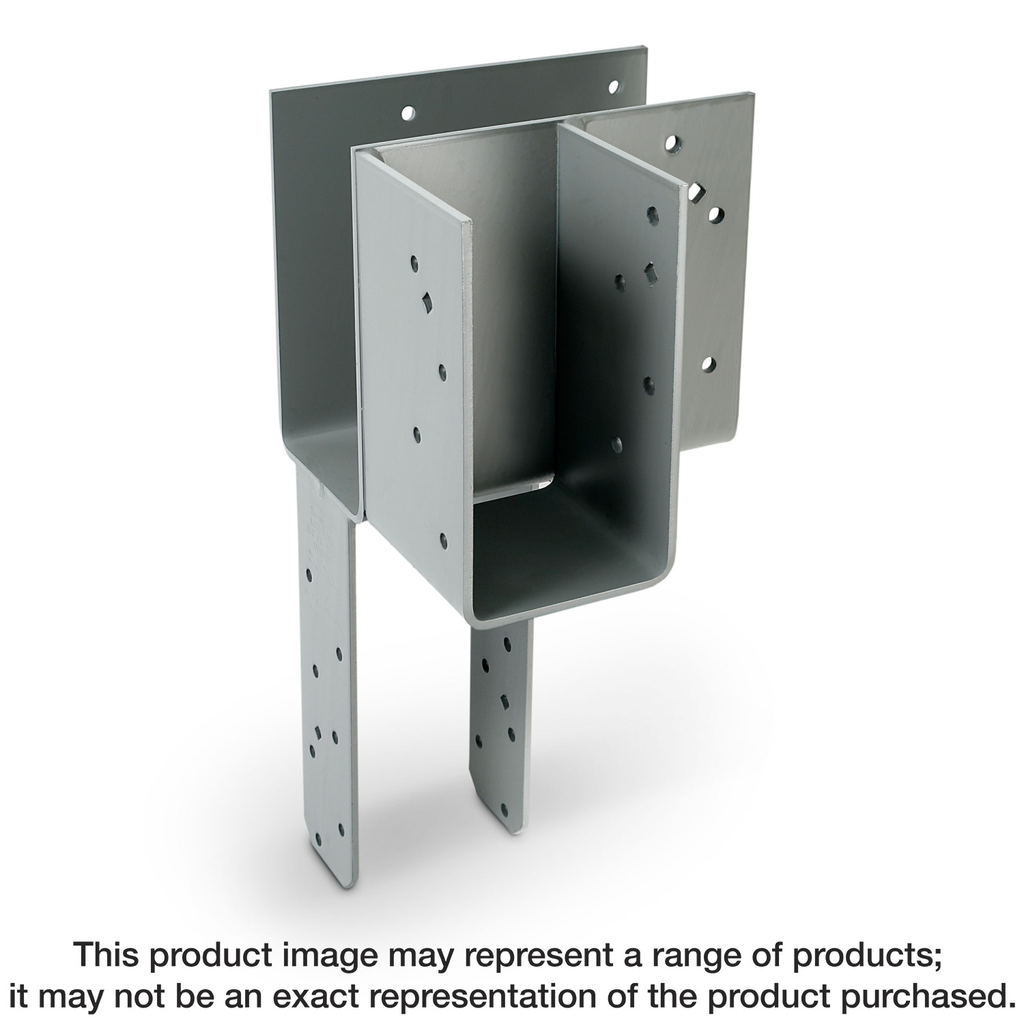

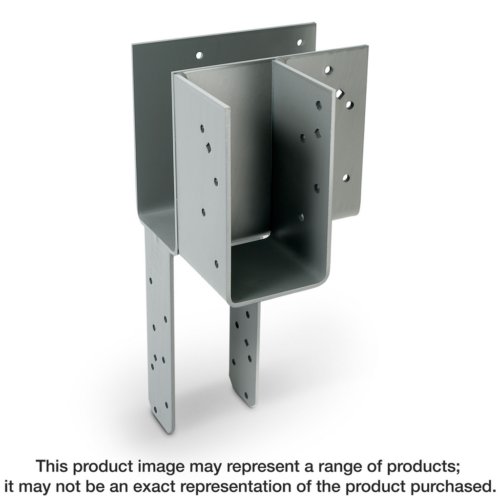

The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Additional information
| Weight | 14.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal member sizes | 4x main beam, 4x post, 4x side beam |
| Material | 7-gauge steel |
