L END COLUMN CAP (RIGHT) WITH SCREWS
$316.17

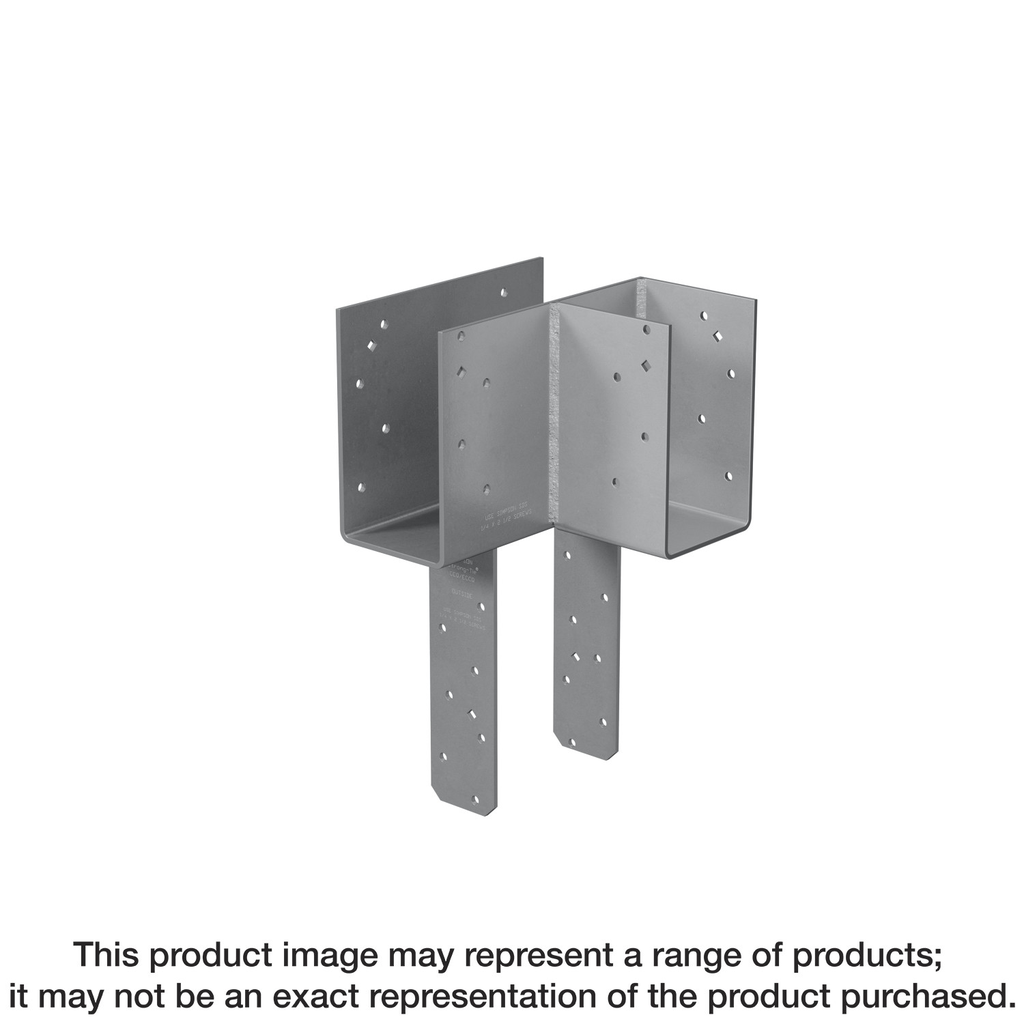

Engineered for robustness and reliability, the ECCLRQ L-Shape End Column Cap from Simpson Strong-Tie is designed specifically for use with 4x beams and posts. Crafted from durable 7-gauge steel, it features certified welds that ensure confidence in strength and load management. This end column cap is equipped with screws strategically configured to deliver high uplift design values, while its diamond holes facilitate temporary fastening during installation. Finished in a distinctive Simpson Strong-Tie gray paint, the cap is specifically configured for right-direction installations, providing a perfect fit for your structural needs. As a reminder, this product may expose users to chemicals associated with wood dust, which is recognized by the State of California as a potential health hazard.
Description
The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Additional information
| Weight | 14.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Material | 7-gauge Steel |
| Finish | Gray Paint |
