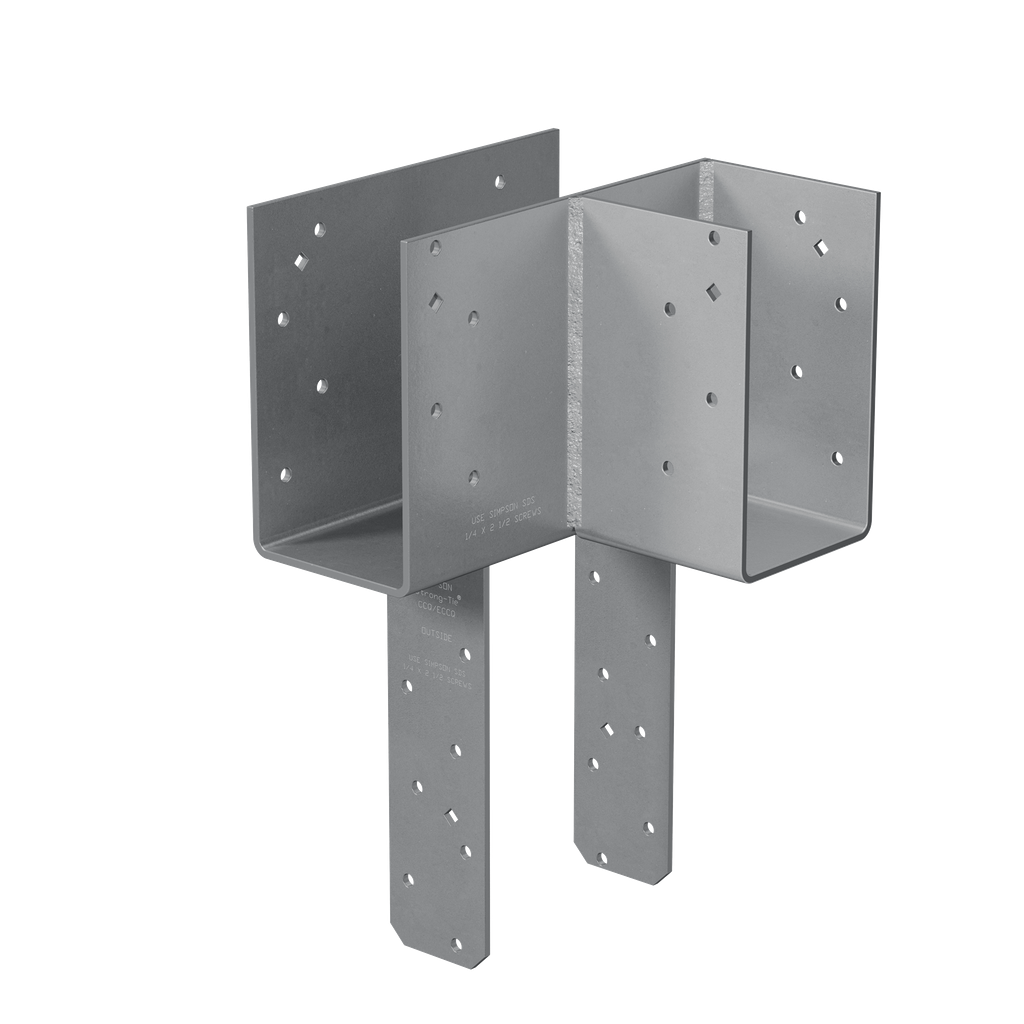

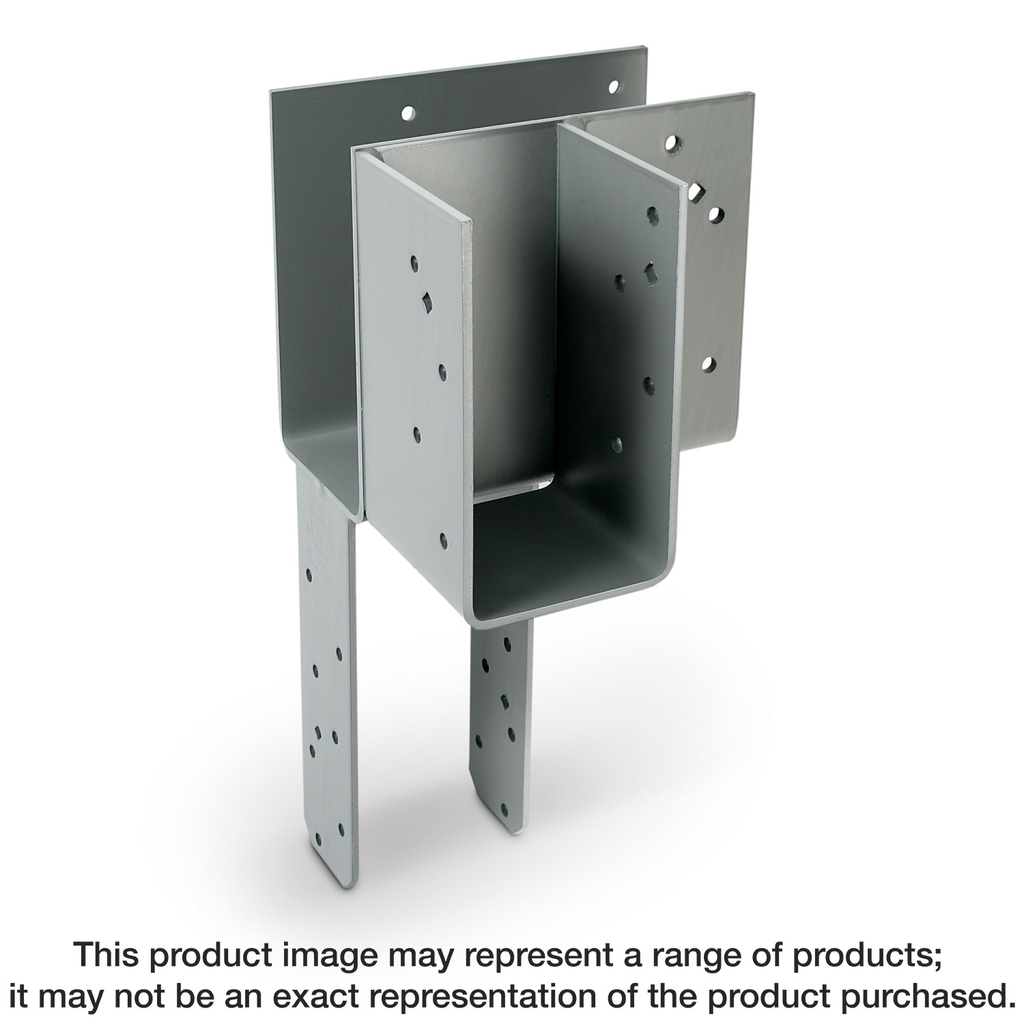

L END COLUMN CAP (RIGHT) WITH SCREWS
$413.62
Engineered for durability and reliability, the L-Shape End Column Cap from Simpson Strong-Tie is crafted from high-quality 7-gauge steel, ensuring it can provide substantial support for your structural applications. Designed specifically for use with 4x beams and 6x posts, this component features certified welds that reinforce its strength and loading capacity, making it a trustworthy choice for your construction projects. Its unique configuration of screws enhances uplift design values, while diamond holes allow for temporary fastening, further improving ease of installation. With a sophisticated gray paint finish, this end column cap not only performs well but also adds a touch of professional appeal to your structures. For applications needing a left direction, consider the alternative ECCLLQ model.
Description
The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Additional information
| Weight | 14.22 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Member Sizes | 4x main beam, 6x post, 4x side beam |
| Depth | 7.967 in |
