L-SHAPE LEFT W/DECK TAB HDG
$699.84

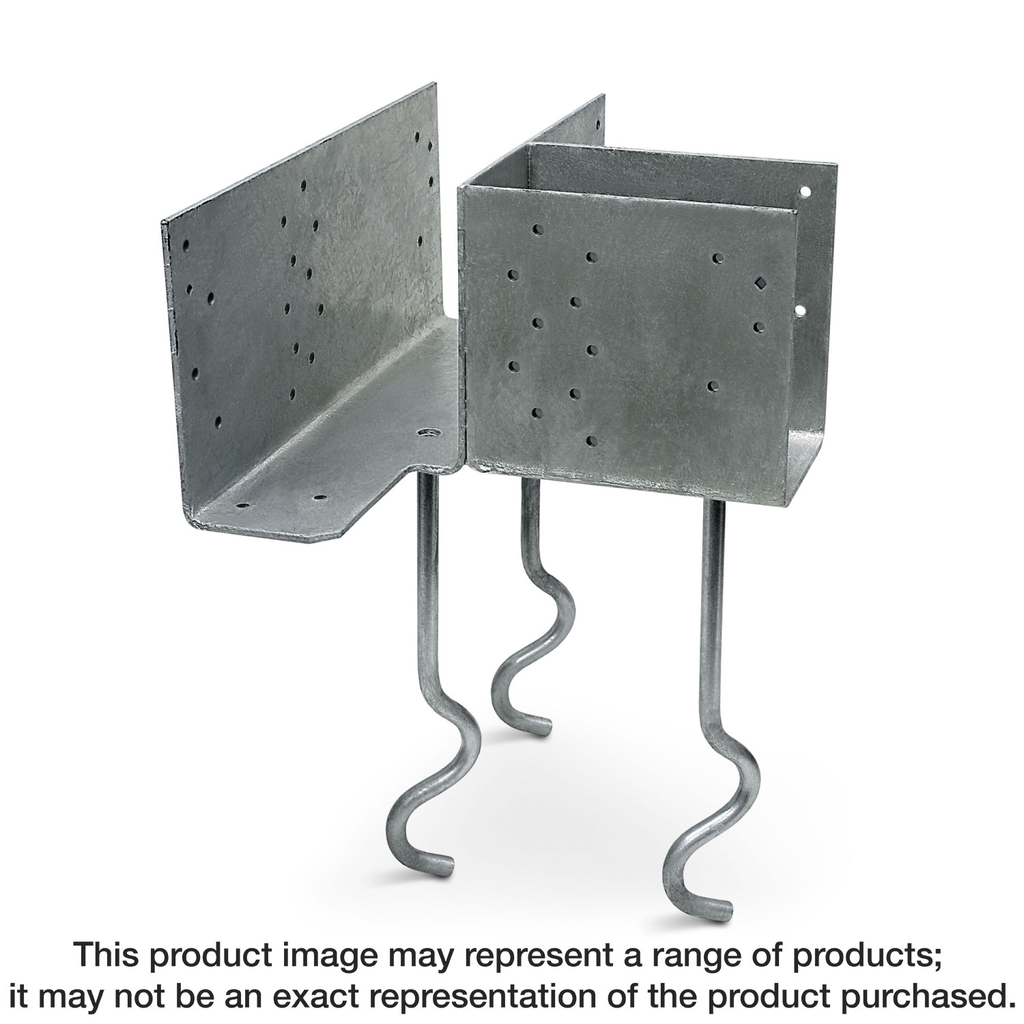

Engineered for robust structural support, the ECCLQMD™ Hot-Dip Galvanized L-Shape Embedded Column Cap is specifically designed for use with 3-5/8 inch beams, offering a reliable solution for applications where a beam needs to extend off the corner of a structure, such as in deck joist installations. Its hot-dip galvanization provides exceptional corrosion resistance, making it suitable for both exterior and treated-wood applications, ensuring longevity even in challenging environments. Constructed from durable 7-gauge steel, this left-direction cap is an essential component for creating stable and strong frameworks, while a right-direction alternative is also available to meet diverse project needs. Please note that this product may expose users to wood dust, which is known to cause cancer in California; it is advisable to take appropriate precautions during use.
Description
ECCLQM embedded column caps are designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seats and unique SSTB-style anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQMD is a variation that incorporates an additional seat to support a third member at the corner connection.
Additional information
| Weight | 33 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Main channel length | 16-1/2 in. |
| Main channel width | 3-5/8 in. |
