LATERAL TRUSS ANCHOR
$4.51

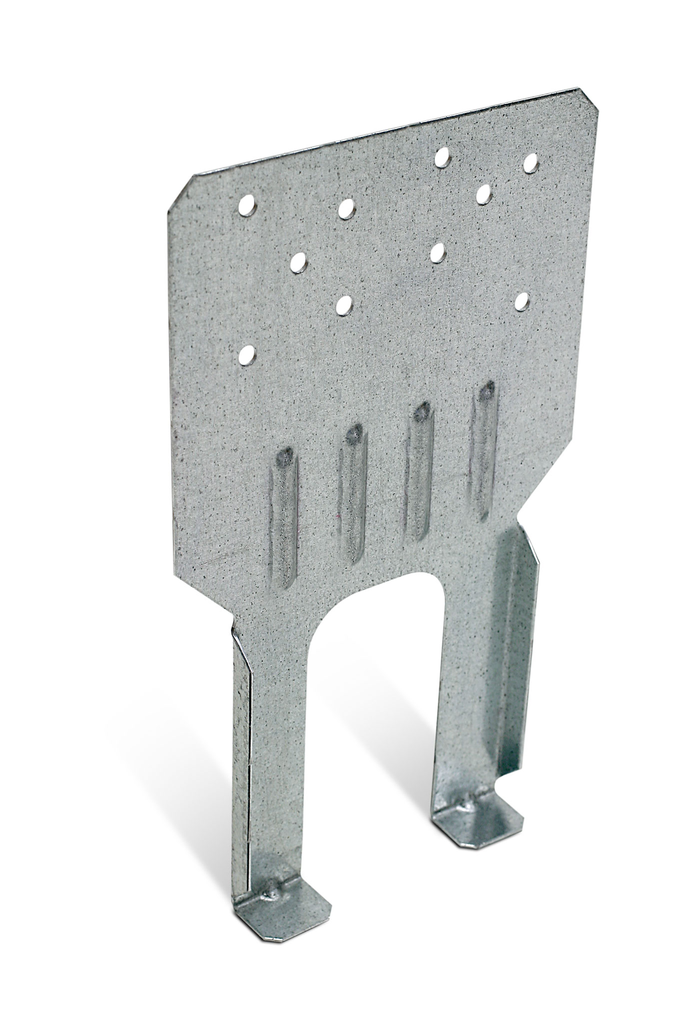

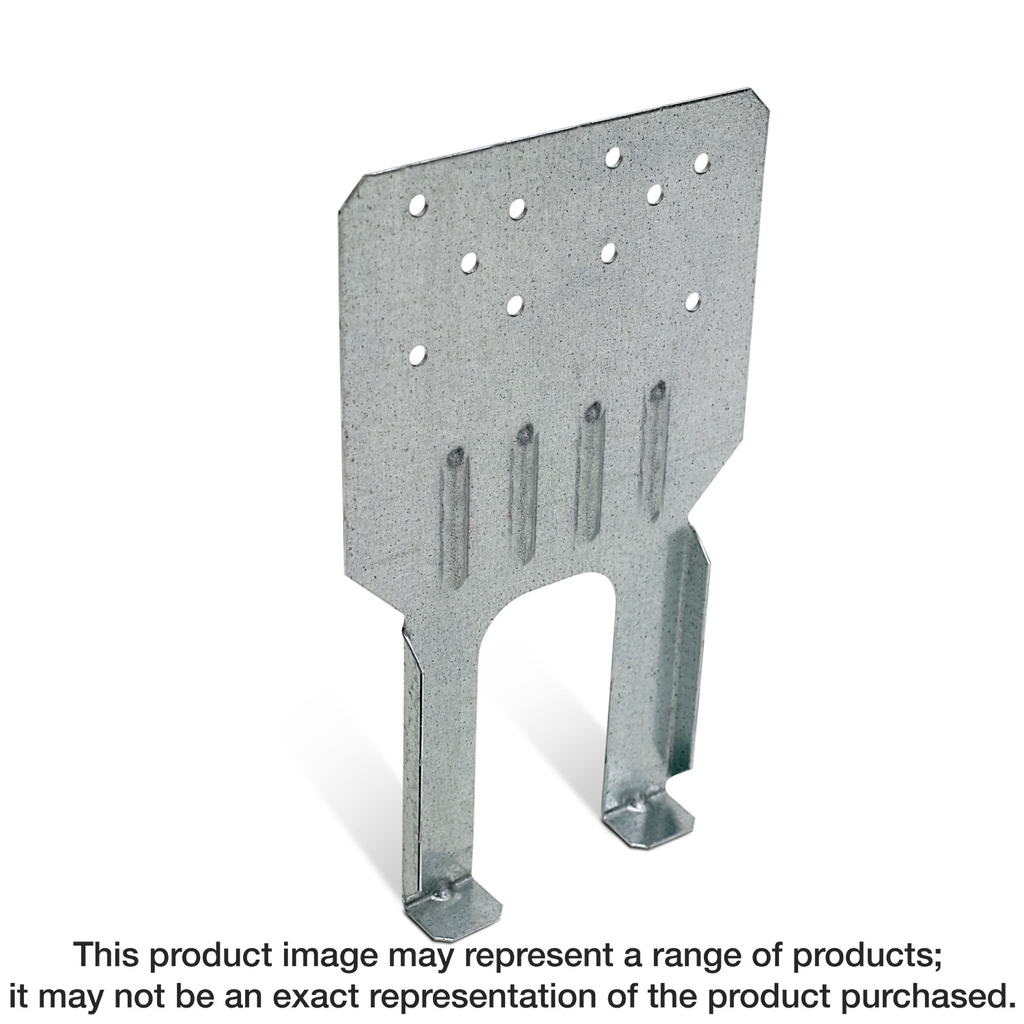

The LTA lateral truss anchor from Simpson Strong-Tie is engineered to provide reliable anchoring for trusses, whether they run parallel or perpendicular to the wall. Constructed from robust 18-gauge steel and finished with a galvanized coat for superior corrosion resistance, this anchor promises durability and longevity in various building applications. Its thoughtful design includes an embedded portion that facilitates easy positioning in conjunction with rebar, while the stamped embedment line ensures a straightforward installation process, minimizing the chance of errors. This anchor is an essential component for ensuring structural integrity in your construction projects.
Description
The LTA2 is an embedded truss anchor for grout-filled CMU and concrete walls that develops high loads with shallow embedment. Designed for 2×4 minimum truss chords, the LTA2 resists uplift and lateral loads parallel and perpendicular to the wall with a minimum heel height requirement. Great in areas where a strap over the heel is not required. The side tab acts as a locator in the masonry block and the four embedded hooks provide for a positive bond in the concrete grout.
Additional information
| Weight | 0.41 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 4.50 in |
| Material | 18-gauge steel |
