LIGHT ADJUSTABLE JACK HANGER
$9.65

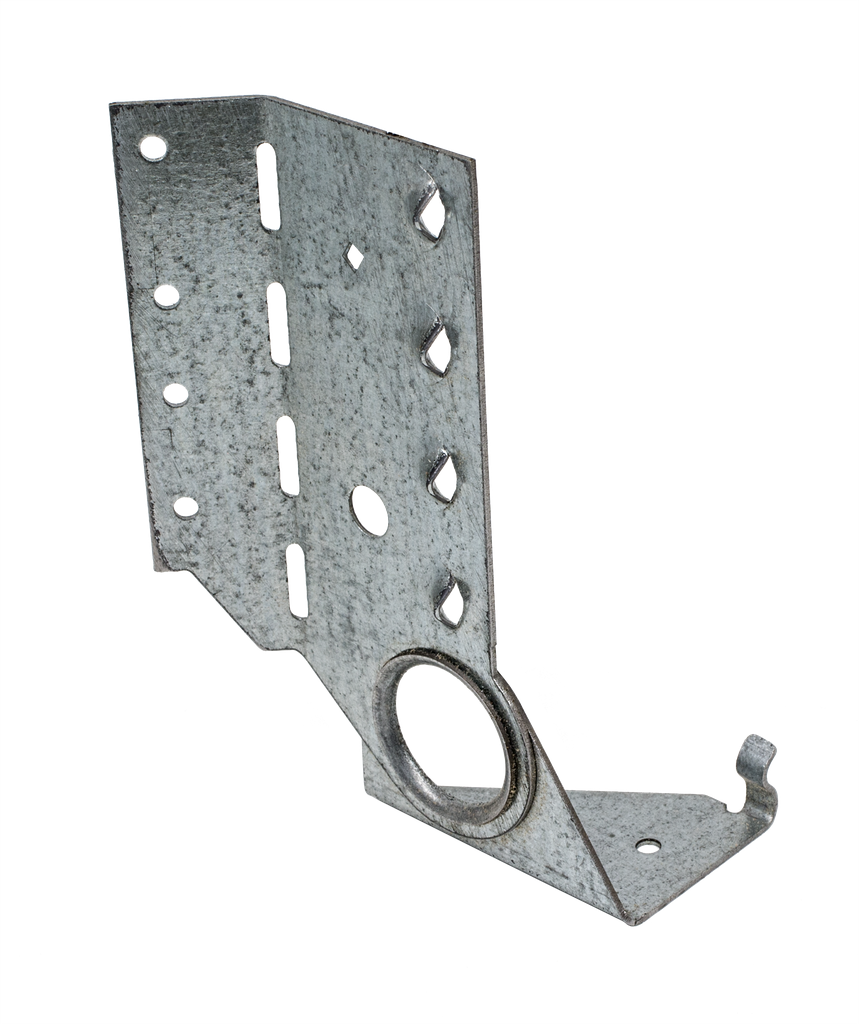

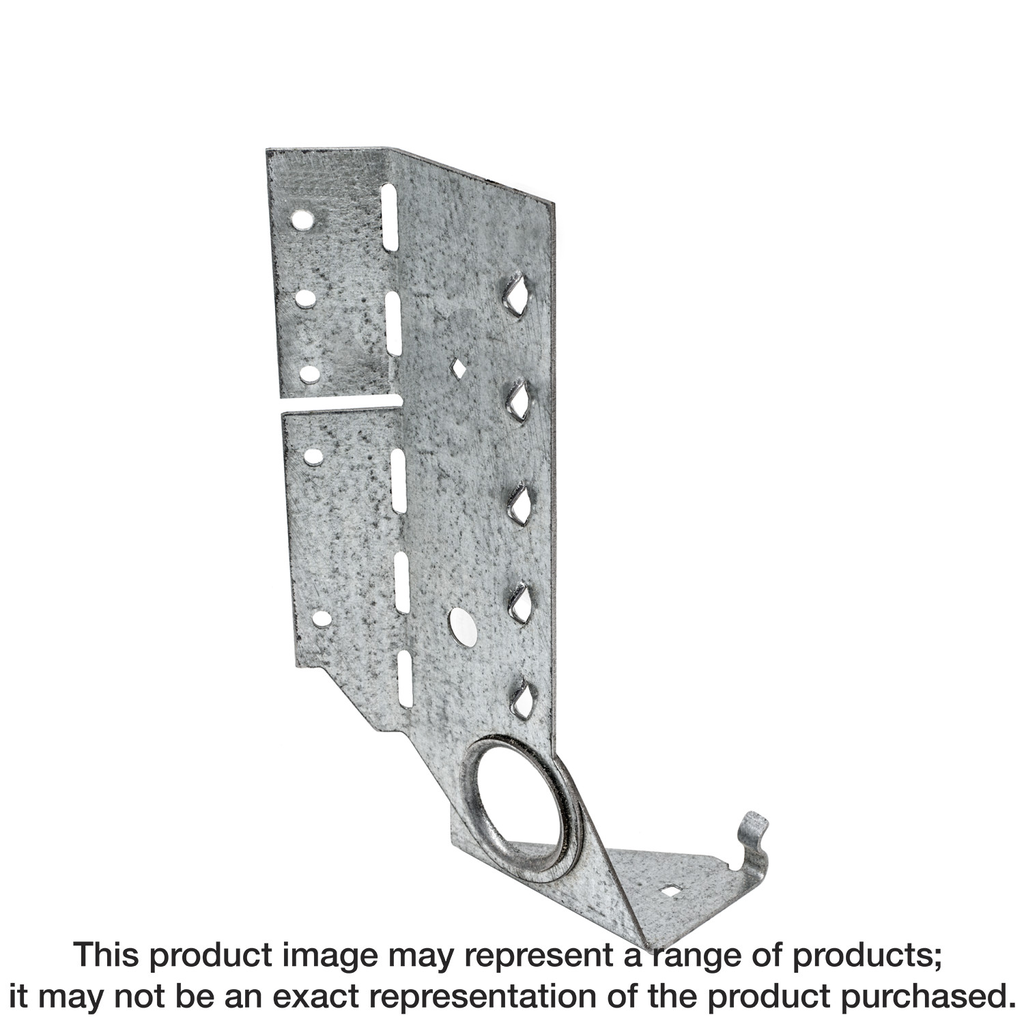

The Simpson Strong-Tie LSSJ® ZMAX® Face-Mount Adjustable Jack Hanger is engineered to provide superior support for 2×6 joists, allowing for versatile installation on sloped roofs. With a robust construction from 18-gauge steel, this hanger features ZMAX galvanization, ensuring enhanced corrosion resistance that is crucial for exterior and treated-wood applications. Its innovative design includes a swivel seat that not only adjusts easily but also increases support, accommodating roof pitches from 0:12 to 12:12. This allows for effortless installation from one side, with all fastener holes readily accessible, making it an ideal choice for retrofit applications where reliability and ease of use are paramount. The included seat grip simplifies the setting process, ensuring a secure fit for demanding construction tasks.
Description
The innovative LSSJ® is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJ’s header flange allows for easy skew adjustment, from 0° to 45°. It ships pre-bent at 45° so is ready to place for most typical applications. Skewed left.
Additional information
| Weight | 0.29 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 2.4052 in |
| Width | 1-9/16 in |
