LIGHT ADJUSTABLE JACK HANGER
$18.35

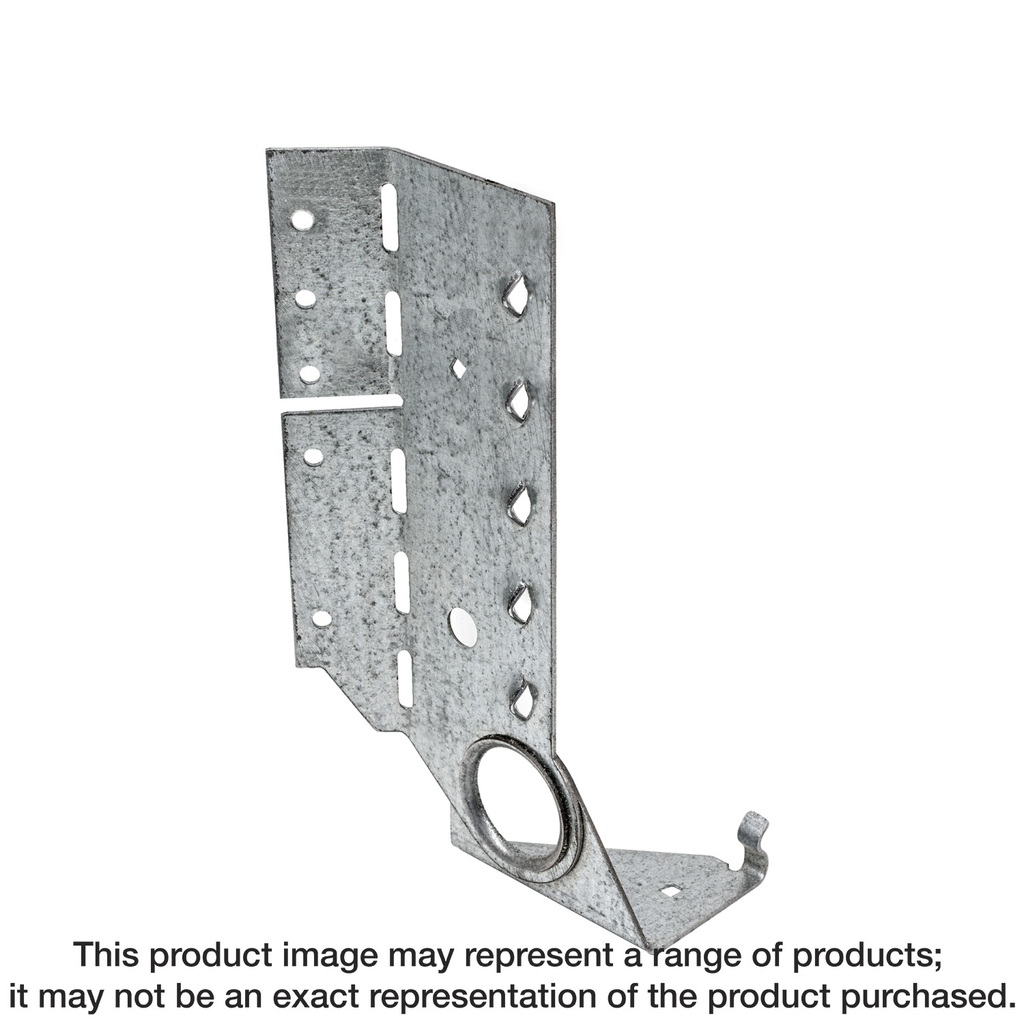

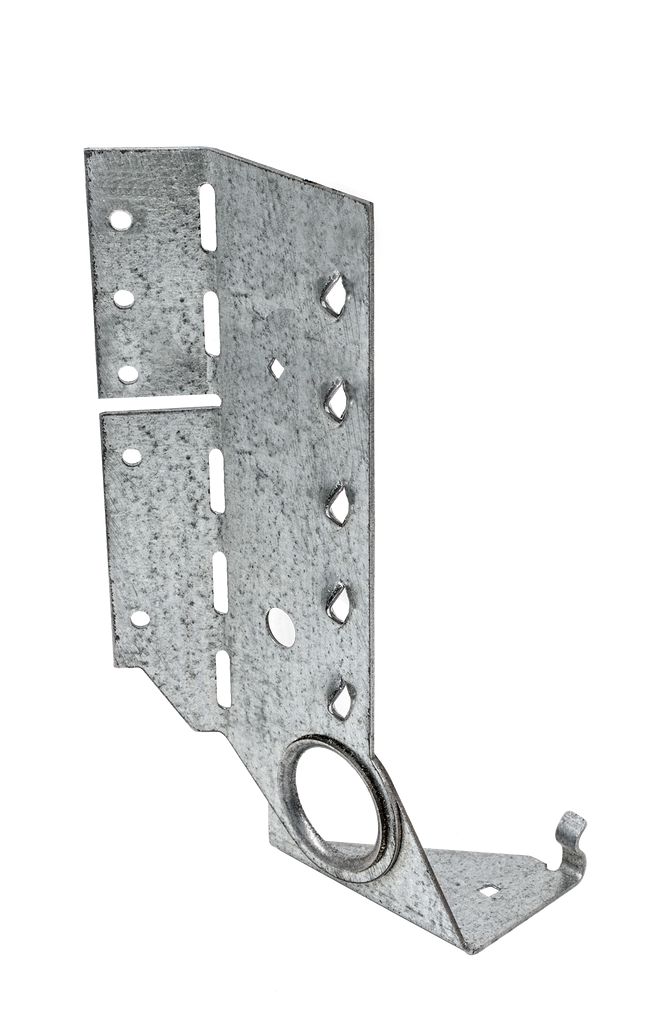

Engineered for versatility and strength, this adjustable light slopeable/skewable jack hanger from Simpson Strong-Tie is designed to support 2×8 joists effectively. Its 18-gauge steel construction ensures durability, while the innovative seat grip allows for quick and easy installation, accommodating roof pitches from 0:12 to 12:12. The swivel seat provides enhanced stability, enabling higher load capabilities than typical fasteners alone, making it an ideal choice for both new constructions and retrofit projects. With ZMAX galvanization for superior corrosion resistance, this hanger is well-suited for use in exterior and treated-wood applications, ensuring long-lasting structural integrity.
Description
The innovative LSSJ® is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJ’s header flange allows for easy skew adjustment, from 0° to 45°. It ships pre-bent at 45° so is ready to place for most typical applications.
Additional information
| Weight | 0.34 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Roof Pitch Range | 0:12 to 12:12 |
| Joist Size | 2×8 |
