LIGHT RAFTER U HANGER – SLOPEABLE 2X10
$12.45

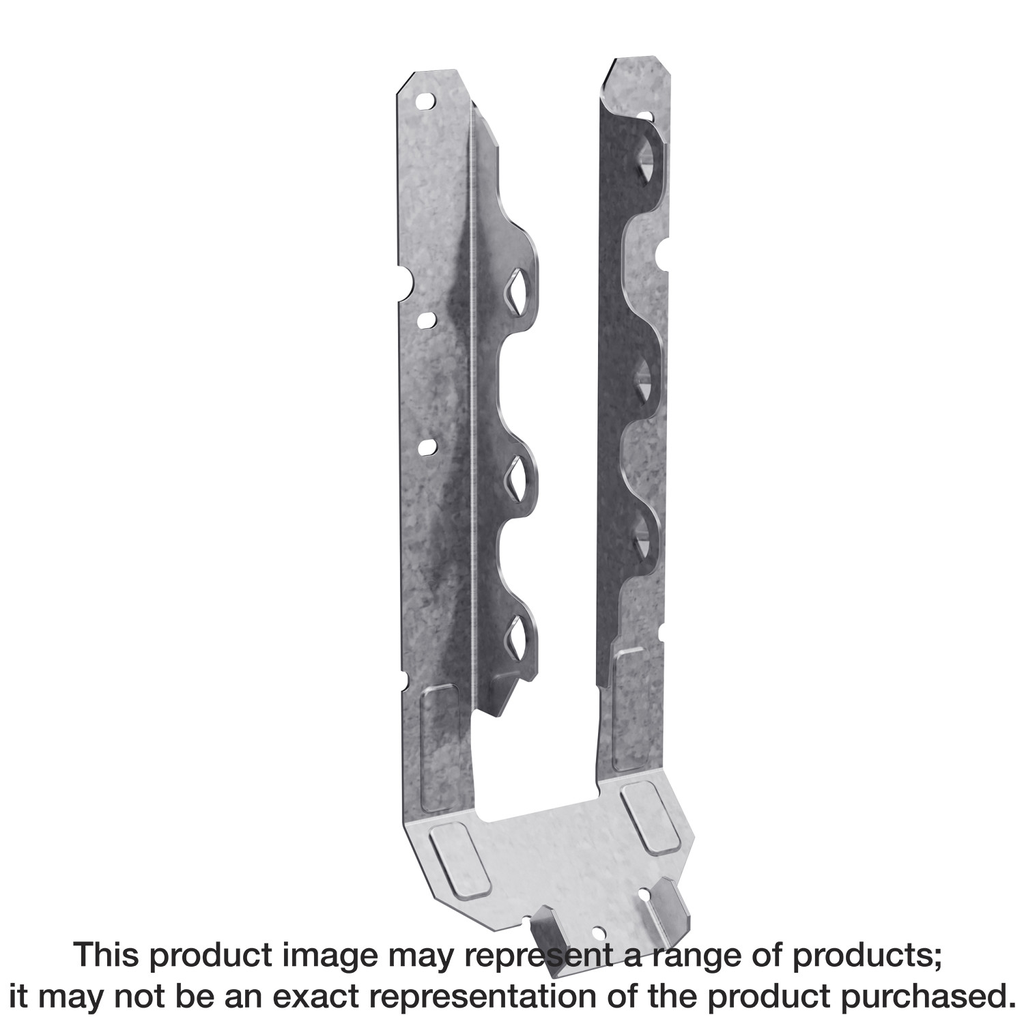

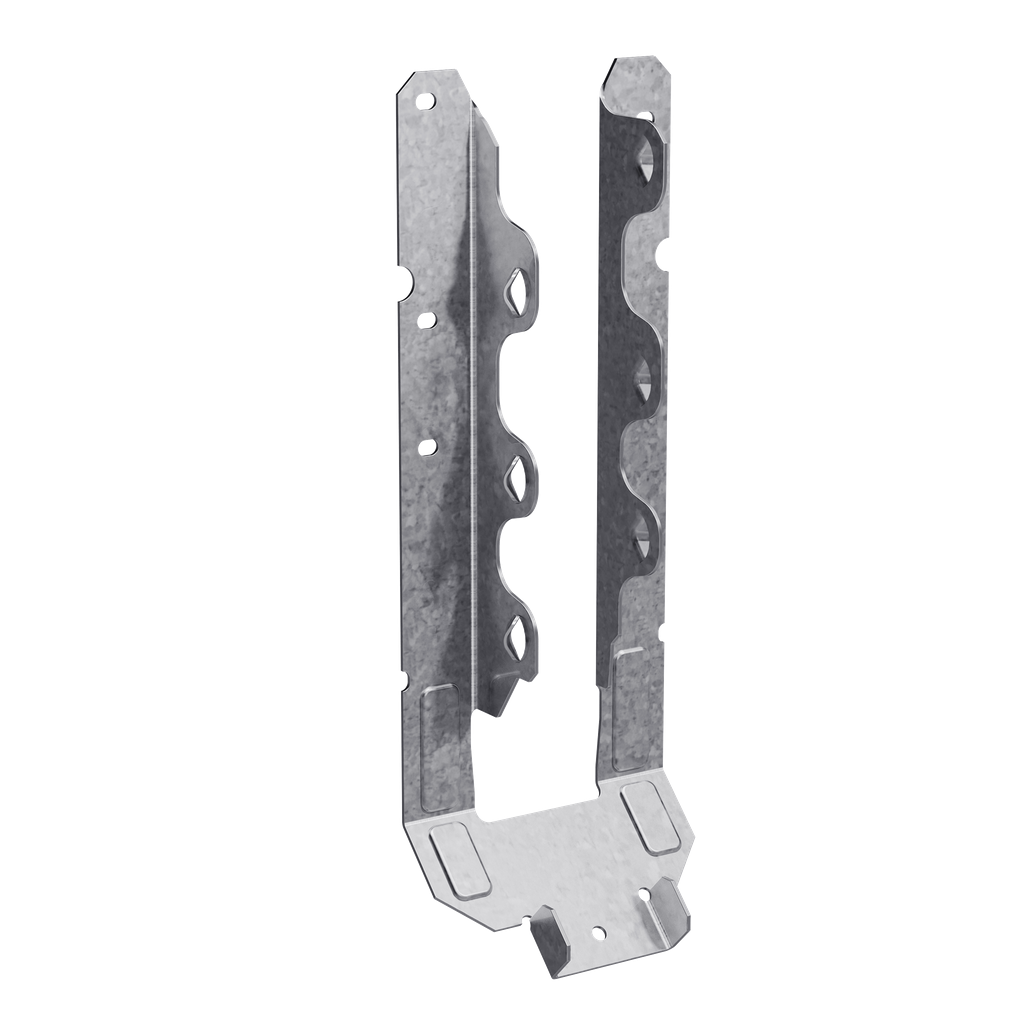

Constructed from 18-gauge steel, this slopeable rafter hanger is engineered for optimal support and durability in both residential and commercial roofing applications. Designed for nominal rafter sizes of 2×8, 2×10, and 2×12, it features ZMAX© galvanization, which provides enhanced corrosion resistance, making it suitable for both exterior and treated-wood environments. With its versatility to accommodate roof pitches ranging from 0:12 to 14:12, the hanger’s open design allows for easy field adjustments, ensuring a seamless fit in retrofit or new construction projects alike. Additionally, strategic placement of the face fasteners enables the rafter’s bottom to hang gracefully below the ridge beam, offering both functionality and ease of installation.
Description
The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
Additional information
| Weight | 0.44 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Rafter Size Compatibility | 2×8, 2×10, 2×12 |
| Roof Pitch Range | 0:12 to 14:12 |
