LIGHT RAFTER U HANGER – SLOPEABLE 2X6
$7.67

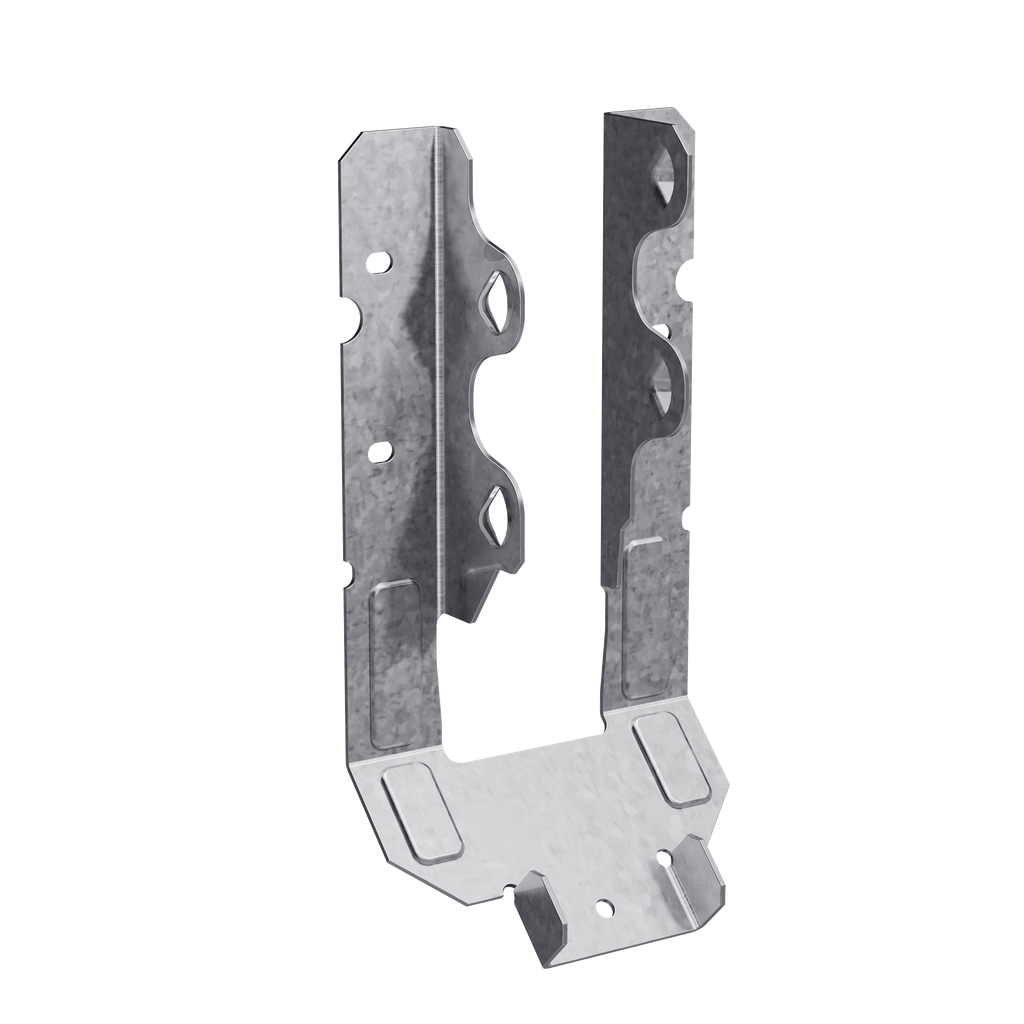

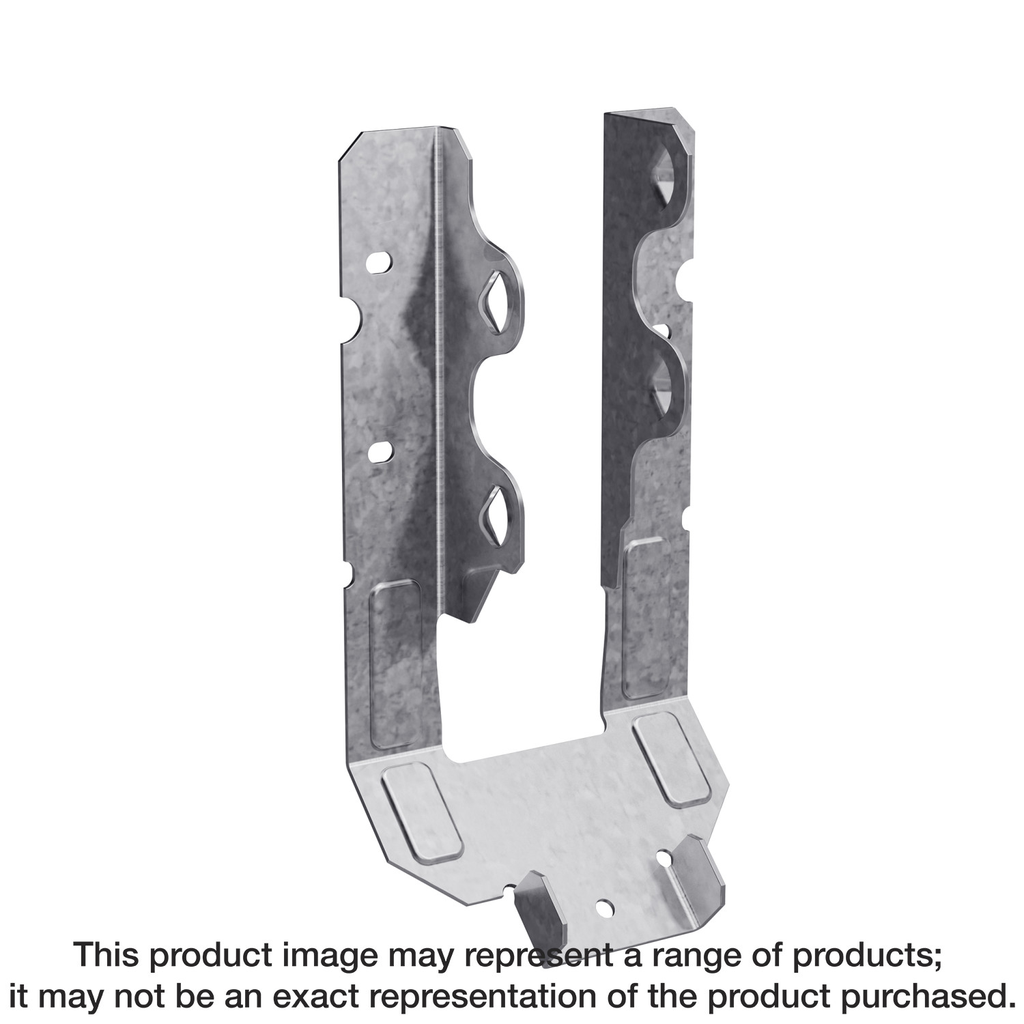

The LRU26Z LRUZ ZMAX® Galvanized Slopeable Light Rafter U Hanger by Simpson Strong-Tie is a reliable solution for accommodating varying roof pitches from 0:12 to 14:12. Engineered from robust 18-gauge steel, this hanger offers the flexibility needed for both new construction and retrofit applications, featuring an open design that allows for easy field adjustments of the slope. Designed specifically for nominal rafter sizes of 2×6 and 2×8, this product ensures that the fasteners are strategically placed, enabling the bottom of the rafter to hang below the ridge beam for added versatility. With ZMAX galvanization providing exceptional corrosion resistance, it is particularly well-suited for exterior and treated-wood applications, making it a durable choice for any roofing project.
Description
The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Slope Adjustment | Up to 49° (14:12) |
| Roof Pitch Range | 0:12 to 14:12 |
