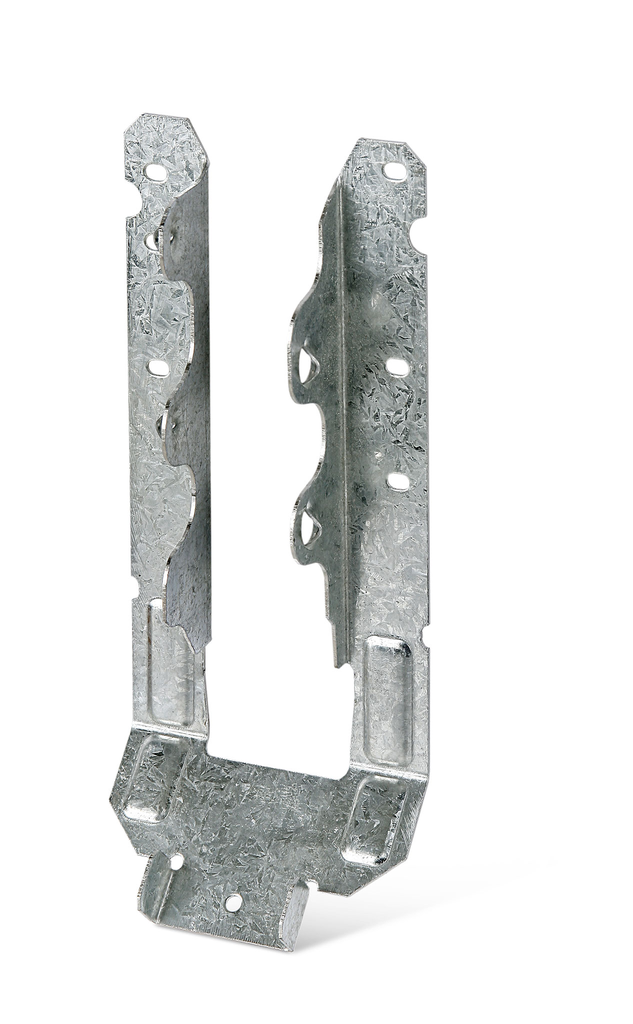

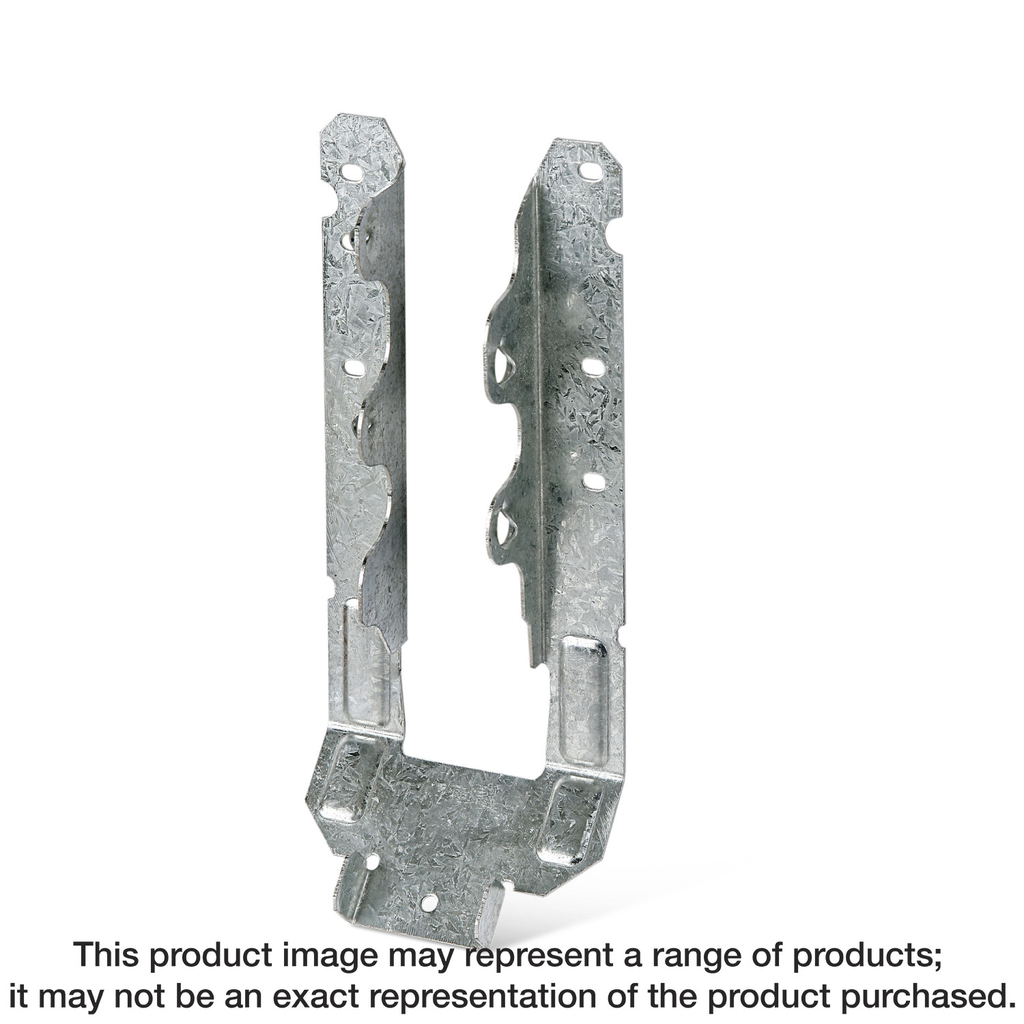

LIGHT RAFTER U HANGER – SLOPEABLE 2X8
$10.36
Engineered for versatility in both retrofit and new construction applications, the LRU28Z Light Rafter U Hanger provides a reliable solution for supporting rafter sizes of 2×6, 2×8, and 2×10. Crafted from robust 18-gauge steel and coated with ZMAX galvanization, it offers significant resistance to corrosion, making it an ideal choice for exterior and treated-wood projects. The open design facilitates field adjustments for slopes ranging from 0:12 to 14:12, while its innovative fastener positioning allows for the rafter’s bottom to extend below the ridge beam, providing added flexibility in installation. This hanger not only meets practical structural needs but also enhances the adaptability of roofing designs.
Description
The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
Additional information
| Weight | 0.38 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Slope Range | 0:12 to 14:12 |
| Maximum Slope Angle | 45°, up to 49° at 85% load |
