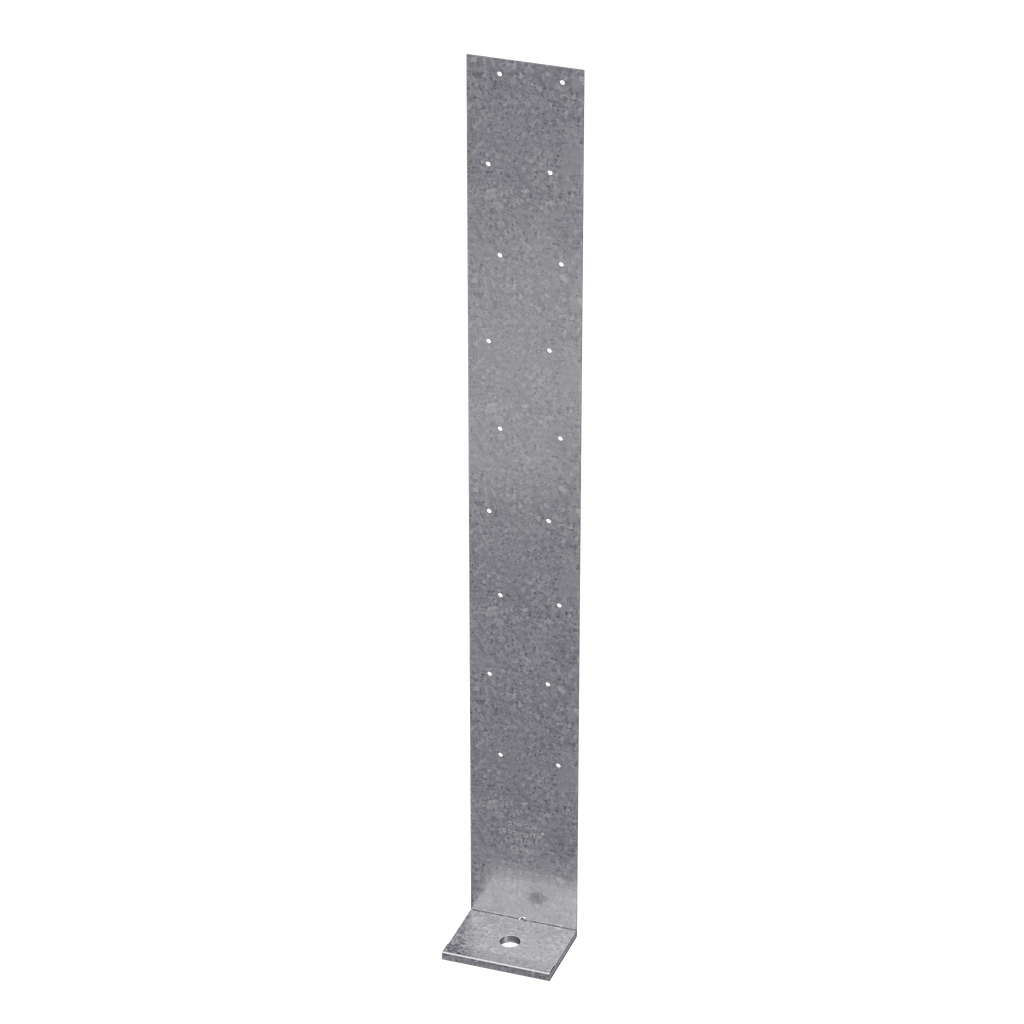

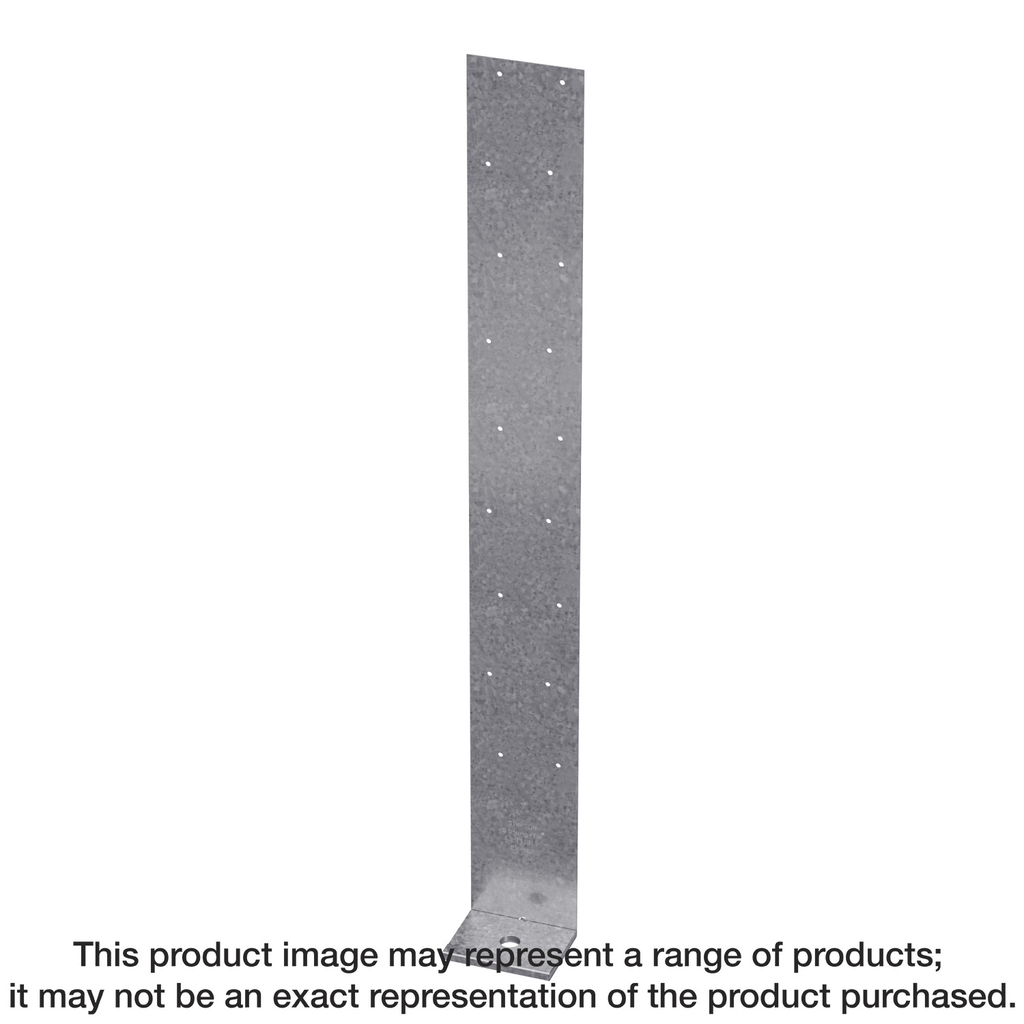

LIGHT TENSION TIE
$100.51
Crafted for versatility and reliability, this light tension tie from Simpson Strong-Tie is an essential component for any framing project. Made from durable 18-gauge steel and galvanized for added corrosion resistance, it stands up to harsh conditions while maintaining structural stability. The low-profile seat is designed to minimize visibility, allowing for a cleaner aesthetic, while the flexible nailing patterns accommodate various purlin, rafter, and truss types. Additionally, it has been tested with different anchor bolt diameters to ensure compliance with code-required applications based on substrate, making it a robust choice for both professional and DIY builders.
Description
The Simpson Strong-Tie® LTT is a solution for resisting tension loads when used to attach wood to concrete or masonry walls. This light tension tie is designed for horizontal purlin applications and may also be used for vertical holdown applications. For LTT tension tie applications with unreinforced concrete masonry, 3/4-in. post-installed anchor bolts are commonly used. The LTTI31 model, for wood-chord open-web truss attachments, features a built-in load transfer plate washer for increased performance. It may be installed vertically on a minimum 2×6 stud with nails.
Additional information
| Weight | 2.35 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 31 in |
| Width | 3.75 in |
