LIGHT TENSION TIE PURLIN
$23.55

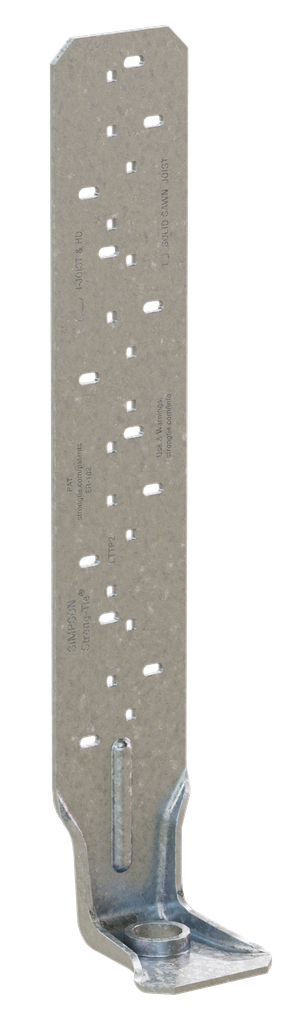

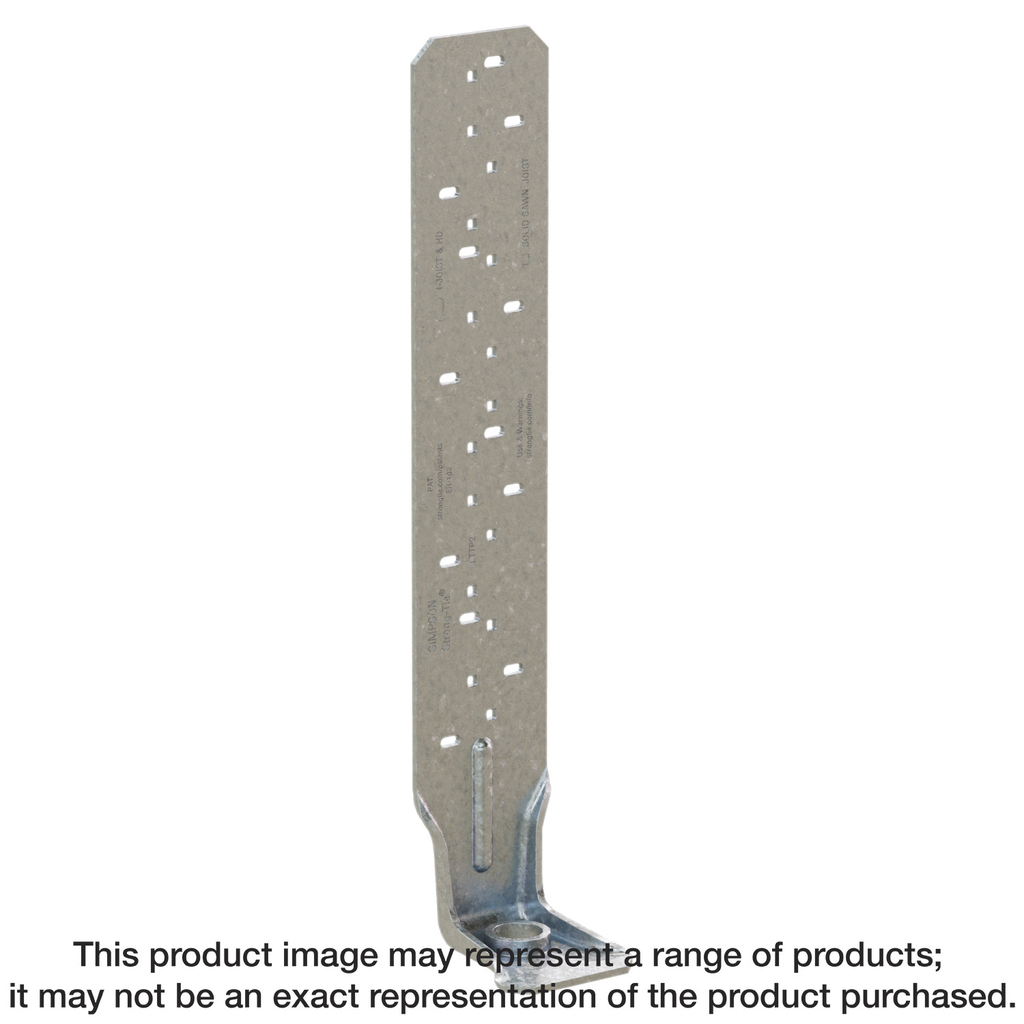

The LTTP2 Light Tension Tie from Simpson Strong-Tie is a robust solution crafted from 10-gauge steel, ensuring exceptional strength and durability for a variety of construction applications. Featuring nailing patterns designed to accommodate an assortment of purlin, rafter, and truss types, this tie offers versatility in structural connections. Its galvanized finish provides enhanced corrosion resistance, making it suitable for various environments, while the low-profile seat minimizes visibility, maintaining a clean aesthetic in your structural projects. Designed to meet code-required applications, it has been rigorously tested with different anchor bolt diameters, guaranteeing reliability and performance in your builds.
Description
The Simpson Strong-Tie® LTT is a solution for resisting tension loads when used to attach wood to concrete or masonry walls. This light tension tie is designed for horizontal purlin applications and may also be used for vertical holdown applications. For LTT tension tie applications with unreinforced concrete masonry, 3/4-in. post-installed anchor bolts are commonly used. The LTTP2 model, for wood joist attachments, features an extruded anchor bolt hole to accommodate 1/2-in., 5/8-in. and 3/4-in. bolt diameters. It also features two separate nailing patterns: obround holes spaced 3 in. apart for I-joist purlins and square holes spaced to accommodate the narrow face of 2x solid-sawn purlins. The LTTP2 may be installed vertically on the wide face of a minimum 2×4 stud for holdown applications and can be fastened with nails or Strong-Drive® SD Connector screws.
Additional information
| Weight | 1.68 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 14-15/16 in |
| Depth | 2.5625 in |
