MUDSILL ANCHOR FOR PANELIZED FORMS ZMAX
$2.04

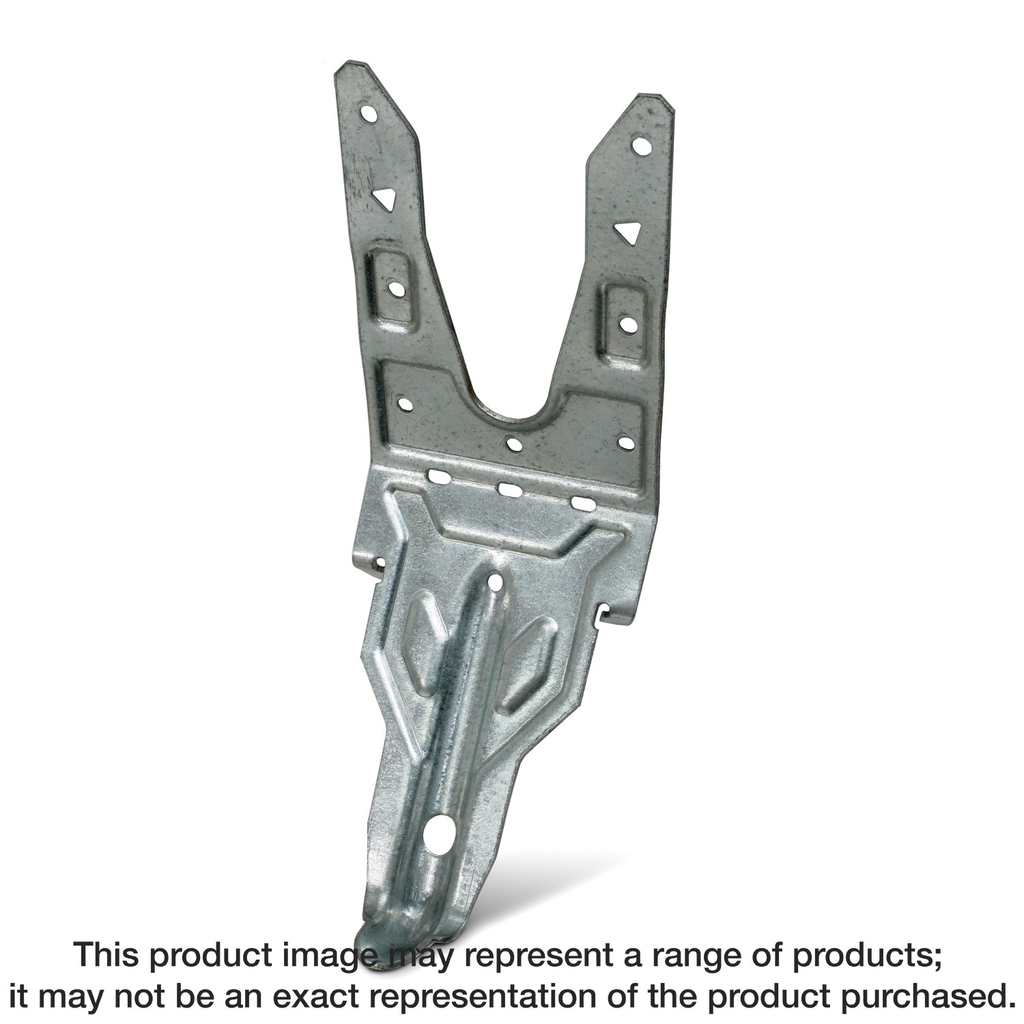

Engineered for efficiency and reliability, the MASAP™ 16-Gauge ZMAX® Galvanized Mudsill Anchor from Simpson Strong-Tie is an innovative solution for securing panelized forms. Its design allows for quick attachment to concrete forms, streamlining the installation process and eliminating costly labor associated with drilling plates and aligning holes. This anchor’s flat profile prevents interference with prefabricated walls, reducing the need for modifications and minimizing the chances of needing retrofits due to misplaced anchor bolts. Crafted from durable 16-gauge steel and featuring ZMAX® galvanization, it offers enhanced corrosion resistance, making it ideal for use in exterior and treated-wood applications.
Description
Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchor provides even greater load-carrying capacity alternative for 5/8-in. and 1/2-in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3-in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available — the standard MASA for installation on standard forms and the MASAP for panelized forms.
Additional information
| Weight | 0.31 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in |
| Gauge | 16-gauge |
