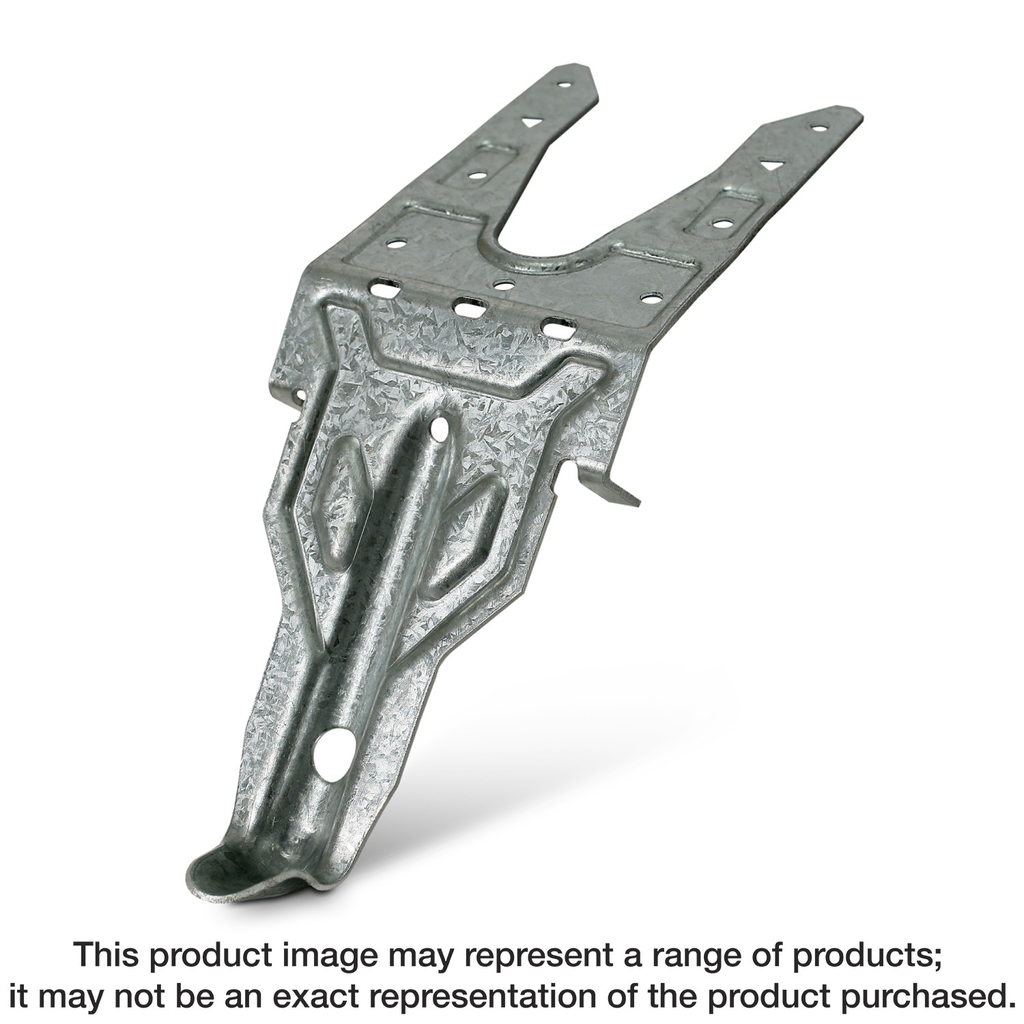

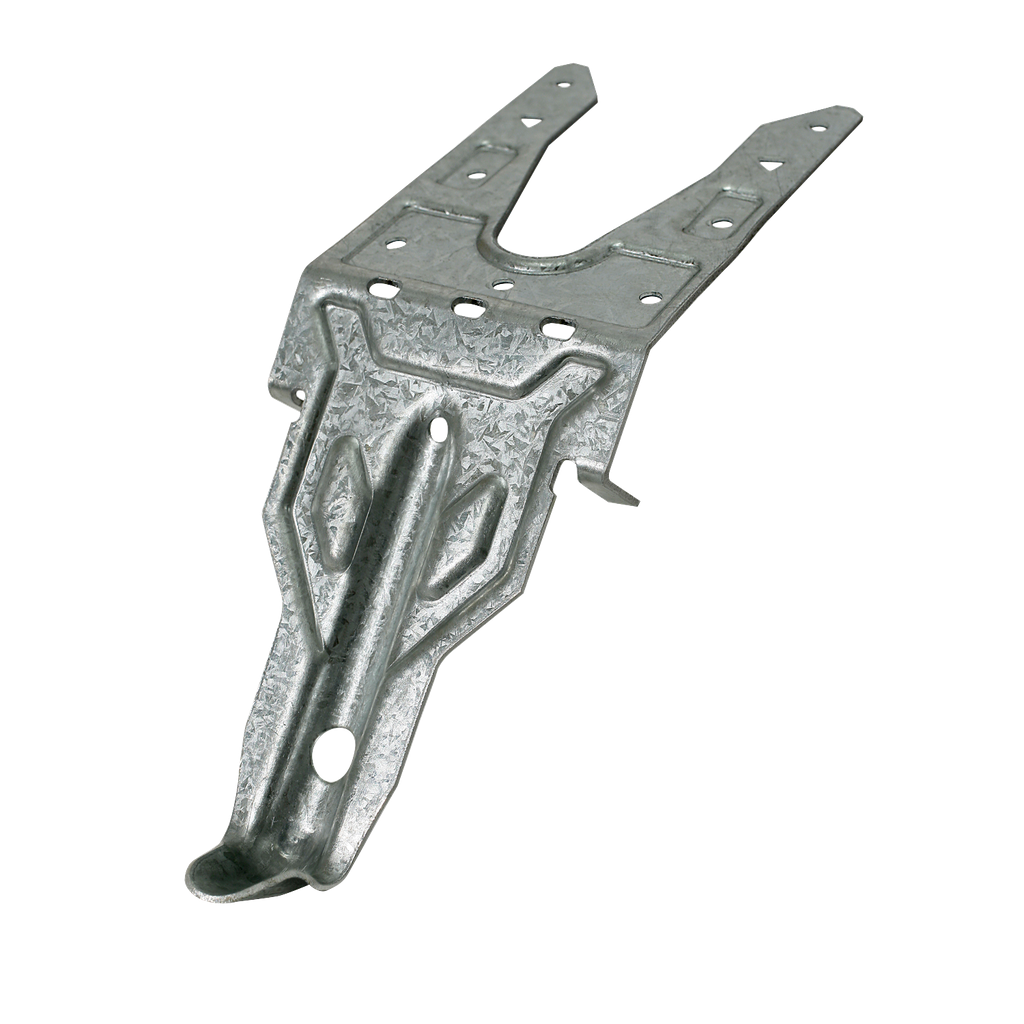

MUDSILL ANCHOR FOR STANDARD FORMS
$1.64
Engineered for efficiency, the MASA 16-Gauge Galvanized Mudsill Anchor from Simpson Strong-Tie is designed to simplify your construction projects and enhance structural integrity. Constructed from durable 16-gauge steel and coated with G90 galvanization, this anchor provides robust corrosion resistance for long-lasting performance. Its innovative flat design allows for easy attachment to concrete forms, streamlining installation without the need for labor-intensive drilling or modifications. With specific spacing requirements, this anchor reduces the likelihood of future retrofitting due to misplaced bolts, ensuring a secure and reliable foundation for your building needs.
Description
Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchor provides even greater load-carrying capacity alternative for 5/8-in. and 1/2-in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3-in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available — the standard MASA for installation on standard forms and the MASAP for panelized forms.
Additional information
| Weight | 0.31 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Minimum End Distance | 4 in |
| Minimum Center-to-Center Spacing | 8 in |
