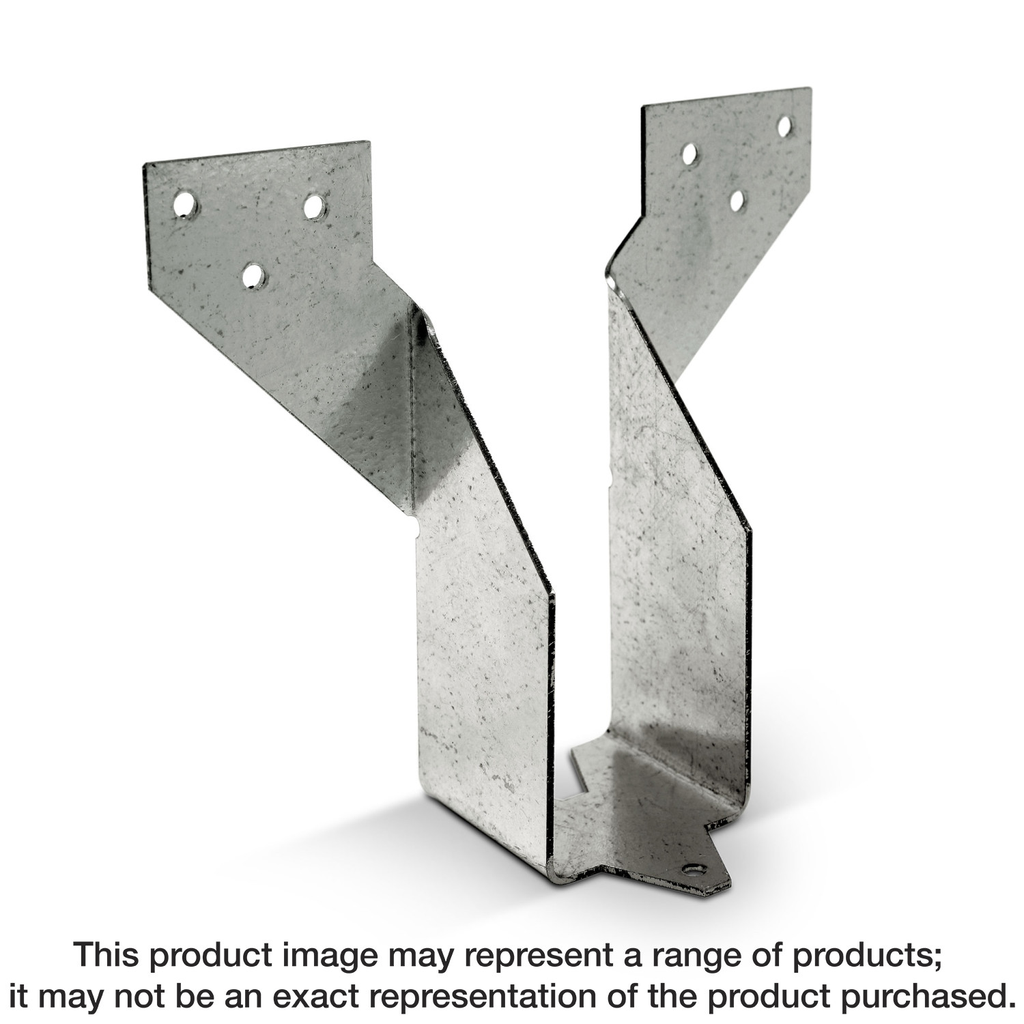

RETRO-FIT JOIST HANGER FOR NAILER Z-MAX
$43.56
Crafted from robust 16-gauge steel, the NRU26Z NRUZ ZMAX® Galvanized Retrofit Hanger is engineered to provide reliable support for 2×6 joists in both standard and challenging conditions. Enhanced with ZMAX galvanization, it offers exceptional corrosion resistance, making it suitable for use in exterior applications or with treated wood, ensuring longevity and performance over time. When properly installed with a maximum gap of 1/8 inch between the original hanger and the purlin, this retrofitting solution not only meets but exceeds the load capacities of several other hanger series from Simpson, making it an outstanding choice for securing your structural projects effectively.
Description
The NRUZ series of retrofit hangers is designed for use on nailers on steel trusses. It is designed specifically to fit around existing Simpson Strong-Tie® panelized roof hangers such as the F or HFN series. In some cases, existing panelized roof hangers may need replacement due to excessive gapping, damage incurred during field erection or corrosion from roof leaks or condensation. The NRUZ allows you to quickly and effectively match the capacity of these hangers without having to remove the original connectors or disassemble the roof.
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal joist size | 2×6 |
| Depth | 6.0555 in |
