RIDGE RAFTER
$2.31

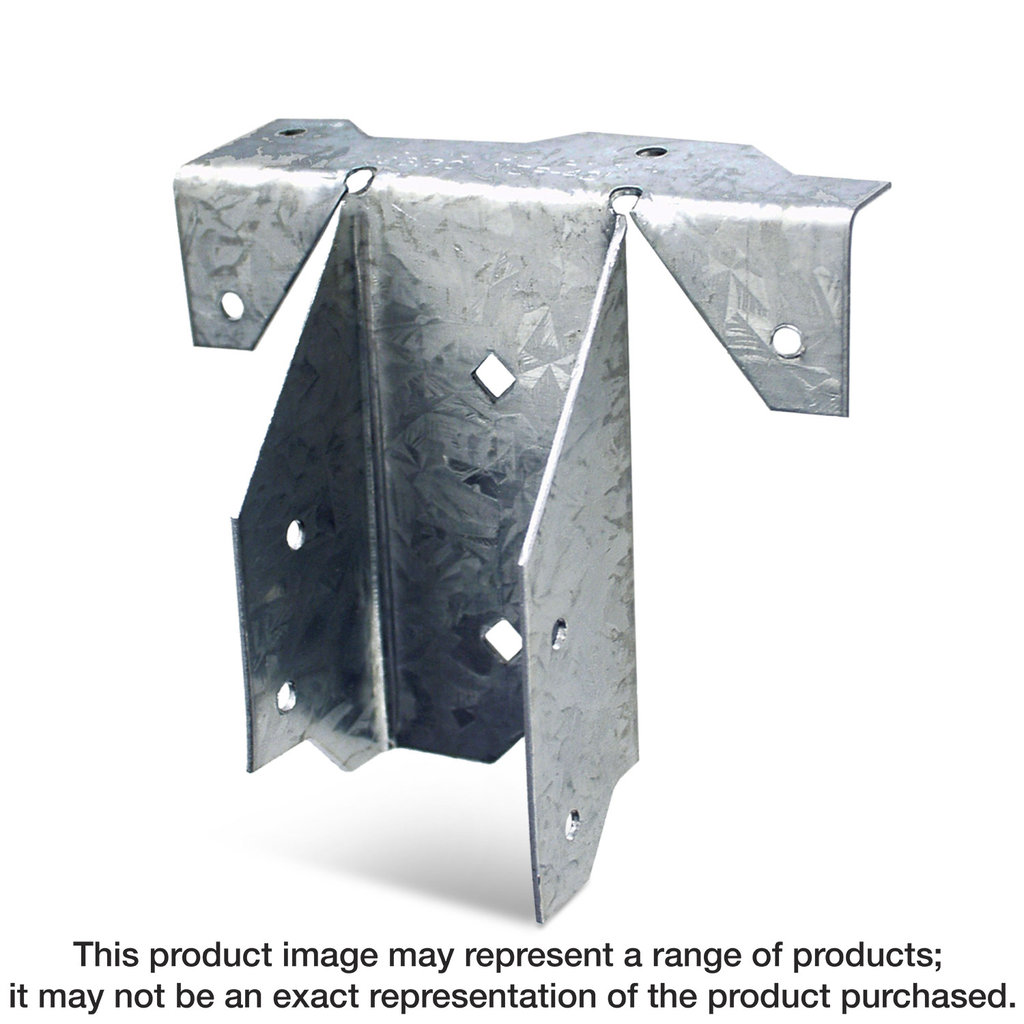

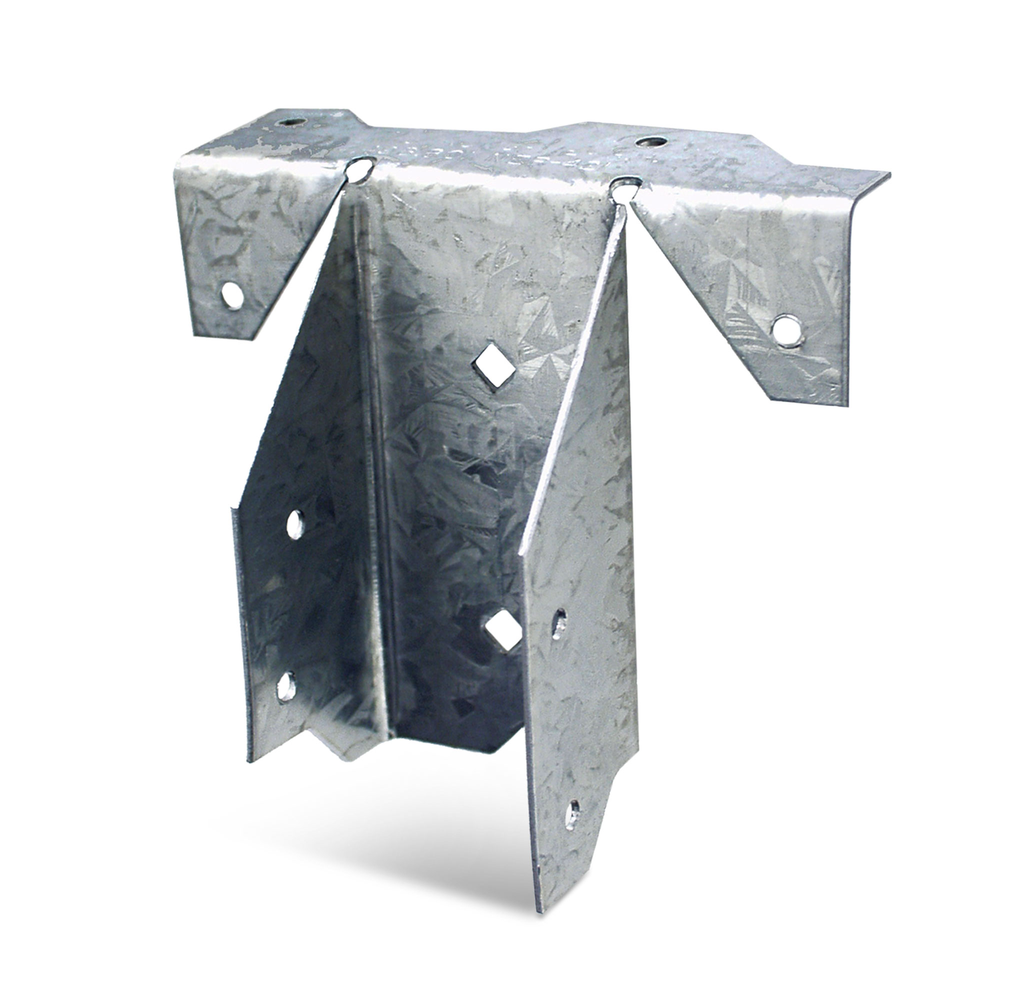

The Simpson Strong-Tie RR Galvanized Ridge Rafter Connector is designed to provide efficient support for roof structures involving rafter slopes of up to 30 degrees. Crafted from durable 18-gauge steel and finished with a G90 galvanized coating, this connector not only enhances structural integrity but also offers substantial protection against corrosion. Its innovative top flange interlocks when used in pairs, ensuring that rafters remain aligned correctly, making installation significantly easier and more robust compared to traditional toenailing or screw fastening methods. Perfect for those looking to streamline their construction process while enhancing the overall strength of their roofing systems, this connector is a reliable choice for securing 2×6 rafter dimensions.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The RR ridge rafter connector provides a connection between a rafter and the ridge of a roof.
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Min. Rafter Size | 2×6 |
| Maximum Rafter Slope | 30° |
