SDS MAX QUAD BIT 1-1/4X23
$101.72

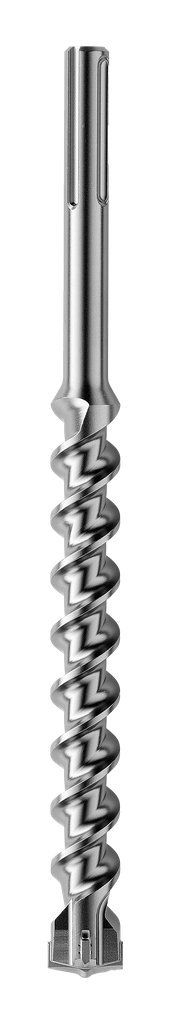

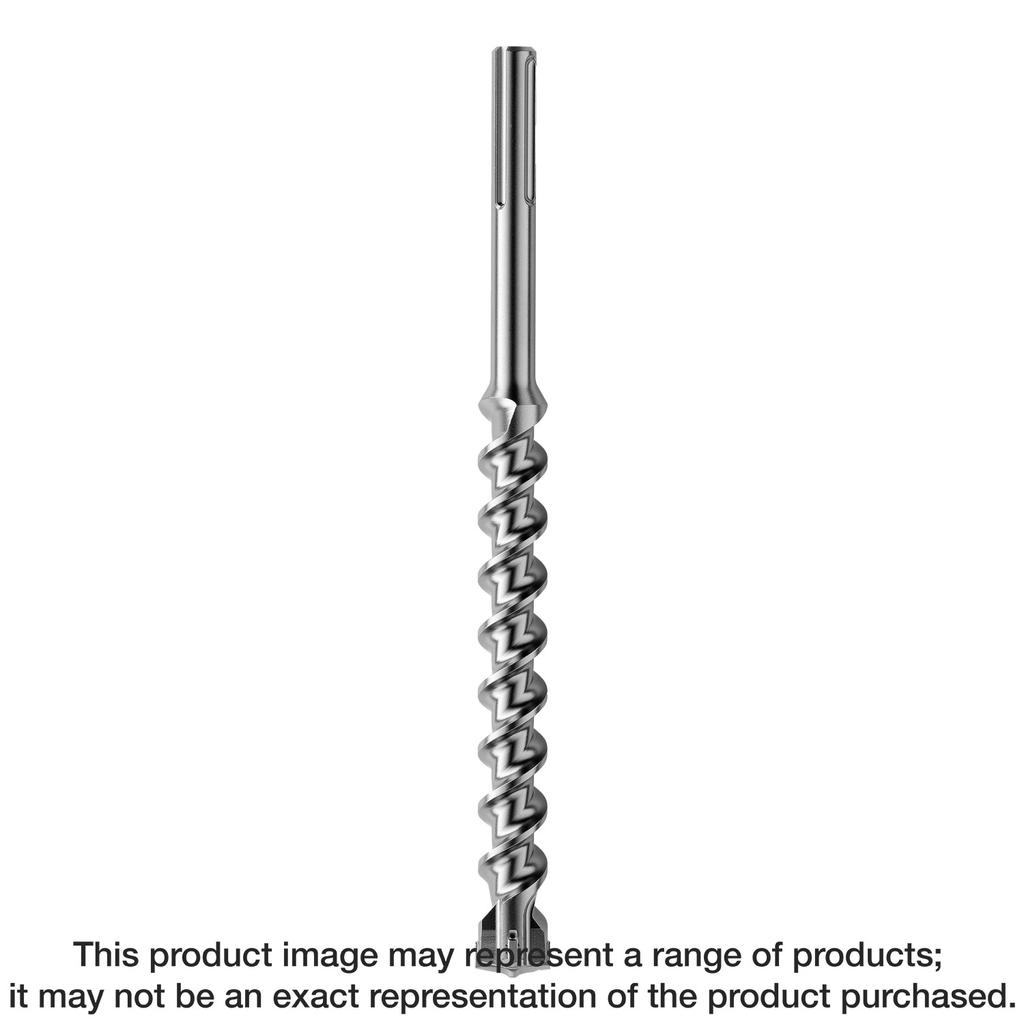

Engineered for high-performance drilling in challenging materials, this SDS-max® shank drill bit features a unique quad-head design that effectively crushes through rebar while minimizing the risk of sticking in reinforced concrete. Its uniformly brazed carbide inserts contribute to an extended lifespan, ensuring reliability on the job site. Crafted from a robust chromium-nickel-molybdenum steel alloy, the body enhances hammering quality and overall durability, making it suitable for demanding applications. Additionally, self-centering tips allow for precise hole placement, while the high-volume, multi-flute spiral efficiently channels dust away from the drilling area, optimizing speed and performance.
Description
Simpson Strong-Tie offers a complete line of premium-quality drill bits, core bits and chisels to handle any drilling and demolition need. SDS-max shank bits have a chisel-shaped drill bit head which penetrates the material and directs concrete dust into the multi-flute spiral. The proprietary flute geometry reduces vibration and optimizes impact energy transfers from the rotary hammer into the drill bit tip which enhances drilling speed and durability and reduces noise, stress and vibration on the operator. All the features of the quad-head dual-cutter are designed to improve durability and drilling speed. The high-volume, double-helix design of the quad-head bit comes with the patented, high-performance, reinforced core flute to maximize energy transfer.
Additional information
| Weight | 3.17 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Drilling Depth | 18 in. |
| Diameter | 1-1/4 in. |
