SDS MAX QUAD BIT 5/8X13
$45.75

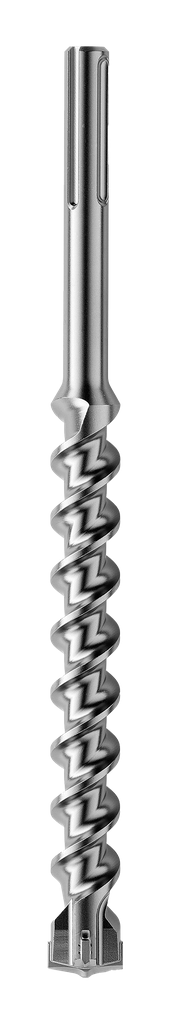

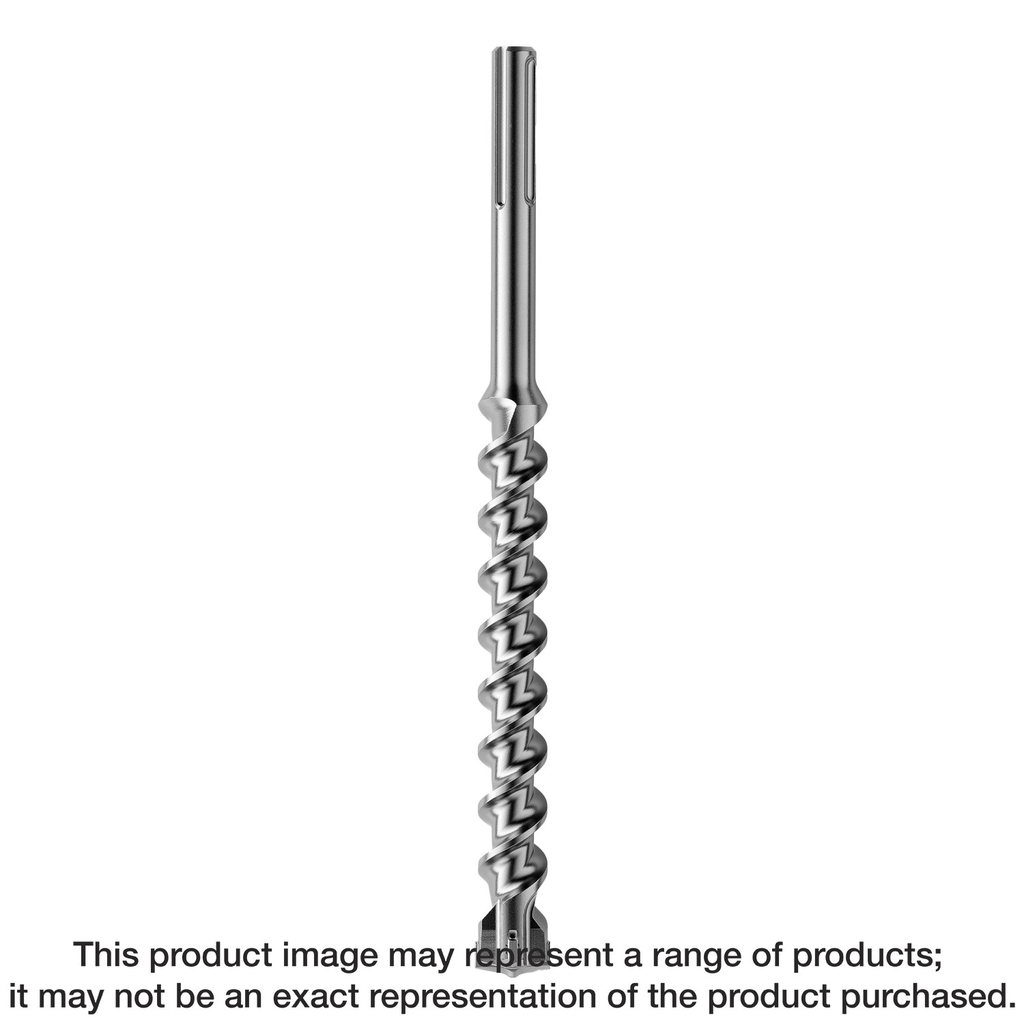

Engineered for precision and durability, the 5/8 in. x 13 in. SDS-max® Shank Quad-Head Drill Bit from Simpson Strong-Tie is a powerful tool for tackling tough drilling tasks in concrete and reinforced materials. Its self-centering tips ensure accurate hole placement, while the innovative quad head design and 4 x 90° geometry proficiently break through rebar, minimizing the risk of sticking. Constructed from a chromium-nickel-molybdenum steel alloy, the drill bit is built to withstand rigorous hammering and extend service life, thanks to uniformly brazed carbide inserts and advanced heat-treatment processes that enhance surface hardness and drilling speed. Conforming to ANSI Standard B212.15, this drill bit offers the reliability and performance needed for demanding applications.
Description
Simpson Strong-Tie offers a complete line of premium-quality drill bits, core bits and chisels to handle any drilling and demolition need. SDS-max shank bits have a chisel-shaped drill bit head which penetrates the material and directs concrete dust into the multi-flute spiral. The proprietary flute geometry reduces vibration and optimizes impact energy transfers from the rotary hammer into the drill bit tip which enhances drilling speed and durability and reduces noise, stress and vibration on the operator. All the features of the quad-head dual-cutter are designed to improve durability and drilling speed. The high-volume, double-helix design of the quad-head bit comes with the patented, high-performance, reinforced core flute to maximize energy transfer.
Additional information
| Weight | 0.92 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Drilling Depth | 7-1/2 in. |
| Diameter | 5/8 in. |
