SDW 6-3/4IN SCREW MINI-BULK 200EA
$182.35

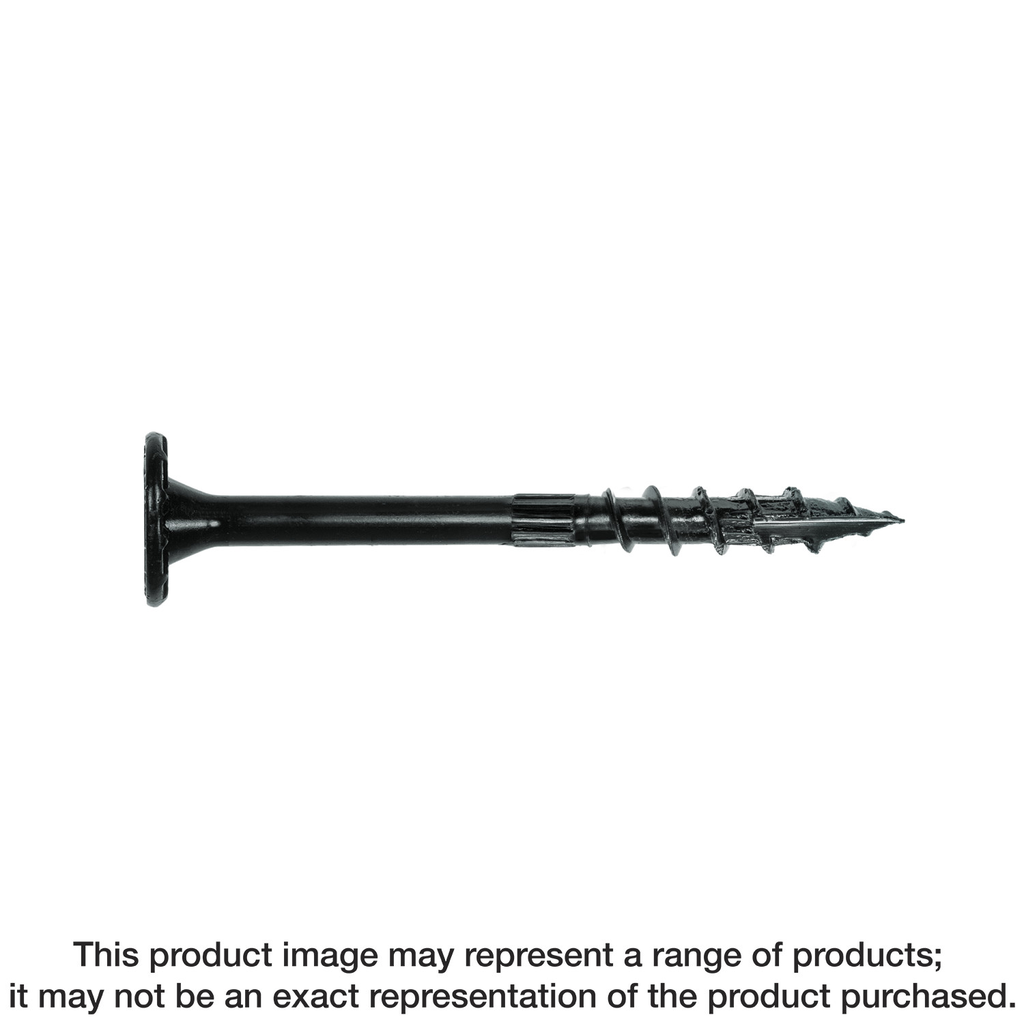

The Simpson Strong-Drive® SDW™ EWP-PLY screw is designed for superior performance in structural applications, featuring a .220-inch diameter and a length of 6-3/4 inches. A large washer head, measuring 0.75 inches in diameter, maximizes bearing area and is stamped with identifiable markings for easy post-installation recognition. Equipped with a specialized SawTooth® point, this screw ensures rapid starts and eliminates the need for predrilling, contributing to overall efficiency. With an E-coat® electrocoating, it is suitable for use in dry, low-corrosion environments, while the deep 6-lobe T40 recess minimizes cam-out, facilitating smooth driving.
Description
The Strong-Drive SDW EWP-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply wood members, such as engineered wood products and solid sawn lumber. The SDW EWP-Ply installs easily with no predrilling and is available in optimized lengths for fastening 1-3/4 in. engineered lumber, such as structural composite lumber (SCL). The large, flush head eases the handling of assembled girders and simplifies the installation of finishes or structural connectors. It is code listed under IAPMO-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing and engineered-wood applications.
Additional information
| Weight | 16.45 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Depth | 0.760 in |
| Length | 6-3/4 in |
