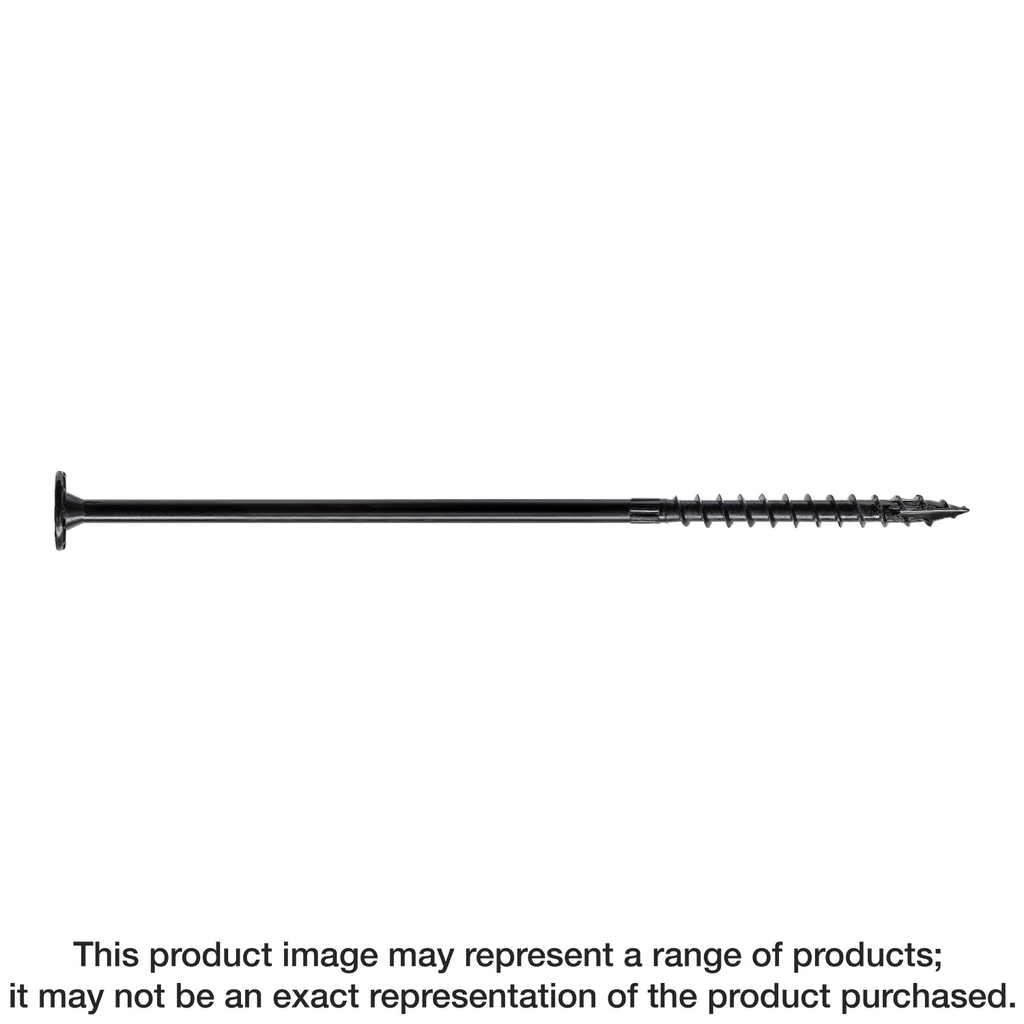

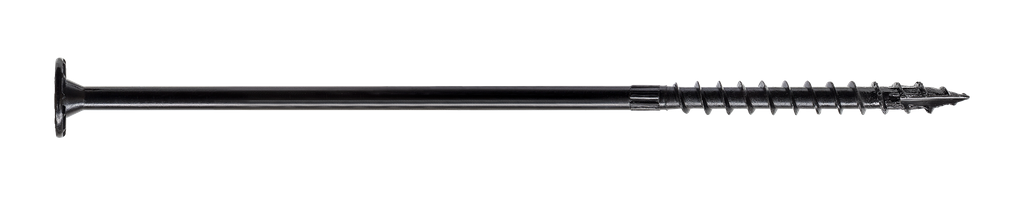

SDWS 22 X 8IN ECOAT 250CT
$238.78
Engineered for exceptional performance in timber applications, the Strong-Drive® SDWS™ timber screw from Simpson Strong-Tie features a robust design equipped with a large washer head that maximizes bearing area for superior load distribution. Its innovative SawTooth® point allows for swift engagement, significantly reducing installation torque and minimizing the need for predrilling in most situations. With a T40, 6-lobe drive that ensures positive bit engagement, driving these screws is straightforward; a driver bit is included for immediate use. Designed with serrated threads to mitigate splitting and damage while promoting a low-profile head for easy countersinking, these screws are also coated with E-coat® electrocoating, making them suitable for dry, low-corrosion environments. Ideal for a variety of wood projects, these screws provide the reliability and strength needed for successful interior applications.
Description
The Strong-Drive® SDWS™ Timber screw is a structural wood screw available in a variety of lengths and is designed for cross-laminated timber construction, mass timber construction and general interior applications. These 0.195 in. and 0.220 in. diameter structural fasteners require less torque to install than comparable fasteners. The large diameter washer head pulls members down easily, eliminating the need to use extra washers. It is code listed under IAPMO-UES ER-192 and meets IRC and IBC code requirements for several common wood framing applications.
Additional information
| Weight | 22.9 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 0.220 in x 8 in |
| Depth | 0.760 in |
