SEAT WIDTH=4-5/8 COLLAR I.D.= 4-3/16
$128.67

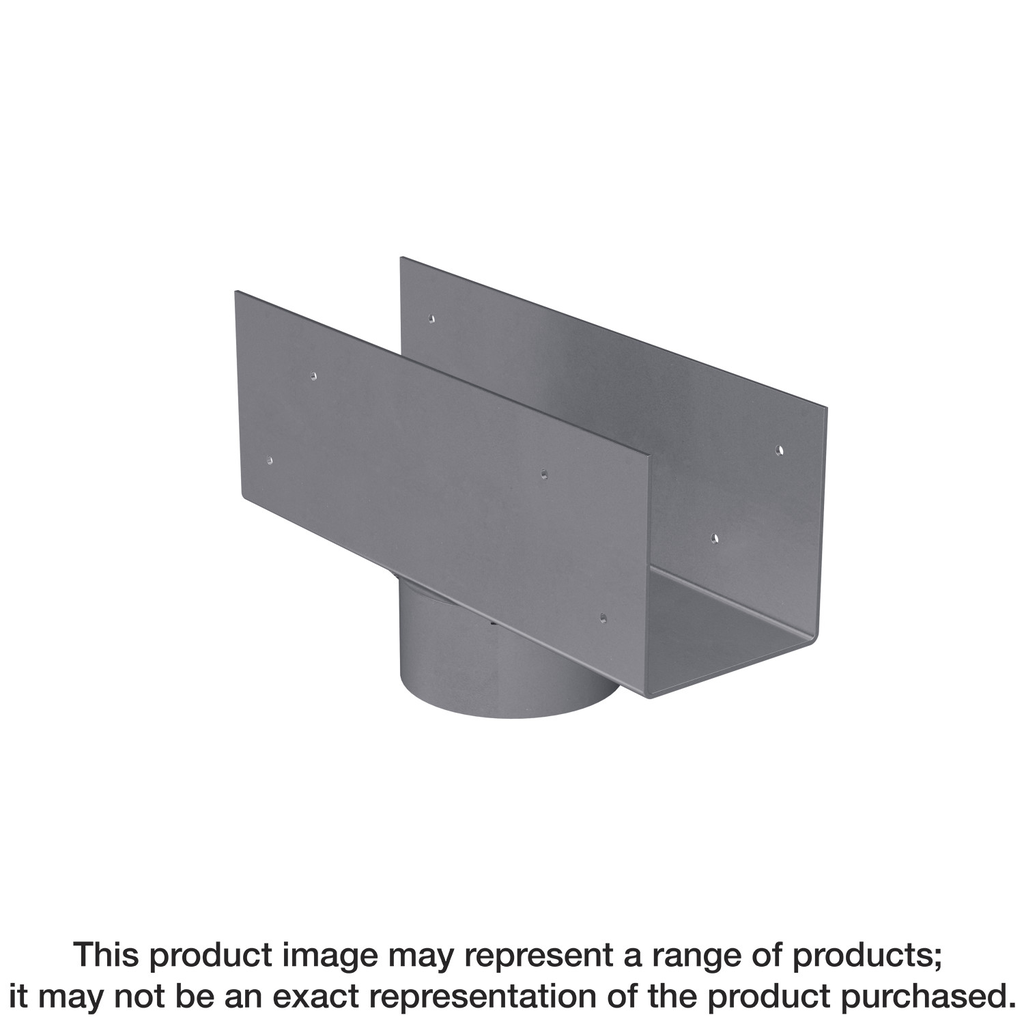

Engineered to complement 4-inch outer diameter lally columns, this column cap from Simpson Strong-Tie ensures reliable support for significant girder reactions. Crafted from 12-gauge steel, it provides exceptional durability, while its precise design allows for accurate positioning and welding, making installation efficient and straightforward. The cap features a seat width of 4-5/8 inches, satisfying the requirements for various beam widths such as triple 2×10 and triple 2×12 configurations. Finished with a Simpson Strong-Tie gray paint, it not only resists corrosion but also fits seamlessly into your structural framework.
Description
The LCC is designed specifically to be welded to the lally column and attach to the girder. The column cap provides a higher-capacity column-to-beam connection for new or replacement applications. Side plates capture the beam enabling a safer installation process than standard cap plates.
Additional information
| Weight | 5.19 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 4-5/8 in. |
| Depth | 4.841 in |
