SETTING TOOL FOR DIAB75
$12.44

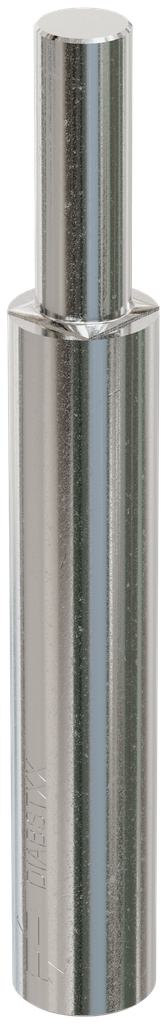

The DIABST75 setting tool by Simpson Strong-Tie is expertly designed to facilitate the installation of 3/4-inch Drop-In anchors, specifically tailored for use with models DIAB75 and DIAB75C. Constructed from durable carbon steel, this tool ensures reliable performance in overhead applications, allowing for secure placements under various conditions. It’s important to note that oversized holes can impede the anchor’s setting and reduce load capacity, so precision during installation is crucial. As a reminder, ensure proper safety precautions when handling, as the tool may expose users to wood dust—recognized by the State of California as a potential cancer risk. Ideal for both professional and DIY projects, this setting tool streamlines the anchoring process while maintaining high standards of safety and effectiveness.
Description

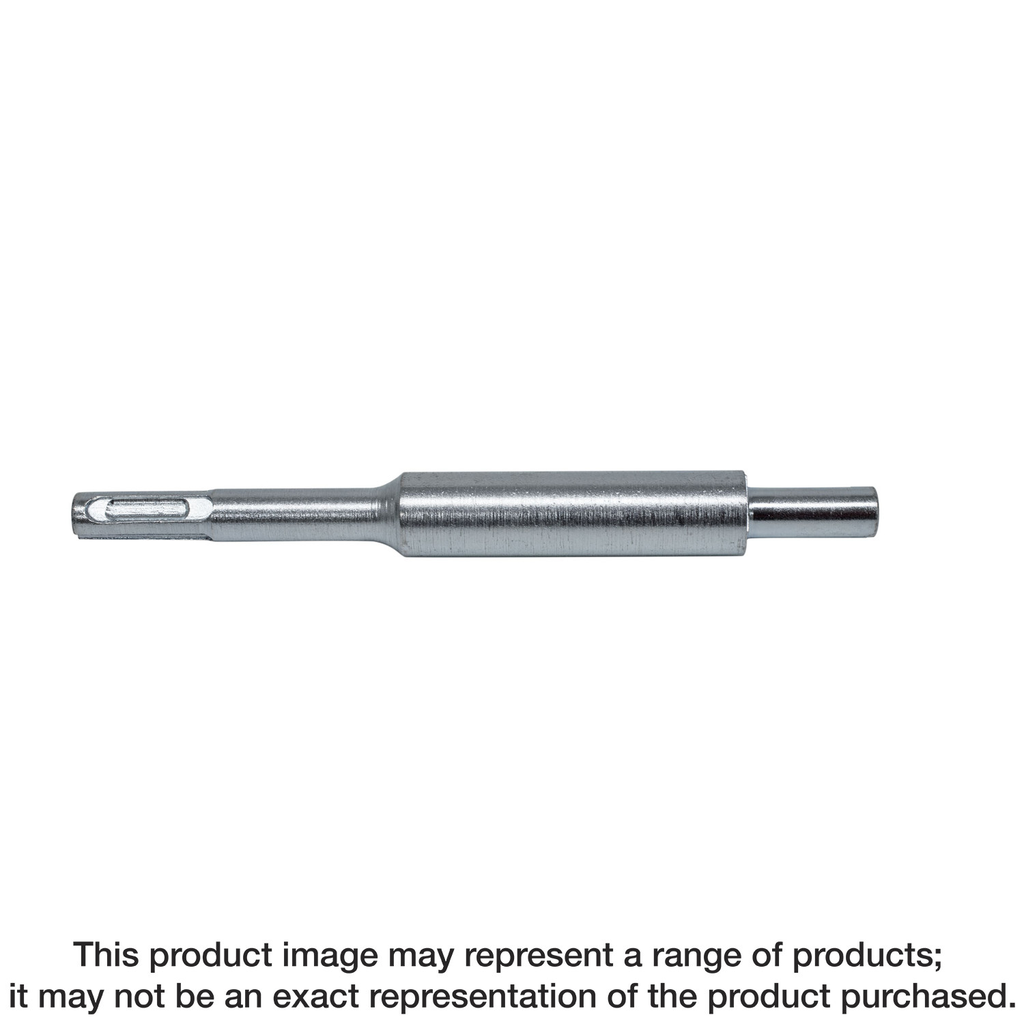

The drop-in anchor setting tool is designed for properly and consistently installing Simpson Strong-Tie Drop-In internally threaded anchors. Using the setting tool, drop-ins are installed by driving the expander plug toward the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.
Additional information
| Weight | 0.504 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 0.984 in |
| Compatible Anchor Diameter | 3/4 in |
