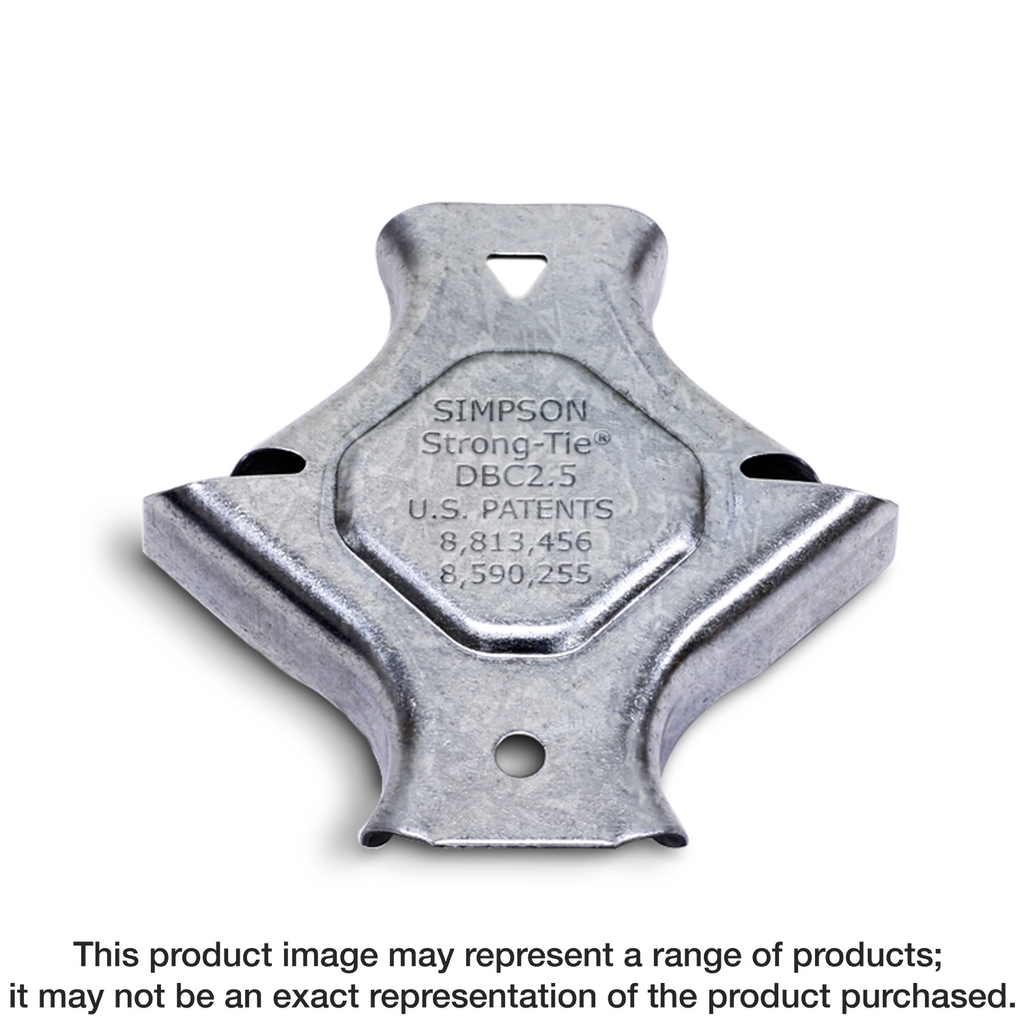

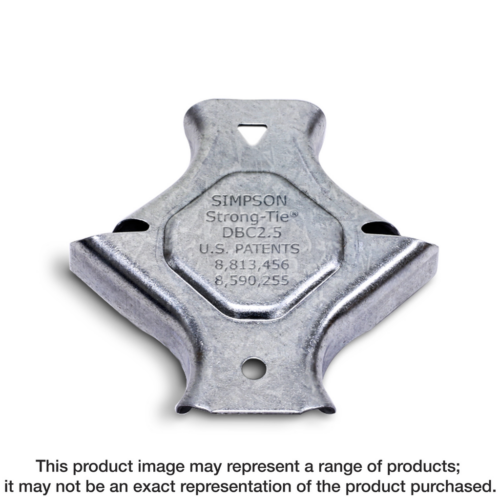

DRYWALL STUD BRIDGING CONNECTOR
$136.62
Work smarter, not harder
Patented design allows for one- or two-screw installation of the DBC, significantly reducing labor and material cost. The first and only connector load rated for 3/4″ u-channel, the DBC joins the SUBH line of bridging connectors tested as a system, ensuring that published design capacities capture the influence of stud web depth and thickness.
Key Features
- Most applications require only a single screw
- Designed for 3/4″ u-channel to fit smaller web knockouts common to drywall studs
- Compatible with drywall stud depths of 3 5/8″ and 6″ with 1 1/2″ wide knockouts
Material
- 33 mil (20 ga.) carbon steel
Finish
- Galvanized (G90)
Installation
- With 3/4″ x 54 mil (16 ga.) u-channel installed through the stud web knockouts, insert the DBC2.5 through the knockout so that the DBC slots engage the stud web and the DBC flanges engage the u-channel as shown in the illustration
- Use the specified number of #8 screws to fasten the DBC to the u-channel
Ordering Information
- DBC2.5-R200 (Bucket of 200)
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | |
| Model (SKU) | |
| Quantity |
