DECK TENSION TIE FOR STEEL W/WASHER

$20.63

The HTT is a single-piece formed tension tie — no rivets, and a 4-ply formed seat. No washers are required.

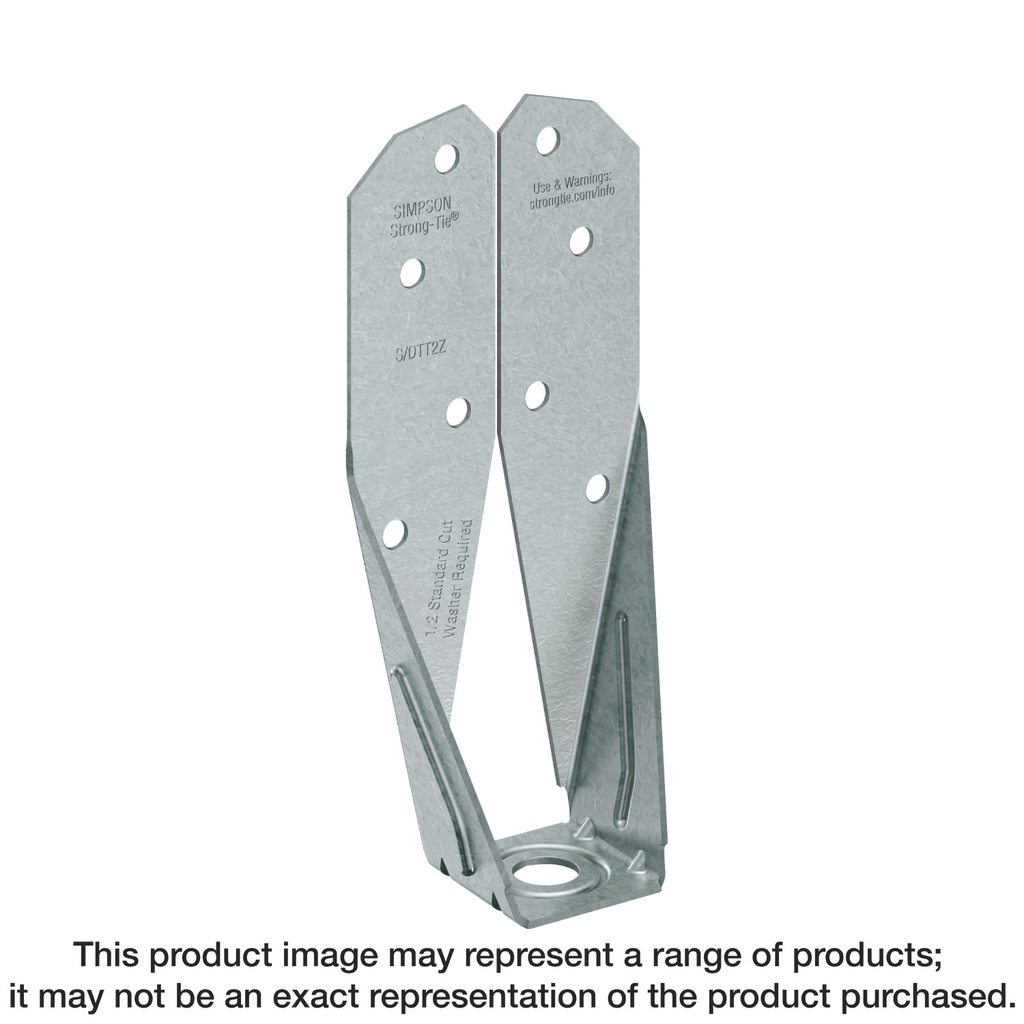

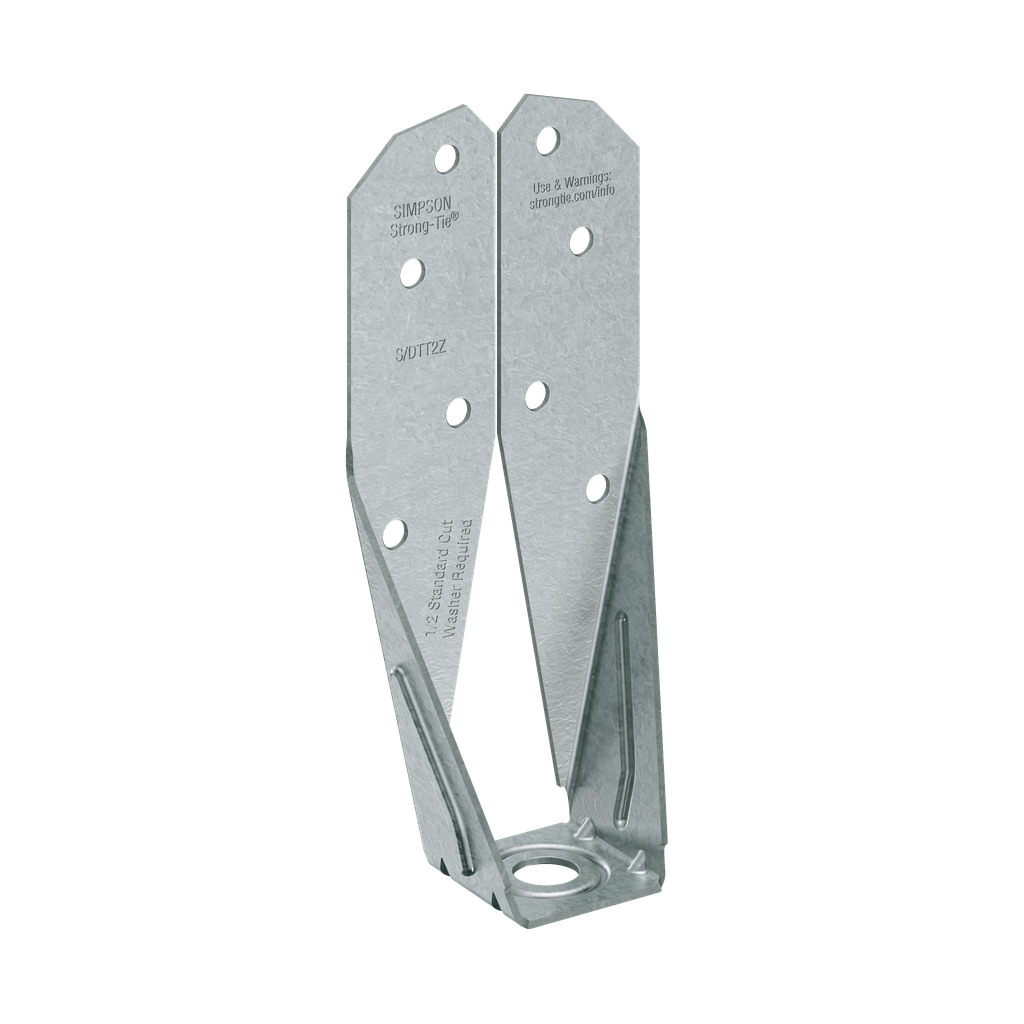

S/DTT2Z tension tie is suitable for lighter-duty hold-down applications on single or back-to-back studs, and installed easily with #14 self-drilling screws.

The HTT, S/DTT and S/LTT tension ties are ideal for retrofit or new construction projects. They provide high-strength, post-pour, concrete-to-steel connections.

Material

  • HTT — 111 mil (11 ga.); DTT1Z, S/DTT2Z — 68 mil (14 ga.); S/LTT20B — strap: 97 mil (12 ga.), plate: 229 mil (3 ga.)

Finish

  • HTT, S/LTT — galvanized; DTT1Z, S/DTT2Z — ZMAX® coating

Installation

  • Use all specified fasteners.
  • Use the specified number of type of screws to attach the strap portion to the steel stud. Bolt the base to the wall or foundation with a suitable anchor; see table for the required bolt diameter.
  • S/DTT2Z requires a standard-cut washer (included) be installed between the nut and the seat.
  • Do not install S/LTT20B raised off of the bottom track.
  • See SB and SSTB anchor bolts for anchorage options.
  • See SET-XP® and AT-XP® adhesive products for anchor bolt retrofit options.
Weight 0.5 lbs
Dimensions 5 × 5 × 5 in
Manufacturer

Model (SKU)

Full Case Quantity

25

Quantity

SKU: S/DTT2Z Category: Tag: Barcode: 7.07393E+11.
