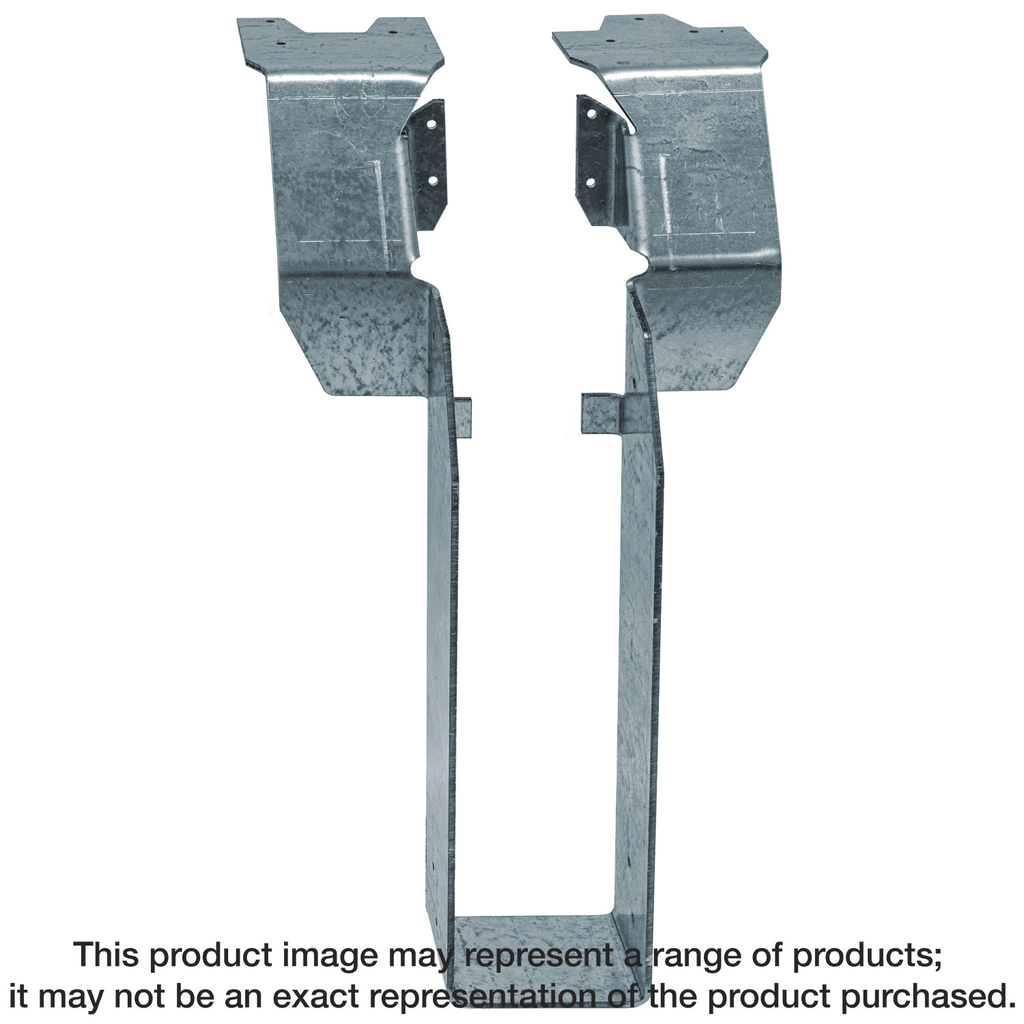

Simpson Strong-Tie DGT1.81/16 TOP FLANGE FIRE WALL HANGER 1.81/16 (1/each)
$43.99
Engineered for robust performance, the DGT™ Top-Flange Fire Wall Hanger by Simpson Strong-Tie is an essential component for ensuring the structural integrity of your fire-rated walls. This innovative design allows for back-to-back installation on 2×6 walls, facilitating a strong and efficient building process. With a remarkable two-hour fire-resistant rating, this hanger is thoroughly tested and code-listed for use with both power-driven and hand-installed nails, ensuring reliability in demanding environments.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 4.9 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Depth | 8.073 in |
| Weight | 4.9 lbs |
