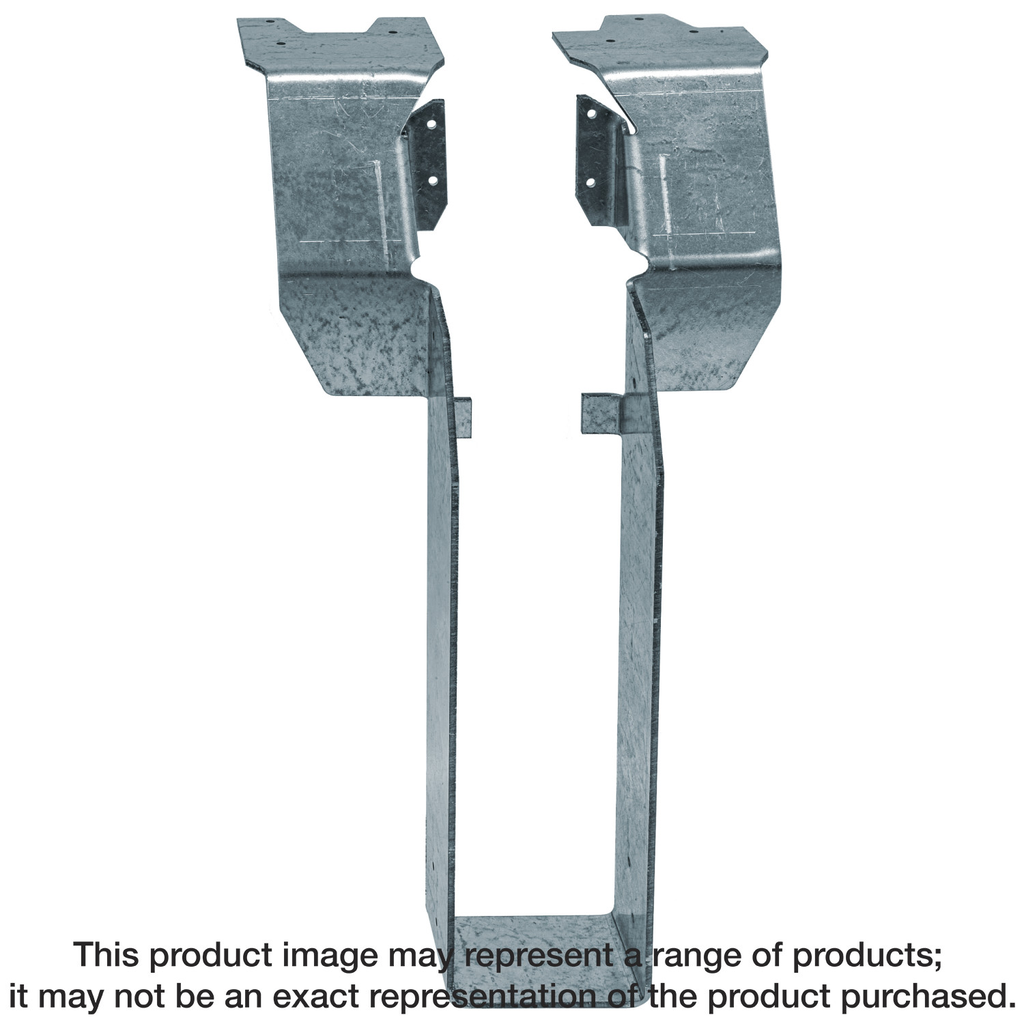

Simpson Strong-Tie DGT2.37/14 TOP FLANGE FIRE WALL HANGER 2.37/14 (1/each)
$43.63
This top-flange fire wall hanger from Simpson Strong-Tie is engineered specifically for 2-5/16 in. x 14 in. wood, combining robust construction with essential safety features. Crafted from 12-gauge steel and galvanized for corrosion resistance, it offers a two-hour fire rating for walls that are 2×4 or thicker—ensuring reliability in critical applications. The innovative design allows for back-to-back installation on minimum 2×6 walls, while also providing sufficient space for two layers of 5/8-in. drywall after framing. Tested and code-listed for use with both power-driven and hand-installed nails, this hanger stands out as a dependable choice for residential and commercial projects alike.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 4.9 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 2-3/8 in |
| Joist Size | 2-5/16 in x 14 in |
