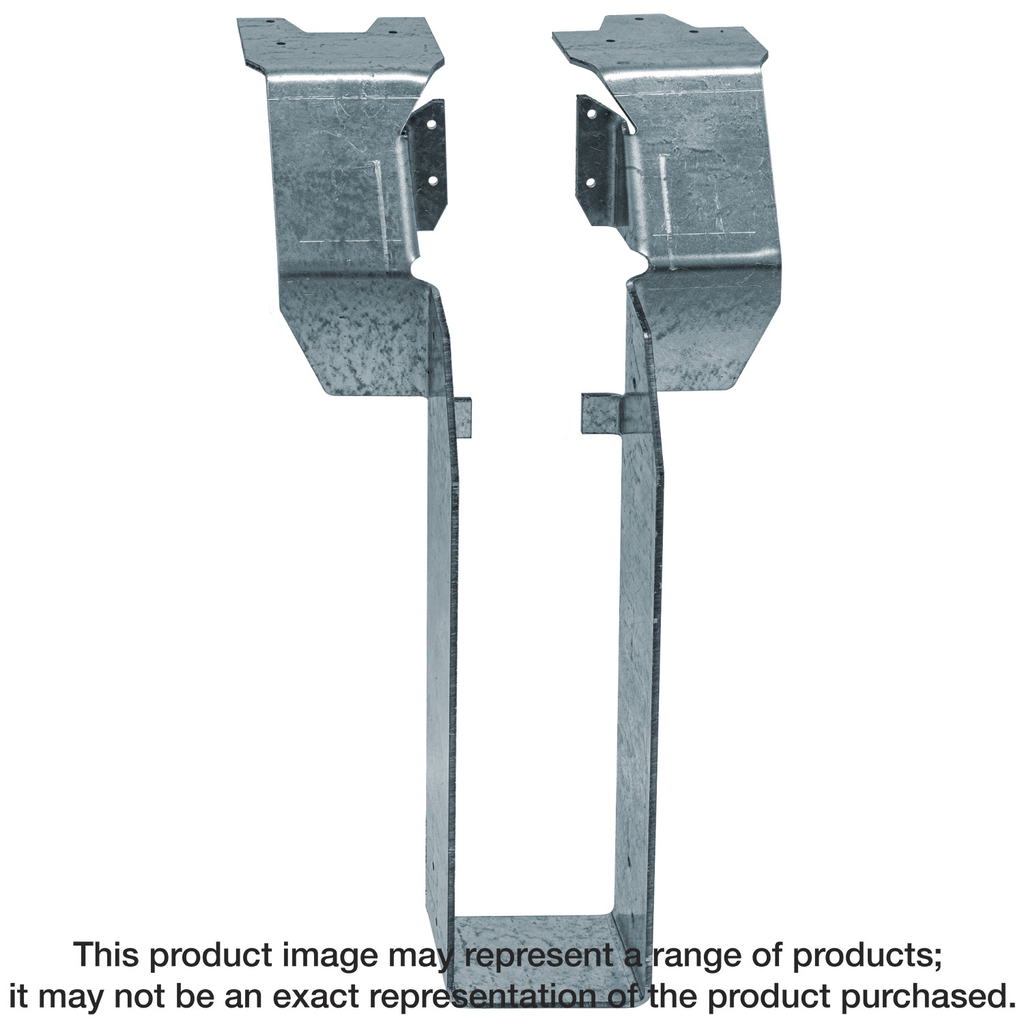

Simpson Strong-Tie DGT2.56/18 TOP FLANGE FIRE WALL HANGER 2.56/18 (1/each)
$46.80
Engineered for exceptional fire safety and structural integrity, this top-flange fire wall hanger is ideal for use with 2-1/2 in. x 18 in. engineered wood. It boasts a two-hour fire-resistant rating, meeting stringent codes as validated by Intertek Design No. SST/WPCF 120-01, which ensures peace of mind in fire-prone applications. Crafted from durable 12-gauge galvanized steel, this hanger is designed to withstand the rigors of both power-driven and hand-installed nails while providing innovative back-to-back installation capabilities on 2×6 minimum walls. With ample space for two layers of 5/8-in. drywall post-framing, this fire wall hanger combines reliability and functionality for superior building performance.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 5.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Compatible Wood Size | 2-1/2 in. x 18 in. |
| Weight | 5.6 lbs |
