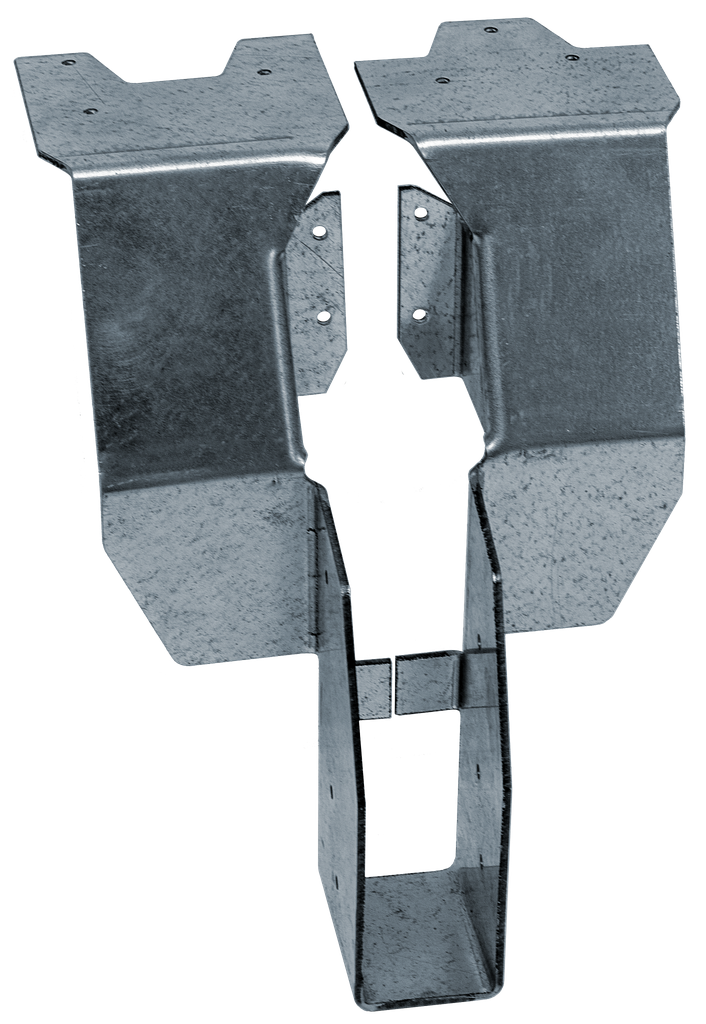

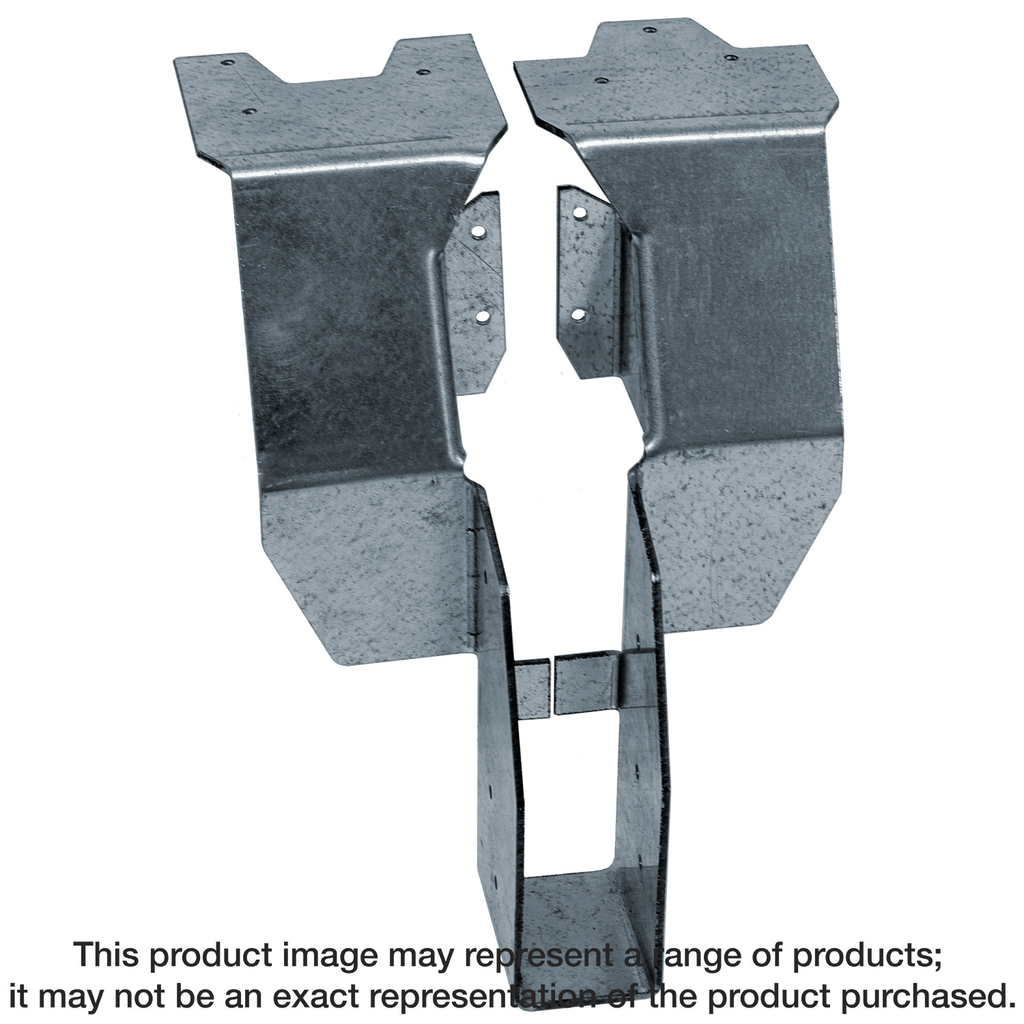

Simpson Strong-Tie DGT210 TOP FLANGE FIRE WALL HANGER 2X10 (1/each)
$40.29
The DGT™ Top-Flange Fire Wall Hanger, designed by Simpson Strong-Tie, provides a robust solution for securely supporting 2×10 joists in fire-rated wall assemblies. Constructed from durable 12-gauge steel and galvanized (G90) for added corrosion resistance, this hanger not only ensures long-lasting performance but also meets stringent safety standards with its two-hour fire rating applicable to walls of 2×4 thickness or greater.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 3.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Country of Origin | United States |
| Nominal joist size | 2×10 |
