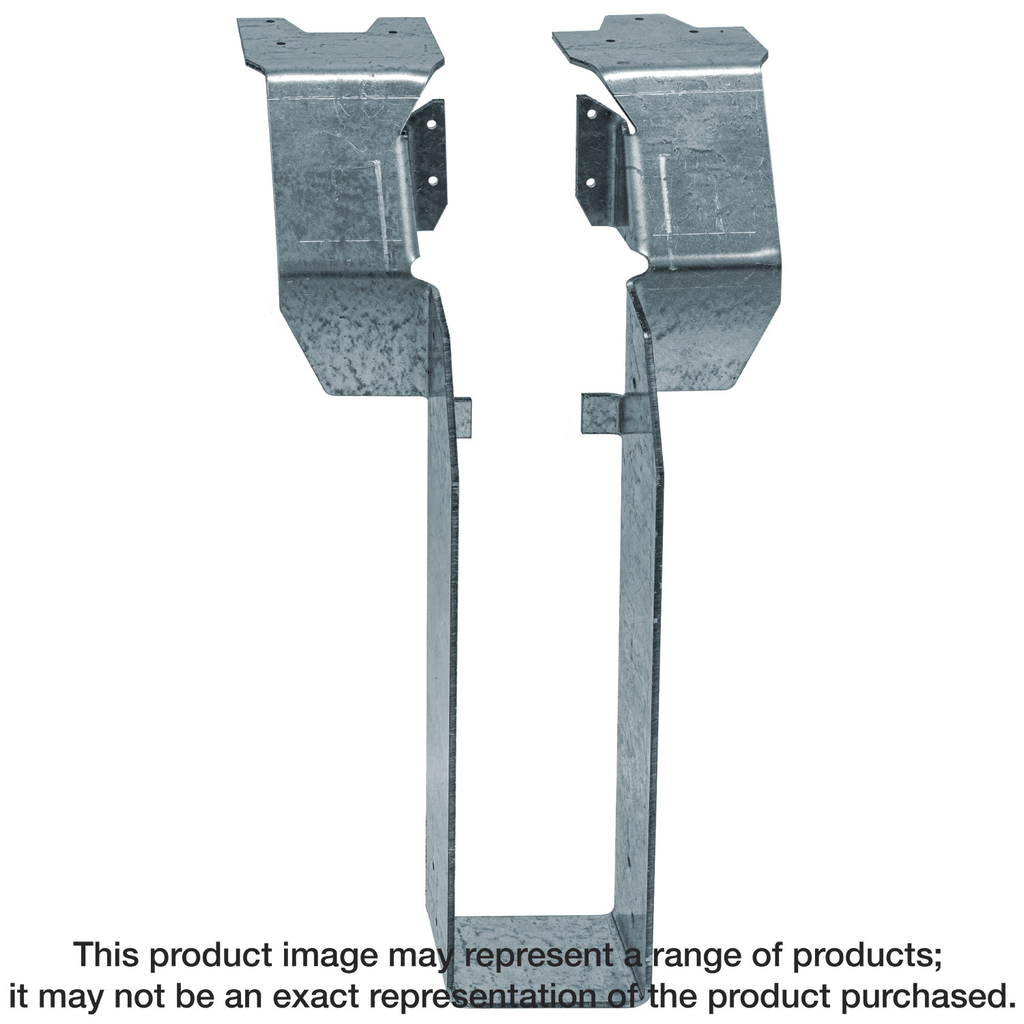

Simpson Strong-Tie DGT28 TOP FLANGE FIRE WALL HANGER 2X8 (1/each)
$39.97
The DGT™ Top-Flange Fire Wall Hanger from Simpson Strong-Tie is engineered for exceptional performance and reliability, specifically designed for 2×8 joists. This innovative hanger features a two-hour fire-resistance rating, making it an ideal choice for enhancing safety in 2×4 or thicker wall applications. Its robust construction from 12-gauge steel, combined with a galvanized finish, ensures corrosion resistance, further extending the lifespan and durability of your installation. With the capacity for two layers of 5/8-inch drywall after framing and the ability to support both power-driven and hand-installed nails, this product not only simplifies the installation process but also meets stringent code requirements for fire safety. Perfect for back-to-back installations on minimum 2×6 walls, this hanger is a reliable solution for modern construction needs.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 7.823 in |
| Nominal Joist Size | 2×8 |
