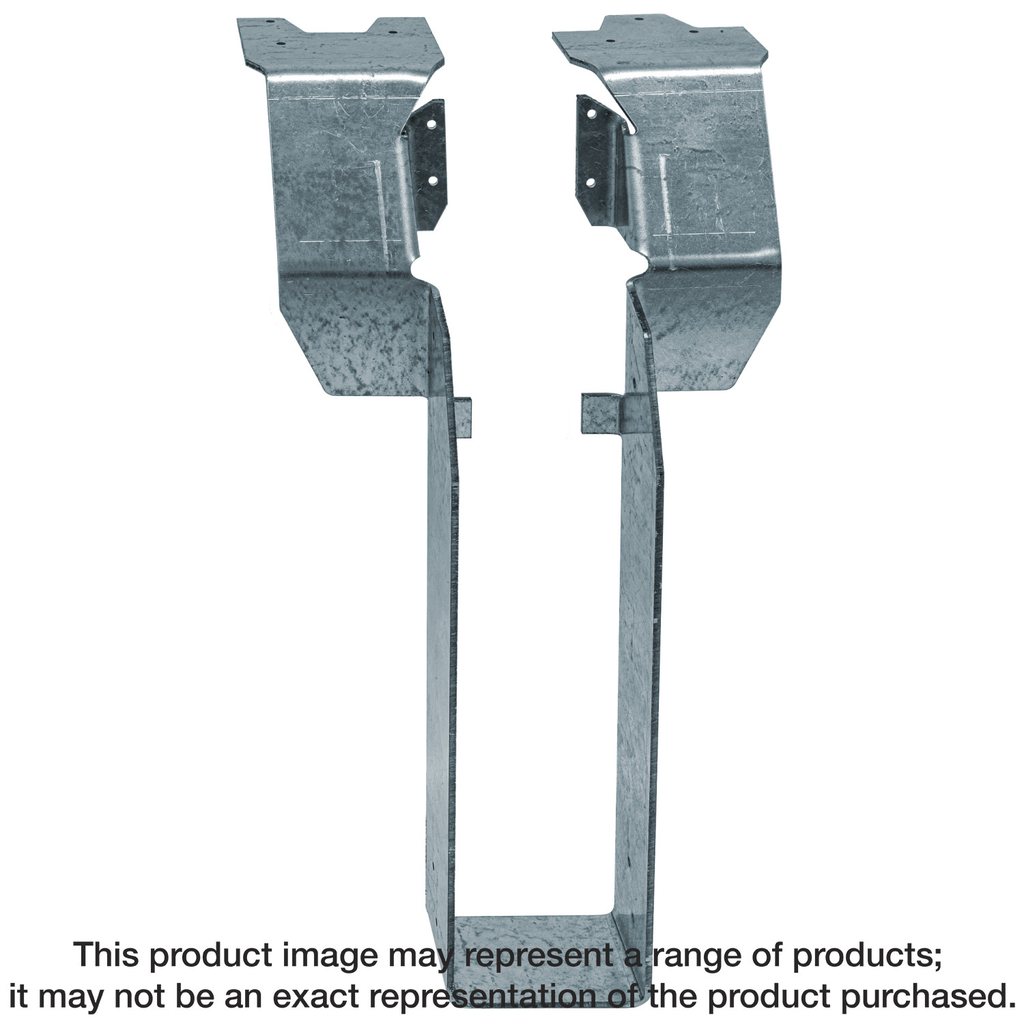

Simpson Strong-Tie DGT3.62/14 TOP FLANGE FIRE WALL HANGER 3.62/14 (1/each)
$44.51
Constructed from robust 12-gauge steel and designed for strength and durability, this top-flange fire wall hanger meets demanding standards for both residential and commercial applications. Featuring a two-hour fire-resistant rating, it is ideally suited for use with engineered wood joists measuring 3-1/2 inches by 14 inches, providing peace of mind in stringent fire safety environments. Its innovative design allows for back-to-back installation on 2×6 walls, accommodating two layers of 5/8-inch drywall post-framing and ensuring optimal functionality. Further enhanced by a corrosion-resistant galvanized finish, this hanger not only supports structural integrity but also facilitates easy installation with a range of compatible power-driven or hand-installed nails.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 4.9 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.8855 in |
| Compatible Wood Size | 3-1/2 in x 14 in |
