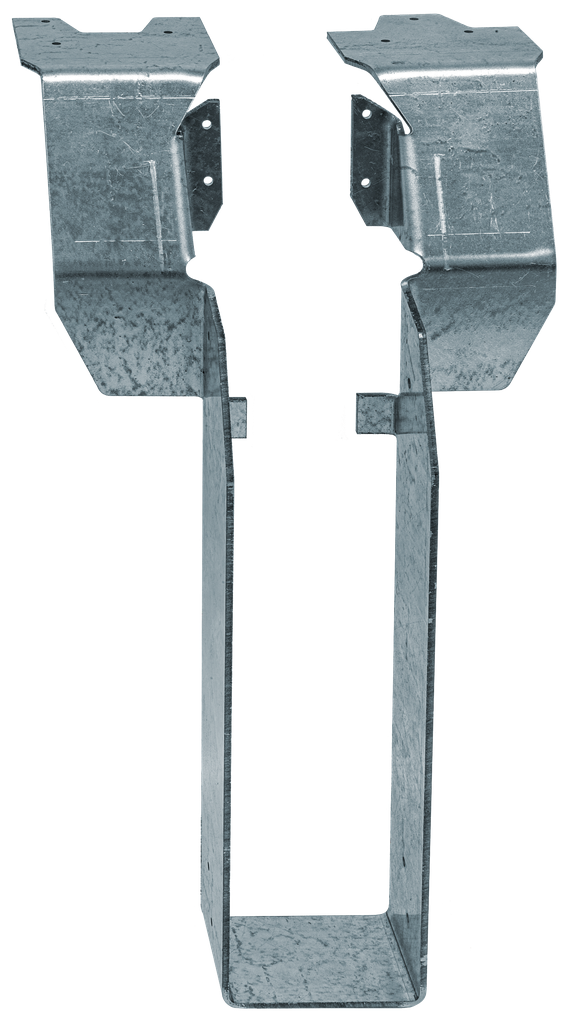

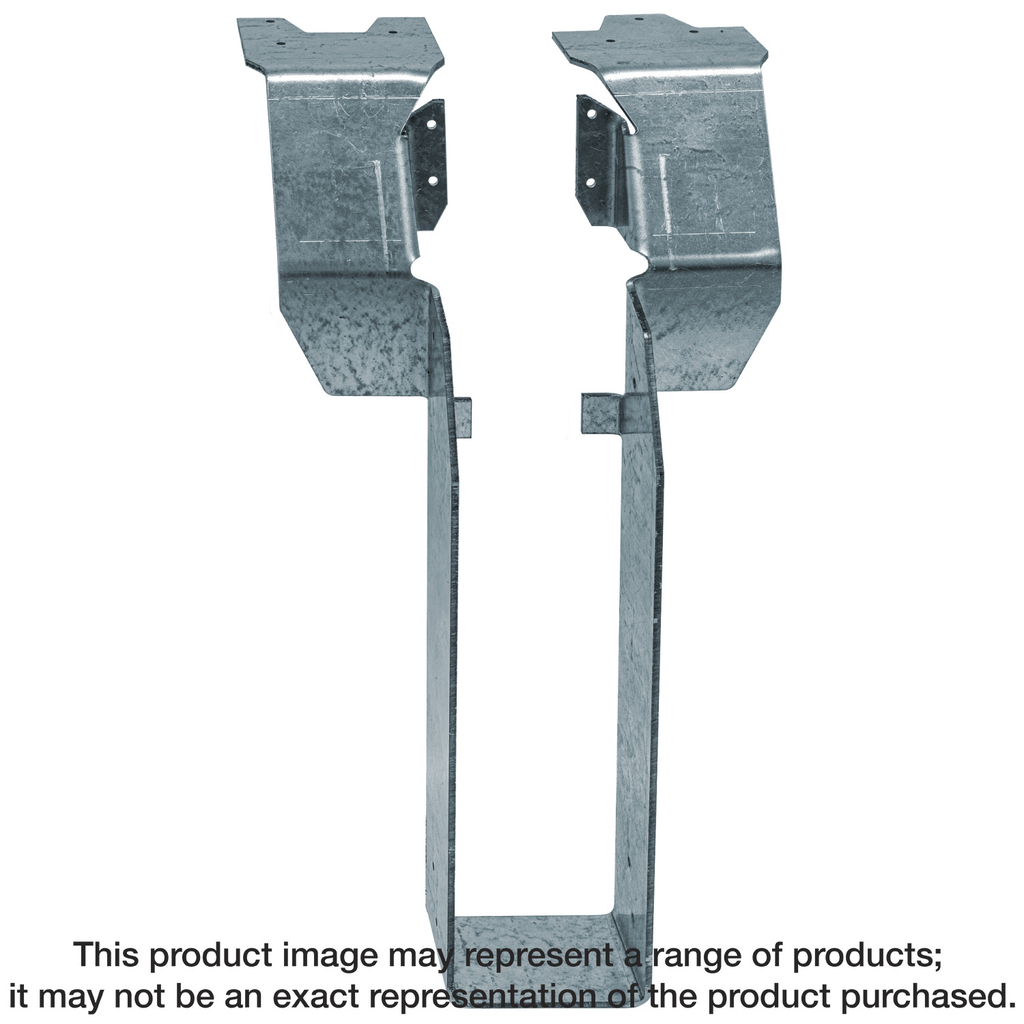

Simpson Strong-Tie DGT3.62/18 TOP FLANGE FIRE WALL HANGER 3.62/18 (1/each)
$47.36
The DGT™ Top-Flange Fire Wall Hanger is engineered to support 3-1/2 in. x 18 in. engineered wood with exceptional durability and functionality. Its innovative top-flange design allows for efficient back-to-back installation on 2×6 walls, accommodating two layers of 5/8-in. drywall after framing. Crafted from robust 12-gauge galvanized steel, this fire wall hanger boasts a two-hour fire-resistance rating, ensuring it meets stringent safety standards in fire protection. Loads have been rigorously tested and code-listed for both power-driven and hand-installed nails, making it a reliable choice for construction projects where support and safety are paramount.
Description
Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
Additional information
| Weight | 5.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.8855 in |
| Joist Size | 3-1/2 in x 18 in |
