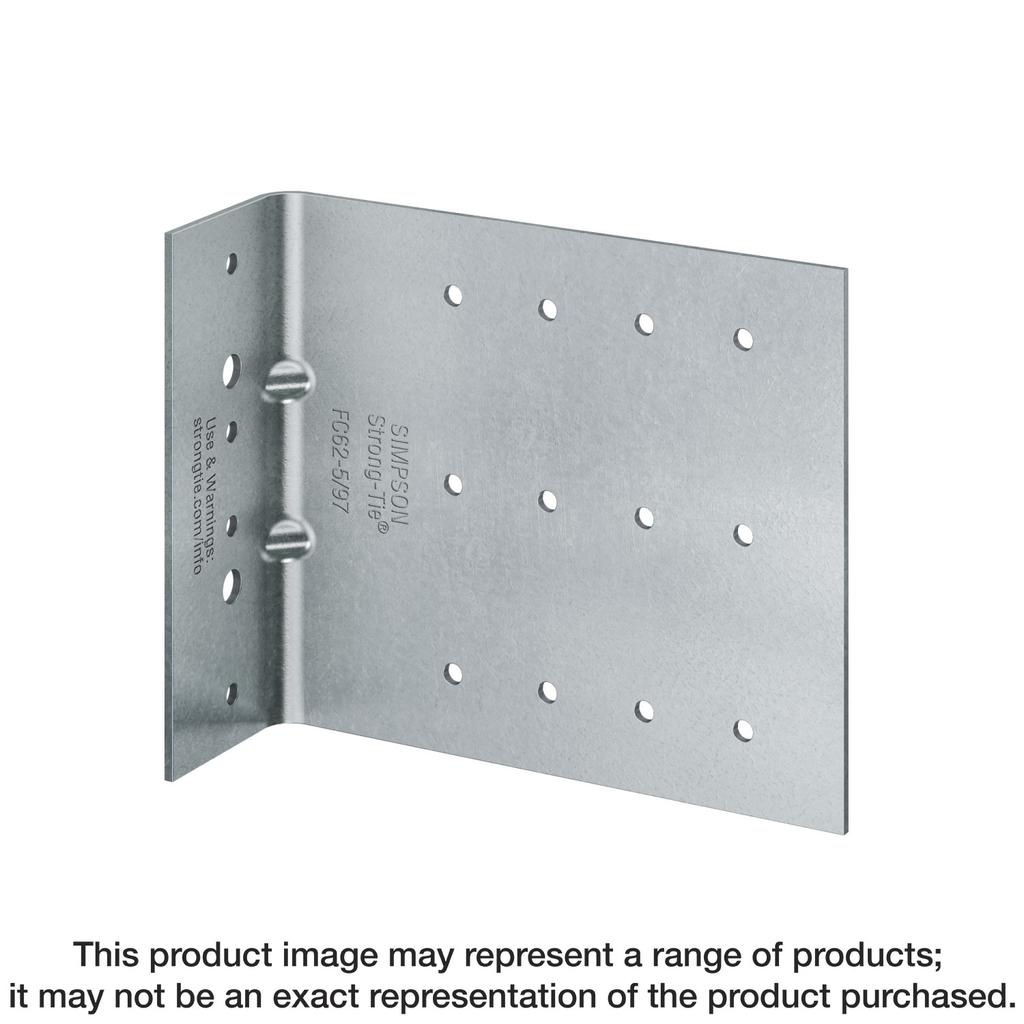

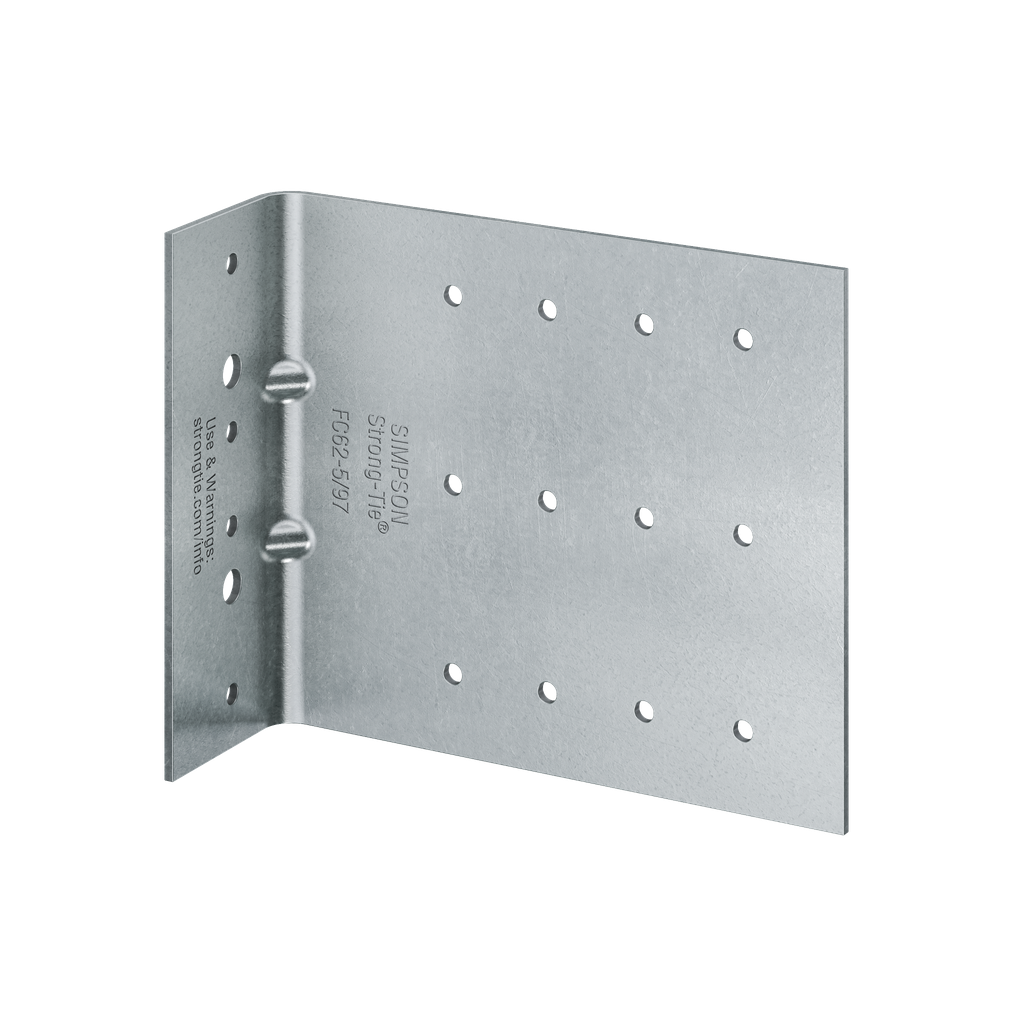

Simpson Strong-Tie FC62-5/97-R25 CFS RIGID CLIP 2 X 6 X 5 12GA 25 PAK (1/each)
$105.71
Engineered for strength and stability, the bypass framing fixed-clip connector from Simpson Strong-Tie is a reliable choice for construction projects utilizing 6-inch studs. Its robust design includes strategically placed embossments that enhance stiffness and load-bearing capacity, allowing for effective weld application at both the top and bottom of the clip. With prepunched large-diameter anchor holes, this connector easily accommodates 1/4-inch diameter concrete screws, while also featuring small-diameter holes suited for both powder-actuated fasteners and self-drilling metal screws, ensuring versatile installation options. Galvanized for superior corrosion resistance, this 12-gauge steel connector promises durability and performance in a variety of building applications. Each pack contains 25 units, making it a practical solution for larger framing needs.
Description
Ideal for high-seismic areas, Simpson Strong-Tie® FC connectors are the optimal solution for fixed-clip bypass framing. FC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to its anchorage versatility, the FC clip features prepunched screw holes for the framing attachment, eliminating the need for predrilling holes or worrying that fastener placement doesn’t match the designer specifications. FC connectors are manufactured using heavy-duty 10- or 12-gauge steel to provide exceptional resistance to in-plane seismic load.
Additional information
| Weight | 27.8 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5 in |
| Length | 6 in |
