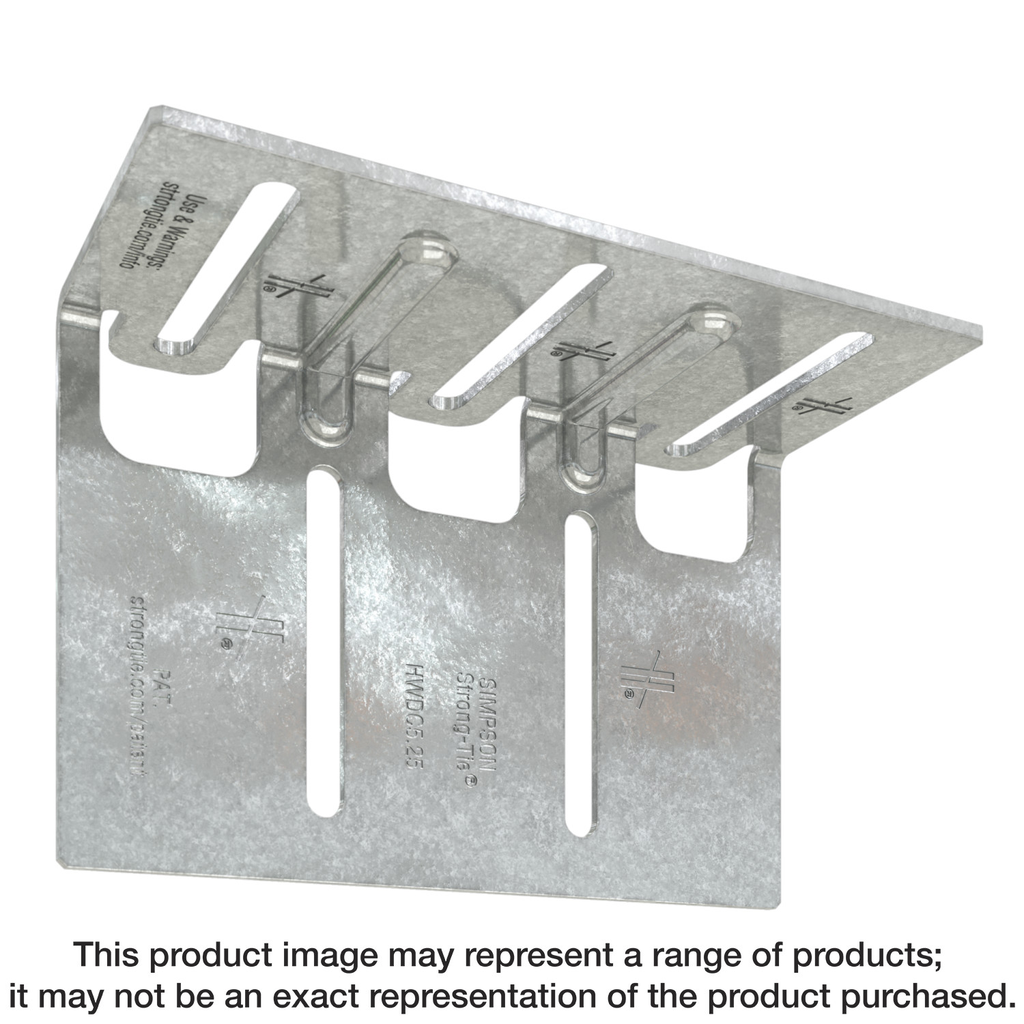

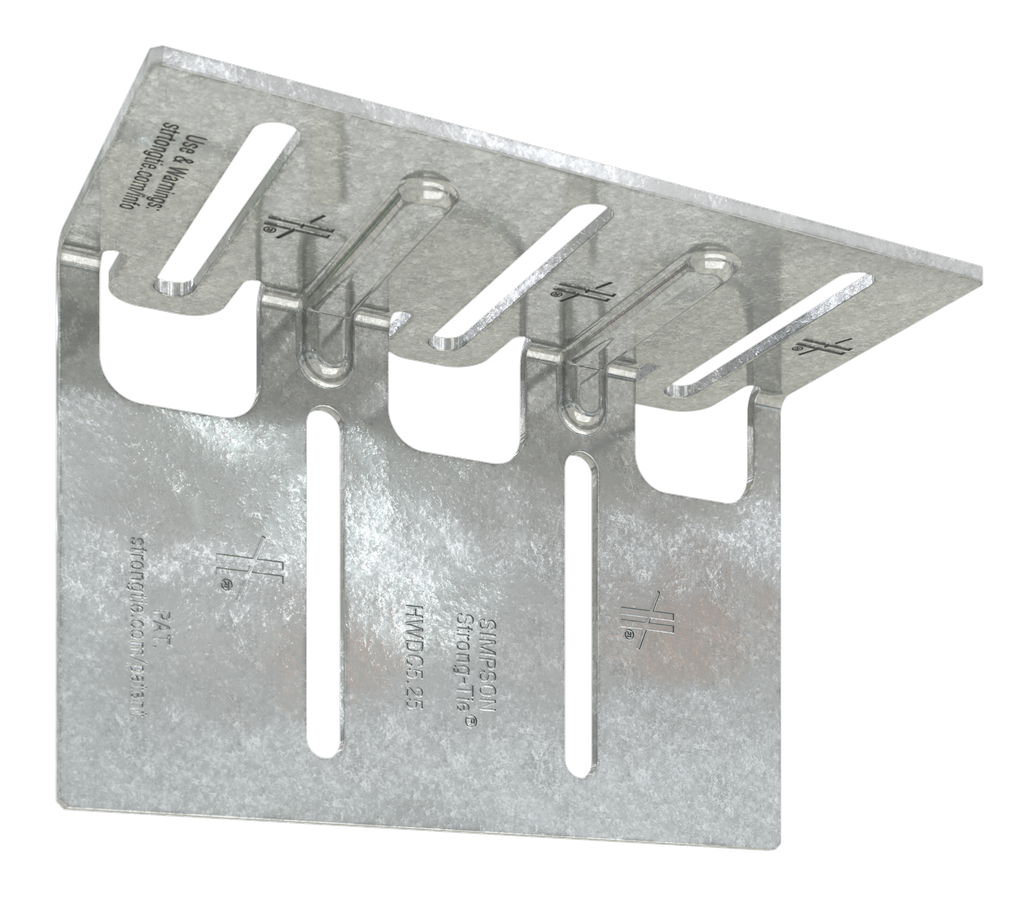

Simpson Strong-Tie HWDC5.25-KT25 Head of Wall Drift Clip 5.25″ Kit (1/each)
$263.33
The HWDC 5-1/4 in. Head-of-Wall Drift-Clip Connector from Simpson Strong-Tie is engineered for exceptional load capacity and flexibility in wall construction. Its unique design features strategically placed anchorage slots, allowing for closer attachment that enhances structural integrity while accommodating up to 1 inch of lateral drift and vertical deflection. Constructed from robust 12-gauge steel and finished with corrosion-resistant galvanized coating, this drift-clip connector ensures optimal performance and longevity in various applications. Additionally, the No-Equal® stamps on the slots facilitate accurate screw placement, streamlining your installation process while providing the versatility needed for both centered and off-center anchorage patterns.
Description
The Simpson Strong-Tie® head-of-wall drift-clip connector (HWDC) is used to secure the head of a wall to the bottom of a slab or beam. The unique design allows anchor screws to be installed closer to the bend, providing a stronger and stiffer connection while also allowing horizontal and vertical movement during seismic and high-wind events. HWDC5.25 provides anchorage location options with a third slot providing a solution for clips overhanging beam flanges. HWDC connectors are an optimal solution for adding strength to window or door jambs at head-of-wall connections.
Additional information
| Weight | 19 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 5-1/4 in |
| Depth | 5.25 in |
