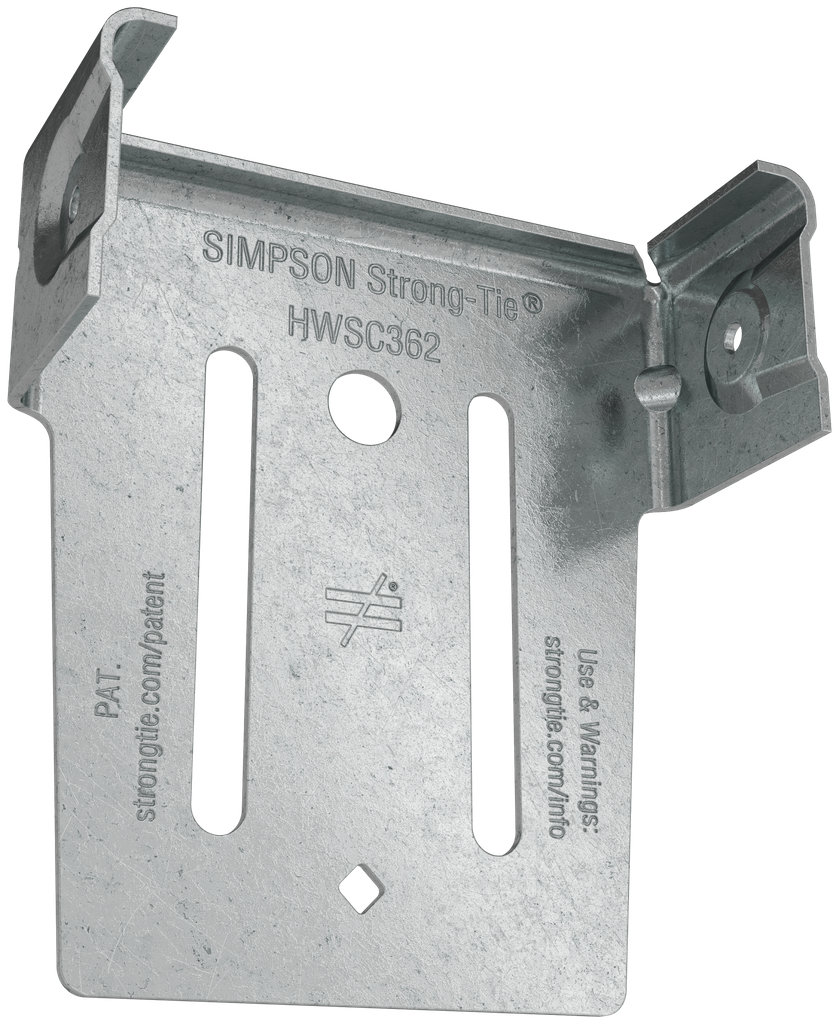

Simpson Strong-Tie HWSC362-KT 3 5/8″ HEAD OF WALL SLIDE 50PK W/SCREWS (1/each)
$100.50
Engineered for practical efficiency in construction applications, the HWSC™ Head-of-Wall Slide-Clip Connector offers notable advancements for panelization with 3-5/8-inch printed studs. Its design incorporates a rolled edge stiffener within the web and flange, enhancing strength and facilitating easy fastening of screws during installation. A unique cone-shaped dimple on the clip helps align the track dimple for a secured connection, significantly simplifying the assembly process compared to traditional slotted track systems. Crafted from 54-mil (16-gauge) galvanized steel, this connector not only emphasizes durability and corrosion resistance but also accommodates up to one inch of vertical movement, making it a versatile choice for various building projects. Please note that this product may expose users to chemicals, including wood dust, which the State of California recognizes as a potential cancer risk.
Description
The Simpson Strong-Tie® HWSC™ head-of-wall slide-clip connector is designed for simplifying the panelization of printed studs (e.g., FrameCAD, Arkitech, Howick and Pinnacle). The HWSC is designed to replace slotted track with a typical printed track at head-of-wall conditions. To facilitate installation, a cone-shaped funnel in the clip helps the dimple in the track align properly with the clip’s corresponding dimple to hold it in place while a screw is placed in each flange from the track to the clip. The stud is then slid into position, and the clip is attached to the stud with shoulder screws driven through the center of the fastener slots. As an option, fasten the clip to the stud hole using a single screw to lock the deflection gap in place temporarily during transport and installation. The optional screw is then removed after installation is complete. The HWSC has been assembly-tested to provide optimal strength and performance.
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.4375 in |
| Width | 3-7/16 in |
