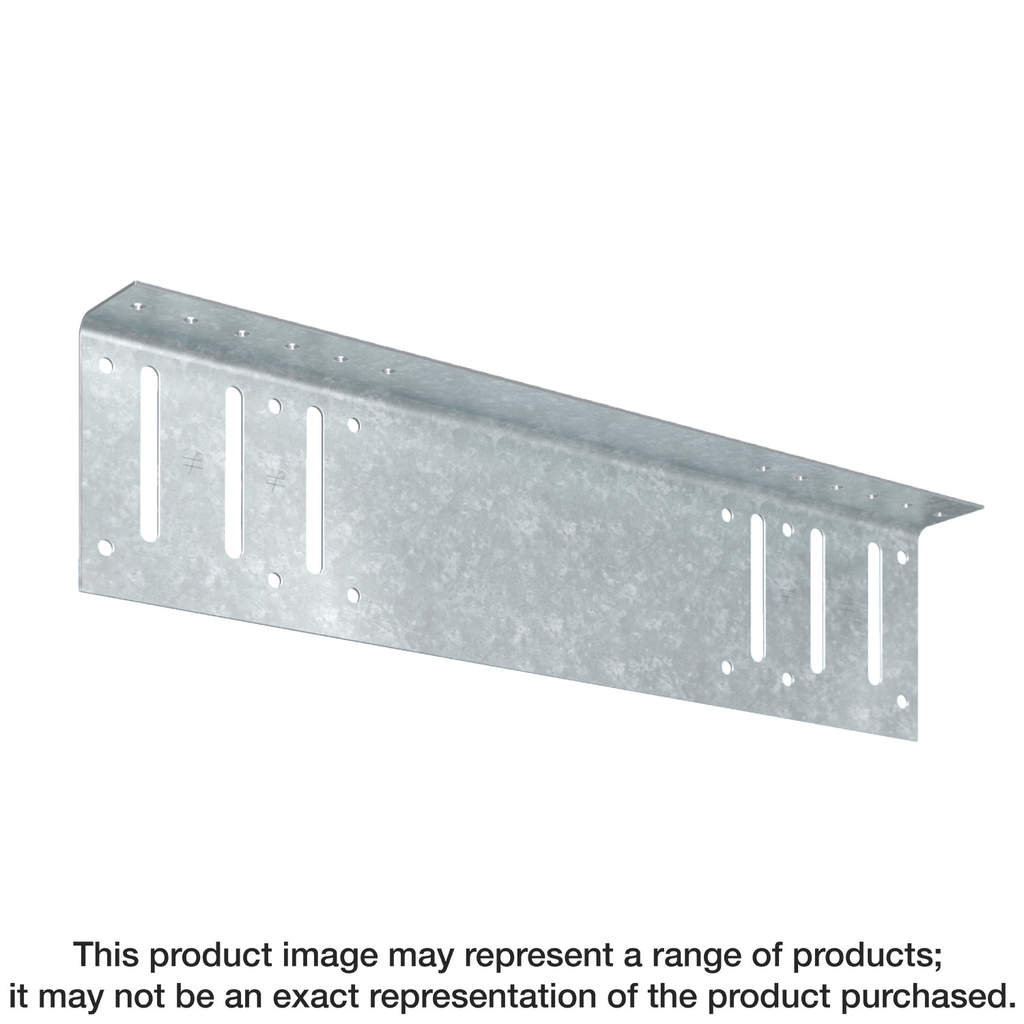

Simpson Strong-Tie HYS12/68-KT25 BYPASS HYBRID STRUT 14GA X 12″ LONG (1/each)
$204.49
The 12-inch 14-gauge bypass hybrid strut from Simpson Strong-Tie is engineered to effectively support both gravity and lateral loads, providing a reliable solution for various construction and structural applications. It features strategically positioned slots that reduce eccentric load, maximizing overall capacity and ensuring efficient performance. Crafted from durable 14-gauge steel and galvanized for corrosion resistance, this product includes pre-drilled holes specifically designed for #10 screws, with No-Equal stamps to facilitate precise placement. The slide application accommodates up to one inch of vertical movement in either direction when using shouldered screws, making it a versatile choice for structural reinforcement.
Description
The HYS hybrid strut is designed and tested for use as either a slide or a rigid clip. Commonly used at the bottom of a steel beam to accommodate large standoff conditions, the HYS strut attaches to the structure with screws, power-actuated fasteners or welds. The HYS has undergone comprehensive component, assembly and anchor testing. Tabulated loads were developed from these tests and include capacities based on strength and deflection to assist in mitigating design risk. You can count on the HYS dual-application strut for its versatility and test-verified performance.
Additional information
| Weight | 27.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 12 in |
| Length | 12 in |
