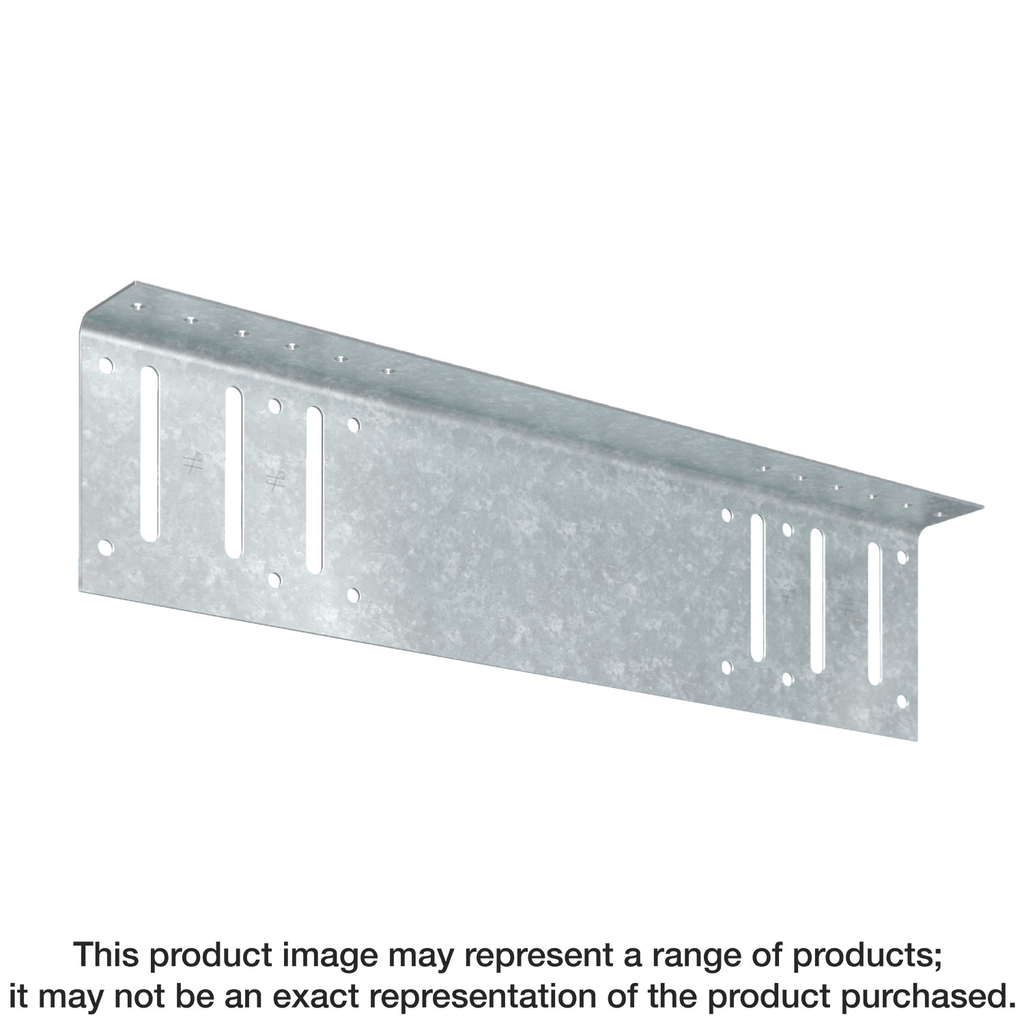

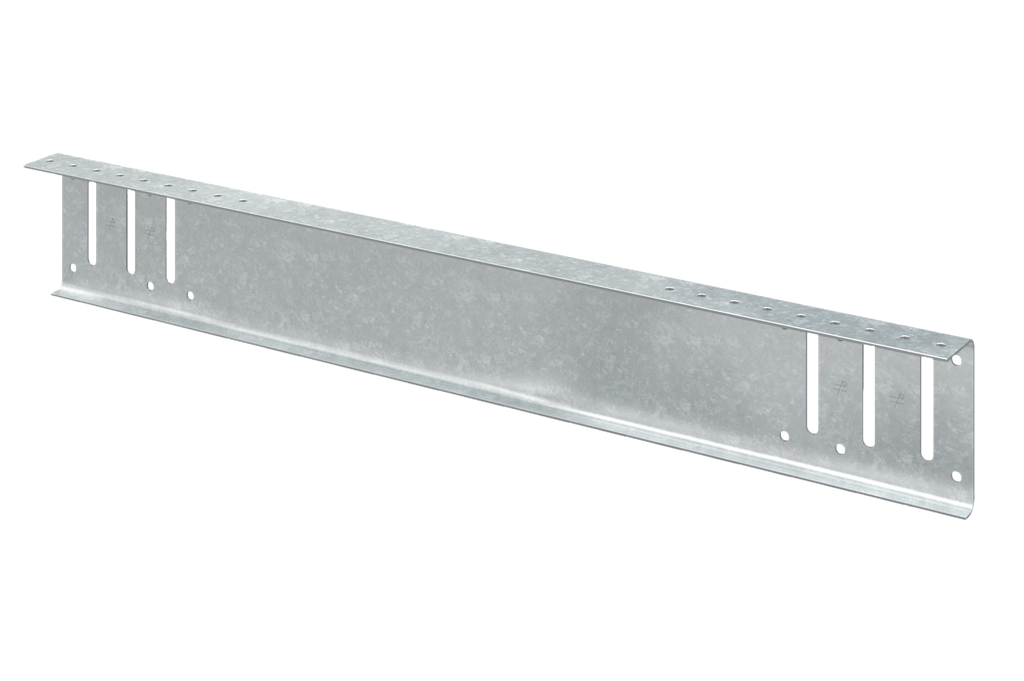

Simpson Strong-Tie HYS30/97-KT10 Bypass Hybrid Strut 12ga x 30″ long (1/each)
$161.59
The HYS 30 in. 12-Gauge Bypass Hybrid Strut from Simpson Strong-Tie is engineered for superior performance in demanding construction applications. Made from robust 12-gauge steel and finished with a galvanized coating for enhanced corrosion resistance, this strut is designed to withstand both gravity and lateral loads effectively. Its smart slot design is strategically positioned to reduce eccentric loads while maximizing capacity, allowing for up to 1 inch of vertical movement in each direction when used with shouldered screws. This not only ensures a reliable connection but also facilitates precise installation, with No-Equal stamps marking the slot center for accurate screw placement. The versatility and durability of this product make it an essential component for any construction project where strength and stability are paramount.
Description
The HYS hybrid strut is designed and tested for use as either a slide or a rigid clip. Commonly used at the bottom of a steel beam to accommodate large standoff conditions, the HYS strut attaches to the structure with screws, power-actuated fasteners or welds. The HYS has undergone comprehensive component, assembly and anchor testing. Tabulated loads were developed from these tests and include capacities based on strength and deflection to assist in mitigating design risk. You can count on the HYS dual-application strut for its versatility and test-verified performance.
Additional information
| Weight | 41.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 30 in |
| Capacity | Supports gravity and lateral loads |
