Simpson Strong-Tie RCA-C223/97-R90 CFS Concrete Clip 2x2x3 12ga 90 pak (1/each)
$228.16

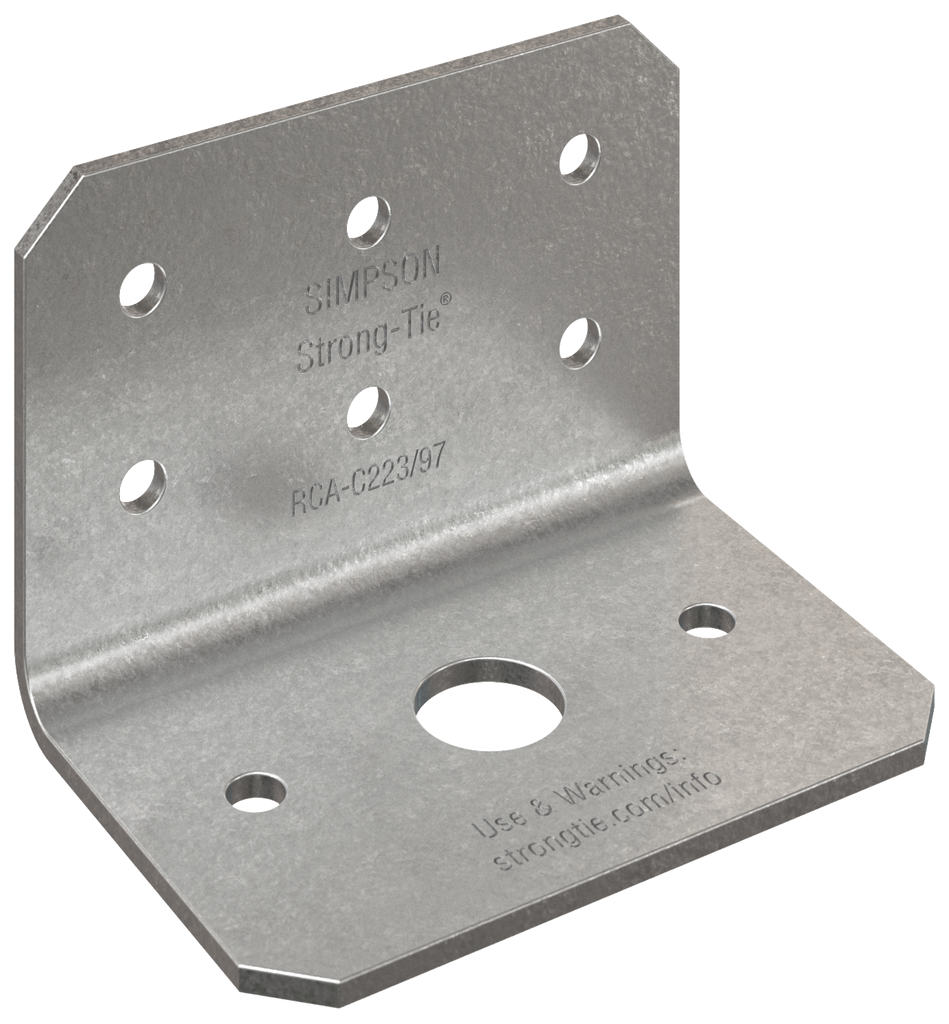

Engineered to provide robust structural support, the RCA-C™ rigid connector angle is crafted from 12-gauge steel and finished with a galvanized coating to enhance its corrosion resistance, making it suitable for demanding applications in concrete and masonry. With its generous 2-inch by 2-inch legs, this connector allows ample space for securing attachments to various structures and stud framing. The design features prepunched holes that accommodate multiple anchor types, including 1/2-inch diameter Titen HD and 1/4-inch diameter concrete screws, providing versatility for different load ratings. Whether you require a heavy-duty shear and tension connector or a light-duty moment connection, this product meets various engineering needs with ease and reliability.
Description
The Simpson Strong-Tie® RCA-C is an ideal solution for attaching stud framing to concrete supports. The connector’s design includes holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws, positioned in a wide array of fastening options — thus saving the installer the time and cost of drilling connector holes at the jobsite. In addition, the RCA-C connector has been rigorously tested and load rated, giving you the confidence of quality and performance for your job.
Additional information
| Weight | 30.01 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in |
| Size | 2 in x 2 in x 3 in |
