Simpson Strong-Tie RCA-C225/97-R55 CFS Concrete Clip 2x2x5 12ga clip 55 pak (1/each)
$192.23

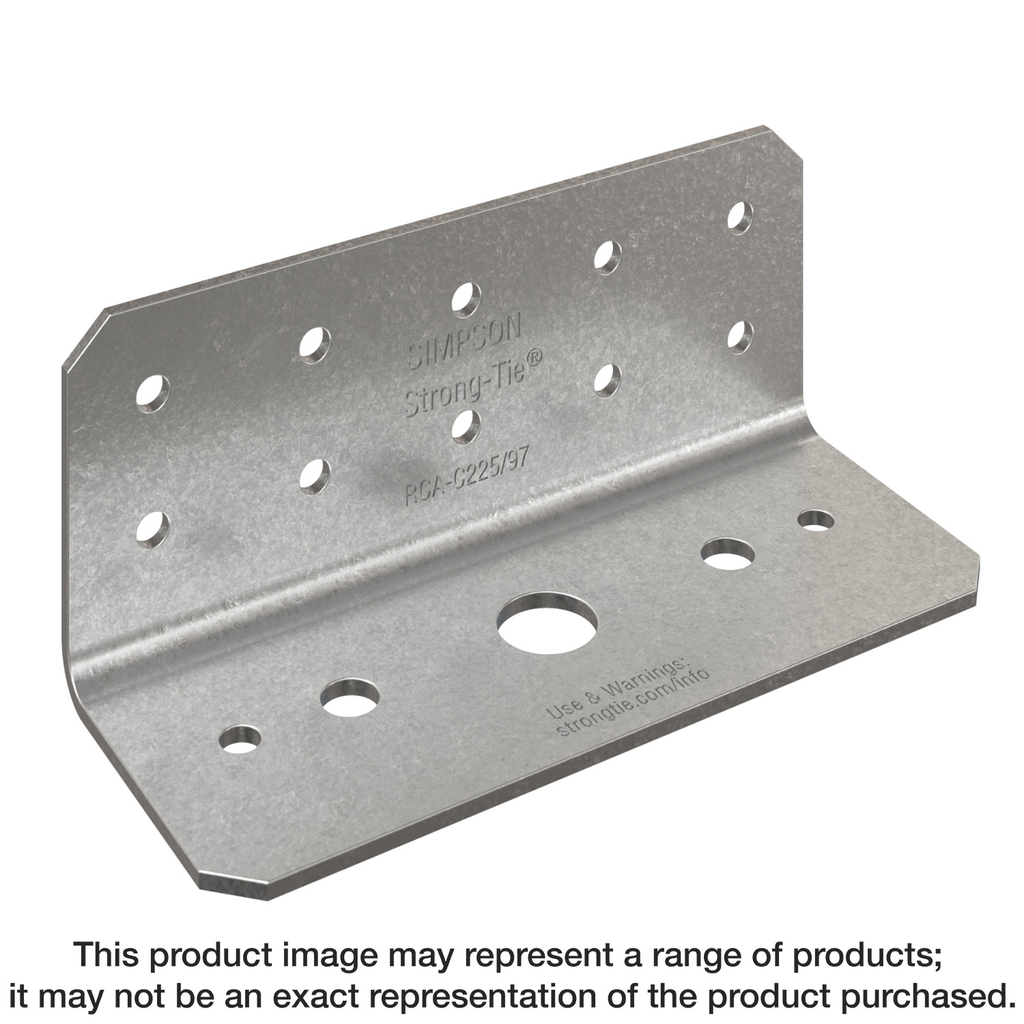

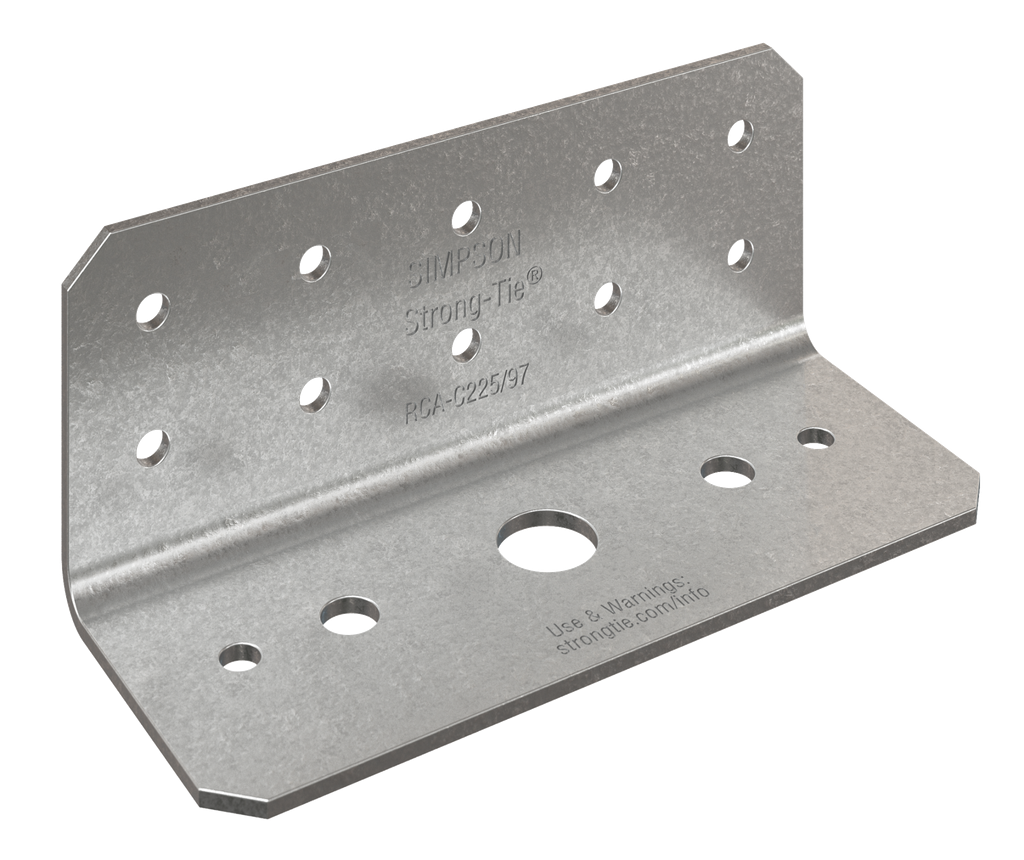

Engineered for robust structural applications, the Simpson Strong-Tie RCA-C™ connector angle provides versatile support for concrete and masonry connections. Constructed from heavy-duty 12-gauge steel and finished with a galvanization process for enhanced corrosion resistance, this connector ensures long-lasting performance in demanding environments. Its thoughtful design features prepunched holes for convenient attachment, accommodating different anchor sizes to meet various load requirements while allowing for flexible attachment to stud framing. With 2-inch by 2-inch legs, it offers ample area for secure installations, making it suitable for both heavy-duty shear and tension connections as well as lighter moment connections.
Description
The Simpson Strong-Tie® RCA-C is an ideal solution for attaching stud framing to concrete supports. The connector’s design includes holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws, positioned in a wide array of fastening options — thus saving the installer the time and cost of drilling connector holes at the jobsite. In addition, the RCA-C connector has been rigorously tested and load rated, giving you the confidence of quality and performance for your job.
Additional information
| Weight | 30.57 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 2 in x 2 in x 5 in |
| Material | 12-gauge Steel |
