Simpson Strong-Tie RCKW3-R10 CFS CLIP 3.5 X 2.25 X 3, 7 GA 10PAK (1/each)
$62.20

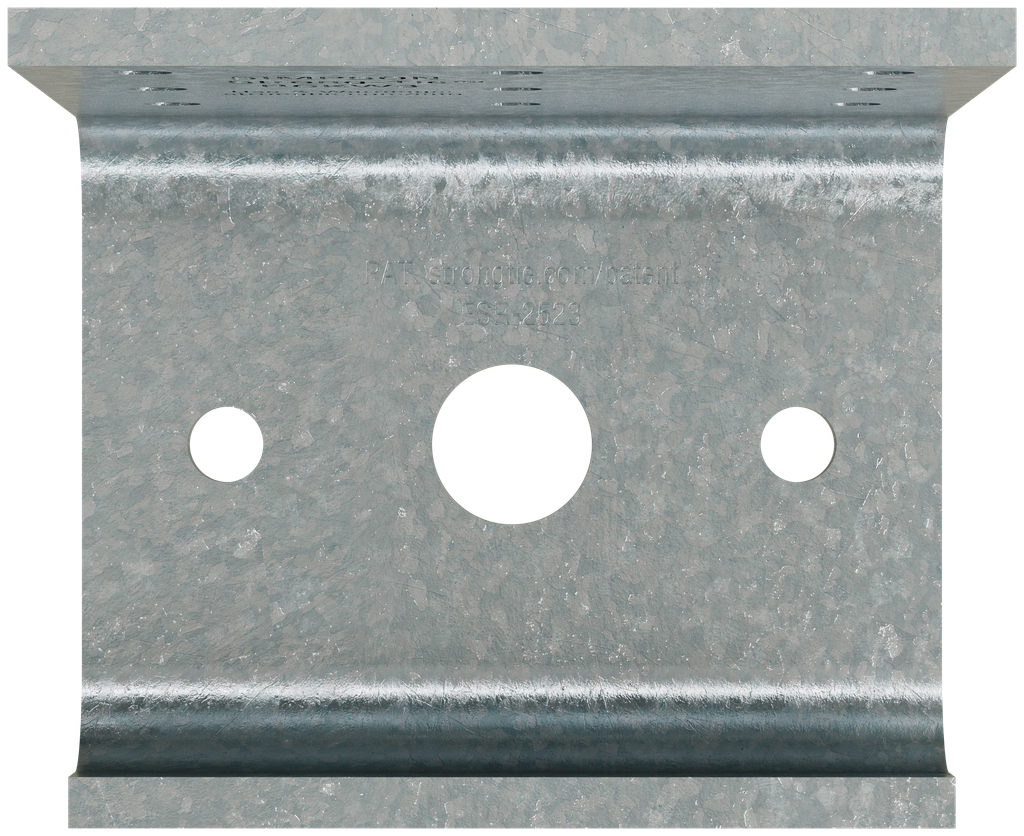

The RCKW™ 3-in. Kneewall Connector Clip by Simpson Strong-Tie is engineered for robust structural connections in framing applications. Constructed from durable 171 mil (7 ga.) steel and finished with a G90 galvanized coating, this clip offers superior corrosion resistance, ensuring longevity even in challenging environments. With a central bolt hole designed to accommodate 3-5/8 inch framing, it efficiently supports various anchoring methods, including the use of large-diameter concrete screw anchors and smaller self-drilling screws for attachment to structural steel. The addition of stiffened flanges enhances its resistance to overturning moments, providing added reliability in construction projects.
Description

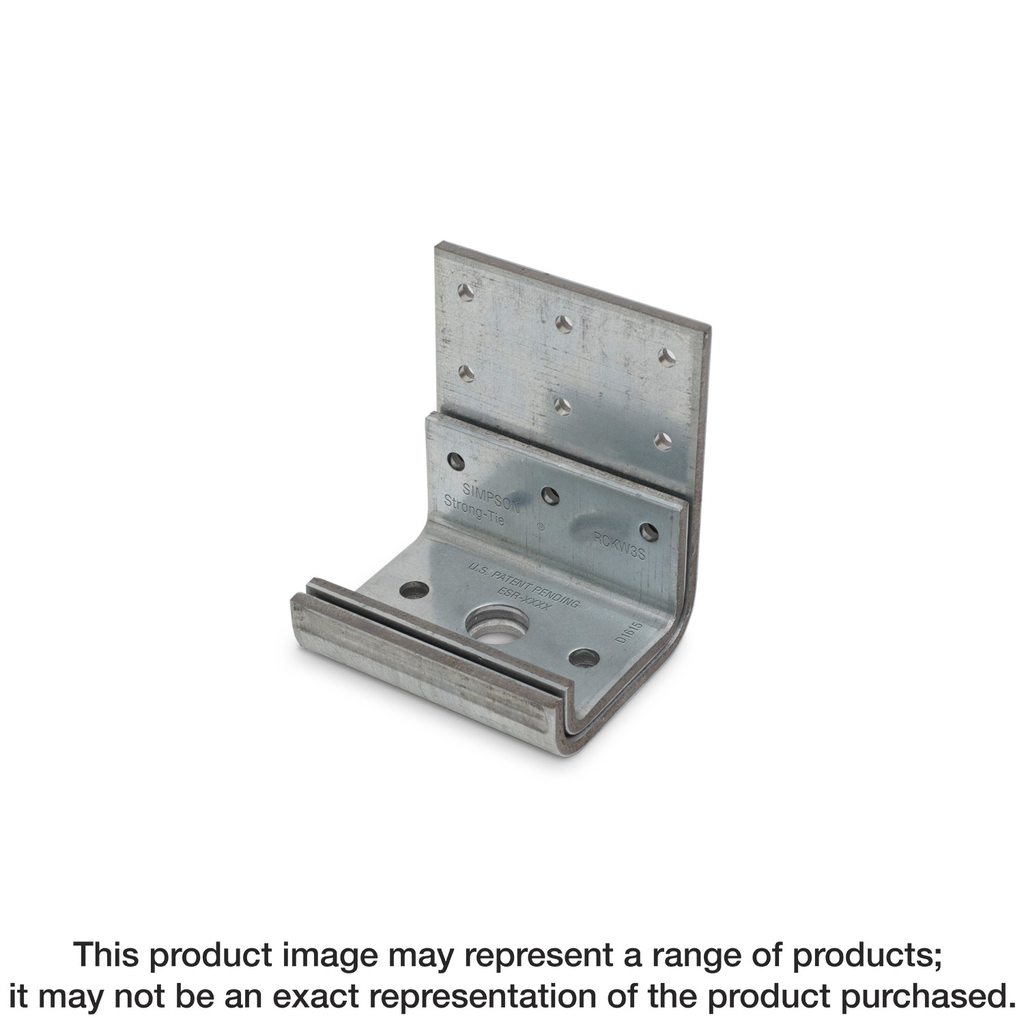

The Simpson Strong-Tie® RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
Additional information
| Weight | 9.12 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 3 in |
| Depth | 3 in |
