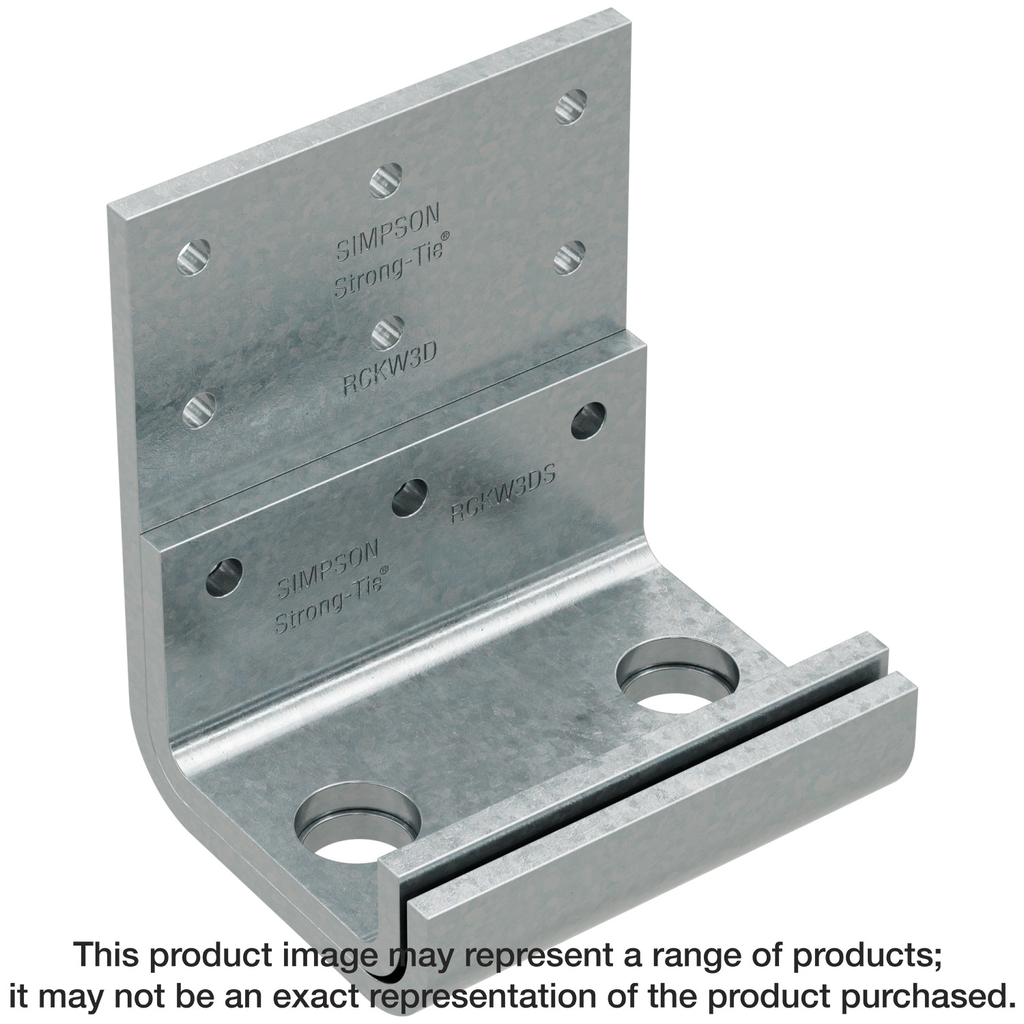

Simpson Strong-Tie RCKW3D-R10 CFS CLIP 3.5X2.25X3, 2hole, 7 GA 10 PAK (1/each)
$62.20
The Simpson Strong-Tie RCKW™ Two-Anchor Kneewall Connector Clip stands out for its robust design, crafted from durable 171 mil (7 ga.) steel and finished with a galvanized (G90) coating for excellent corrosion resistance. This connector clip features two large-diameter anchor holes that accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD® and Strong-Bolt® 2, ensuring enhanced anchorage capacity at each end. Additionally, the inclusion of stiffened flanges in the anchorage legs significantly improves resistance to overturning moments, making this connector exceptionally reliable for reinforced kneewall applications. Supplied in a convenient pack of ten, it is an essential component for achieving structural integrity in various construction projects.
Description

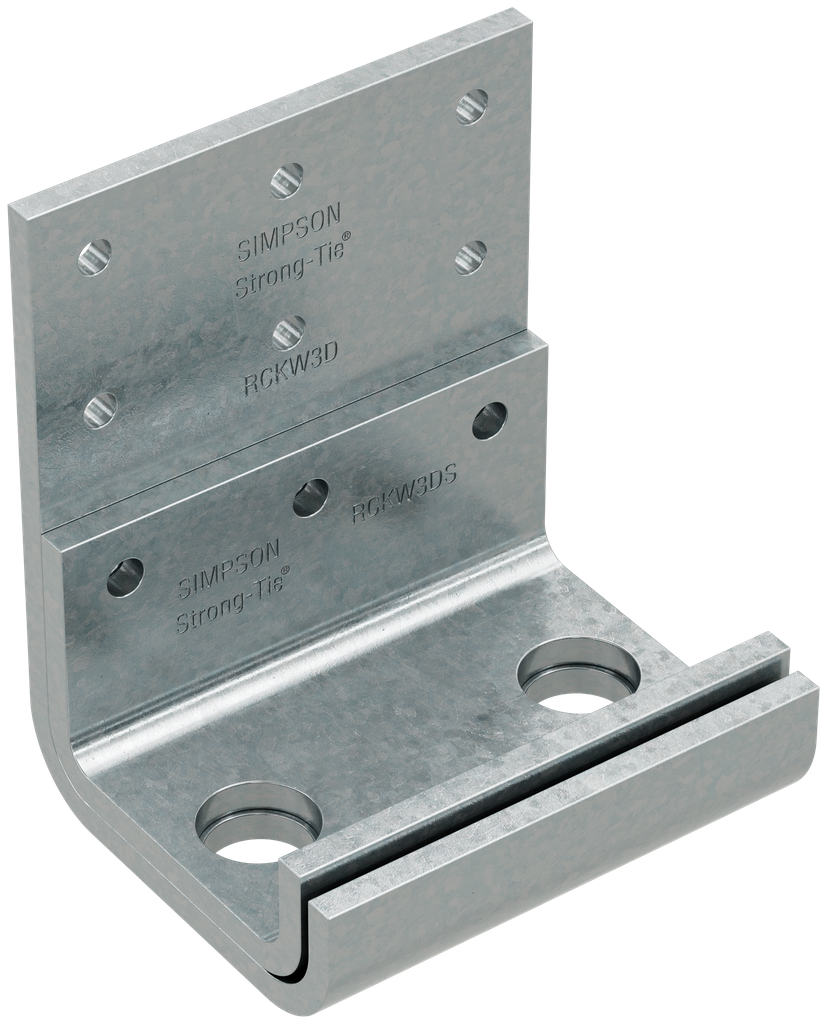

The Simpson Strong-Tie® RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
Additional information
| Weight | 9.12 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in |
| Width | 3 in |
