Simpson Strong-Tie RCKW3DS-R10 CFS STIFFENER 1.5X2X3, 2hole, 7GA 10 PAK (1/each)
$56.20

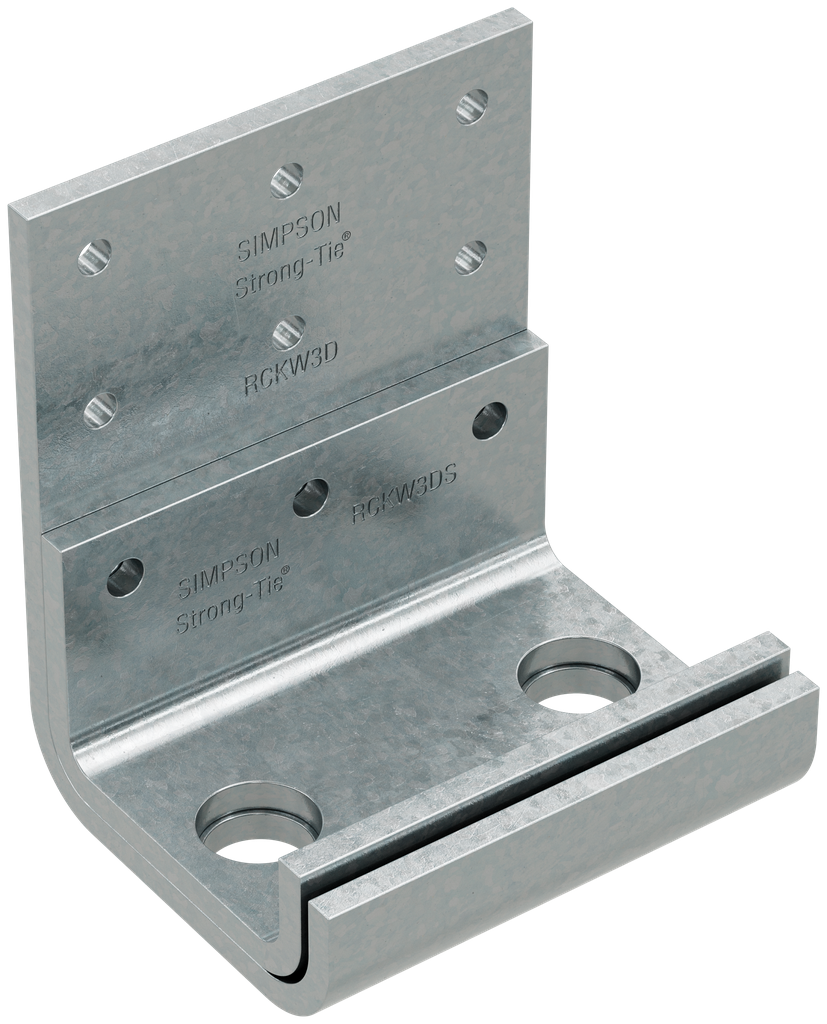

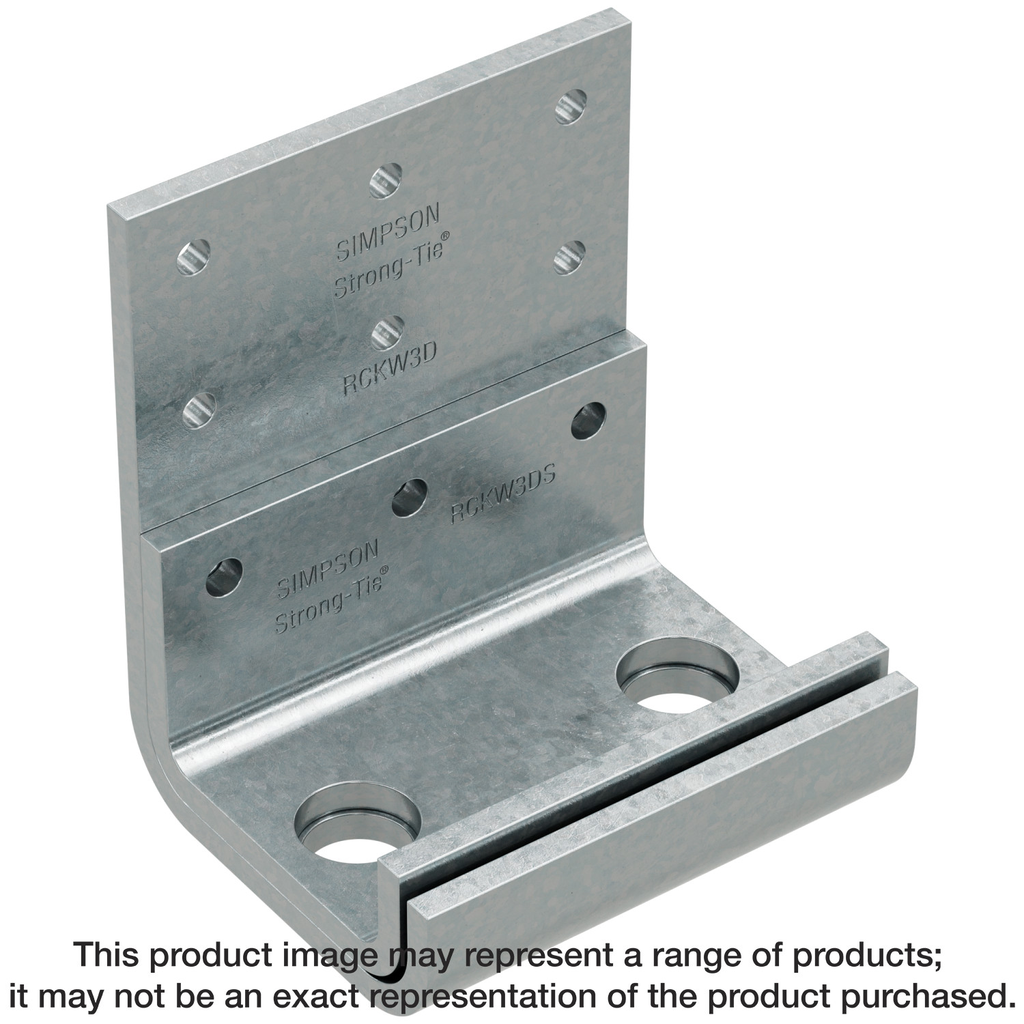

Engineered for optimal performance in structural applications, the RCKW™ 3-in. Two-Anchor Kneewall Connector Stiffener from Simpson Strong-Tie features a robust galvanized construction, ensuring long-lasting corrosion resistance. Each stiffener, measuring 171 mil (7 ga.), is securely attached to the RCKW clip with screws, effectively enhancing overturning moment resistance and overall stiffness. Designed with two large holes at either end, this connector allows for increased anchorage capacity, accommodating sizable concrete screw and wedge anchors, including the Simpson Strong-Tie Titen HD® and Strong-Bolt® options. The incorporation of stiffened flanges on the anchorage legs further improves the system’s strength and stability, making this product an essential choice for reliable kneewall connections.
Description
The Simpson Strong-Tie® RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
Additional information
| Weight | 5.59 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Anchor Hole Size | 1/2 in diameter |
| Connector Type | Two-Anchor Kneewall Stiffener |
