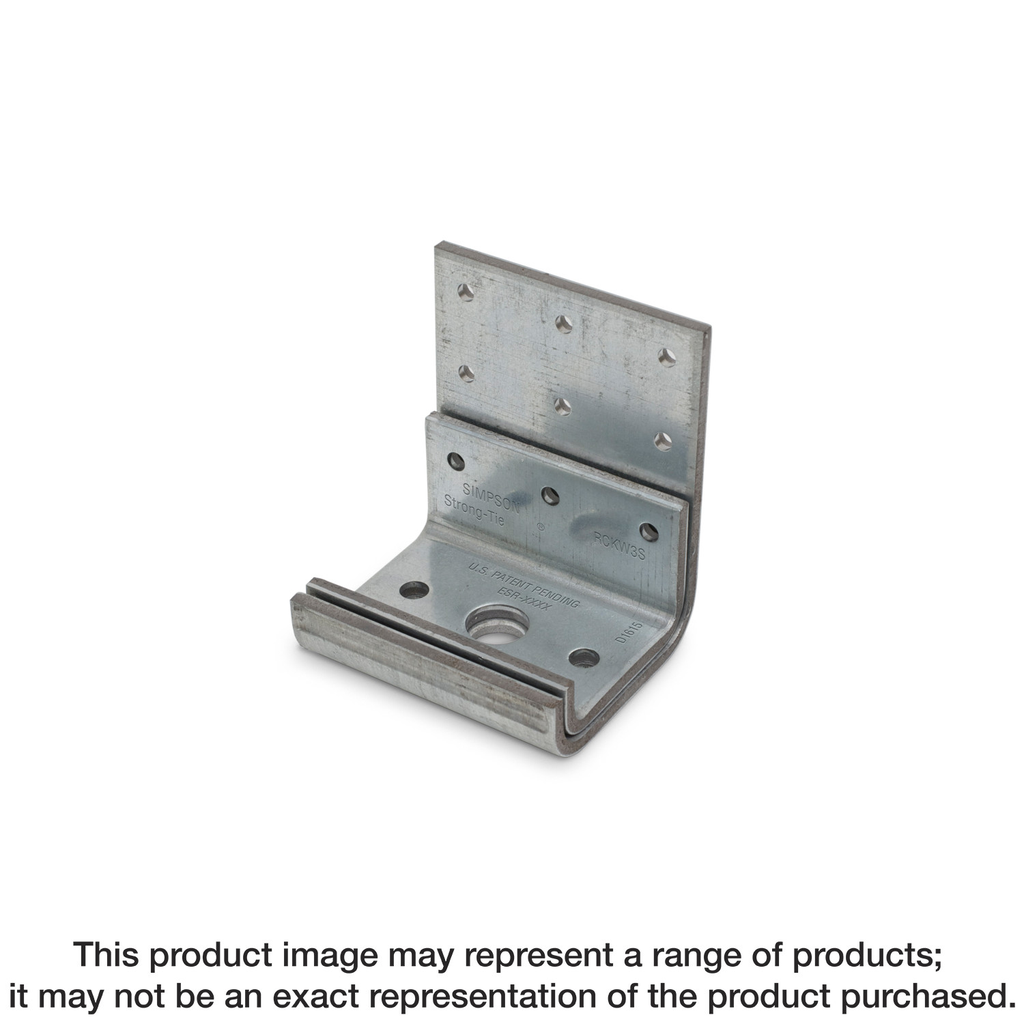

Simpson Strong-Tie RCKW3S-R10 CFS STIFFENER 1.5 X 2 X 3, 7GA 10 PAK (1/each)
$56.20
Constructed by Simpson Strong-Tie, the RCKW3S-R10 RCKWS 3-in. Kneewall Connector Stiffener is designed to provide robust support and stability in framing applications. This product features a large, centrally located bolt hole that accommodates 3-5/8 inch framing, simplifying installation while optimizing resistance to overturning moments. With a sturdy 171 mil (7 gauge) stiffener secured to the RCKW clip with screws, it enhances overall stiffness and reliability.
Description

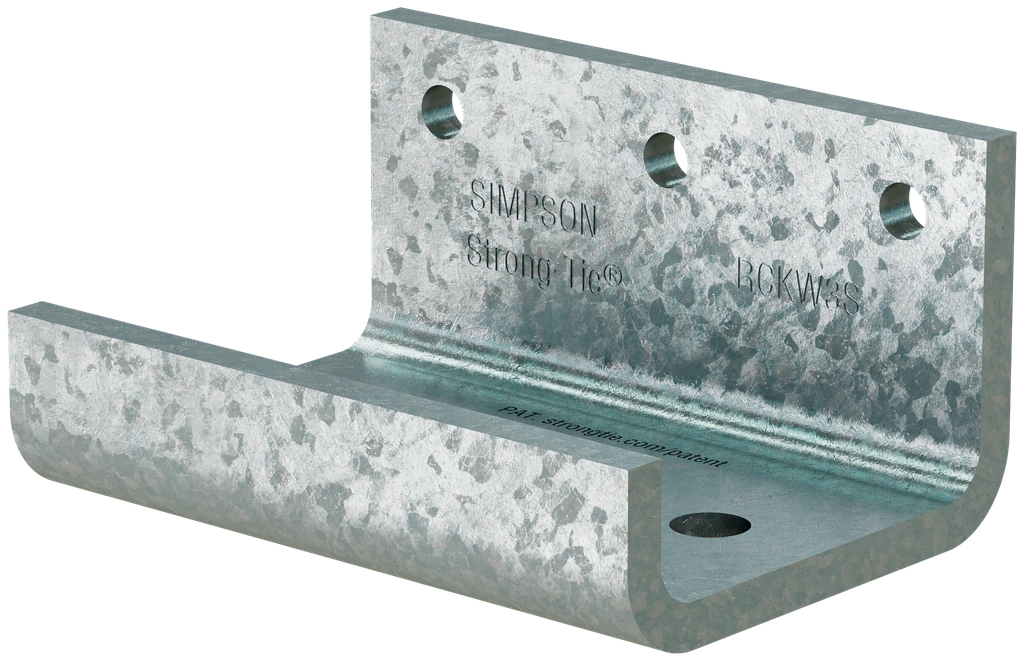

The Simpson Strong-Tie® RCKW™ is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
Additional information
| Weight | 5.59 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Width | 3 in |
| Depth | 3 in |
