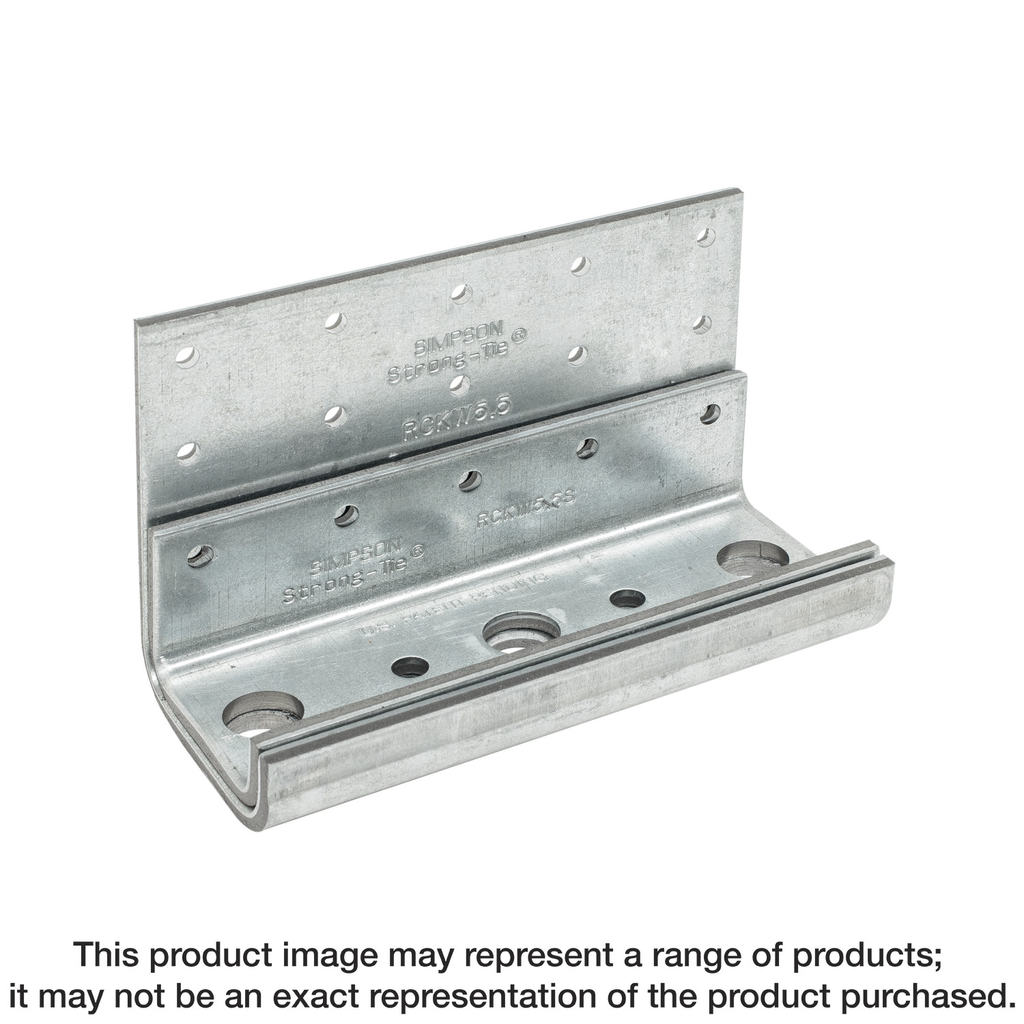

Simpson Strong-Tie RCKW5.5S-R10 CFS STIFFENER 1.5 X 2 X 5.5, 7GA 10 PAK (1/each)
$65.86
The RCKW™ 5.5-in. Kneewall Connector Stiffener from Simpson Strong-Tie is engineered for superior stability in construction applications, particularly when reinforcing kneewalls. Crafted from galvanized (G90) material, this connector is designed to resist corrosion, ensuring long-lasting performance, even in challenging environments. Its robust 171 mil (7 ga.) stiffener enhances resistance to overturning moments and offers exceptional stiffness when secured to the connector clips with screws.
Description
The Simpson Strong-Tie® RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
Additional information
| Weight | 9.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Country of Origin | United States |
| Width | 5 1/2 |
