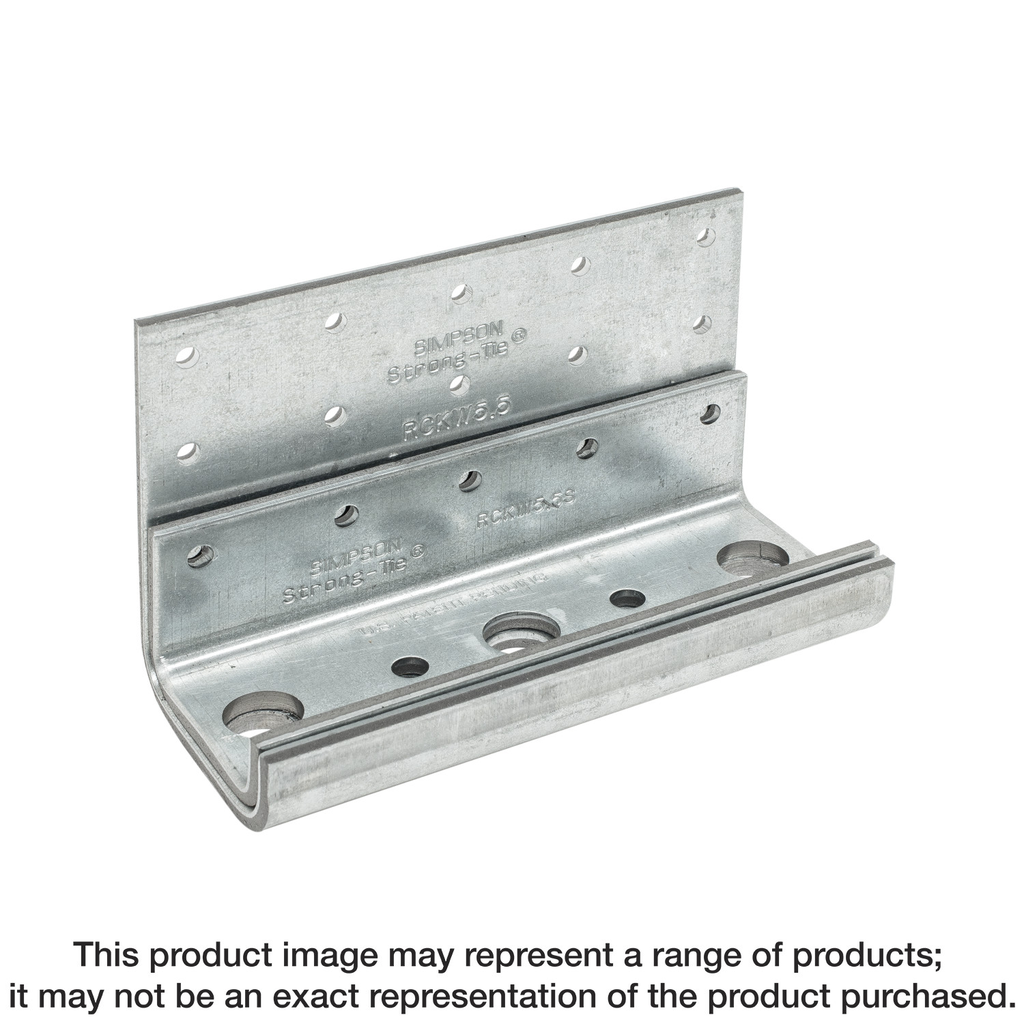

Simpson Strong-Tie RCKW7.5-R10 CFS CLIP 3.5 X 2.25 X 7.5, 7GA 10PAK (1/each)
$98.23
Engineered for robust structural connections, the Simpson Strong-Tie RCKW 7.5-in. Kneewall Connector Clip offers versatile anchoring solutions that meet the demands of modern construction. Made from high-strength 171 mil (7 ga.) steel, these clips are designed with additional smaller-diameter anchor holes, allowing for secure attachment to structural steel using #12 self-drilling screws. Their innovative design includes three large holes: a central hole for a one-anchor solution and outer holes for a two-anchor setup, providing options for higher capacities depending on the structural requirements. The galvanized finish not only enhances their durability but also ensures resistance to corrosion, making them suitable for various applications where longevity and strength are paramount.
Description
The Simpson Strong-Tie® RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
Additional information
| Weight | 22.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 7.50 in |
| Width | 7.5 in |
