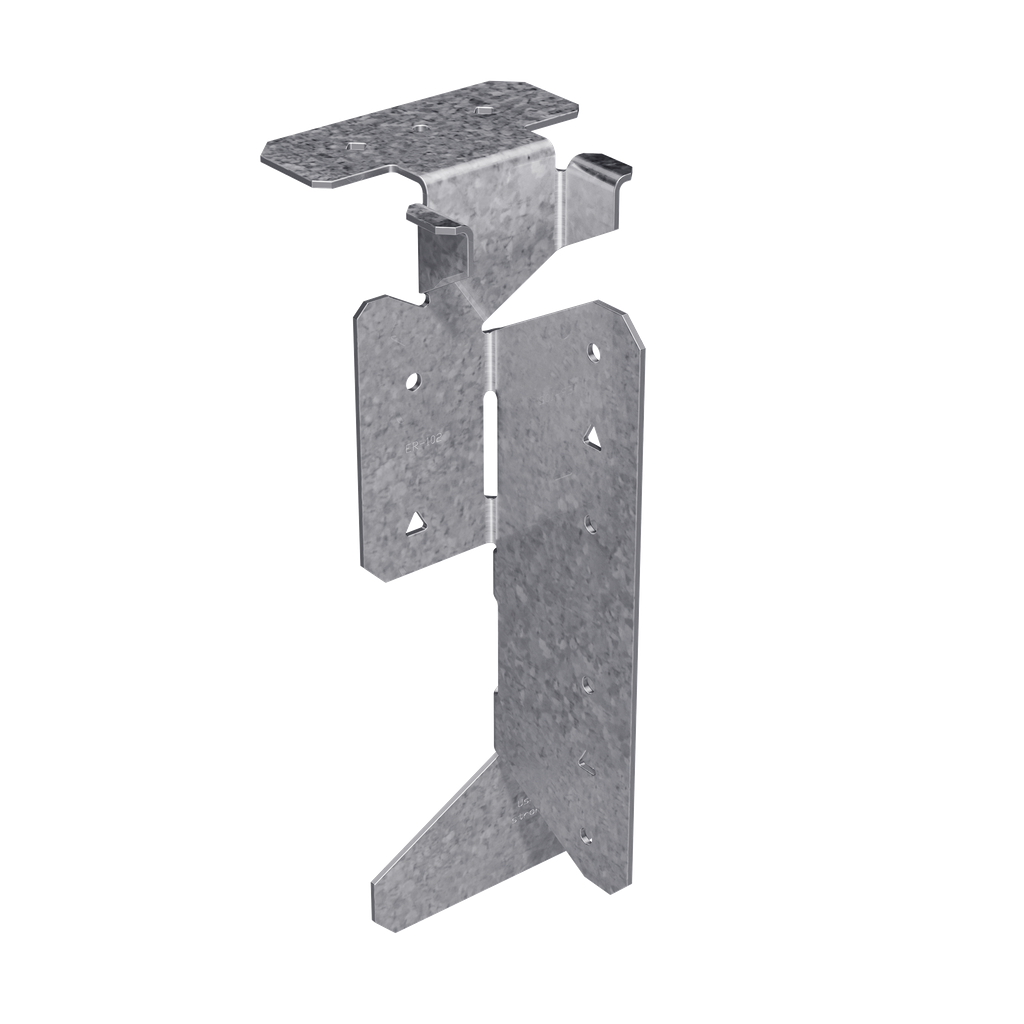

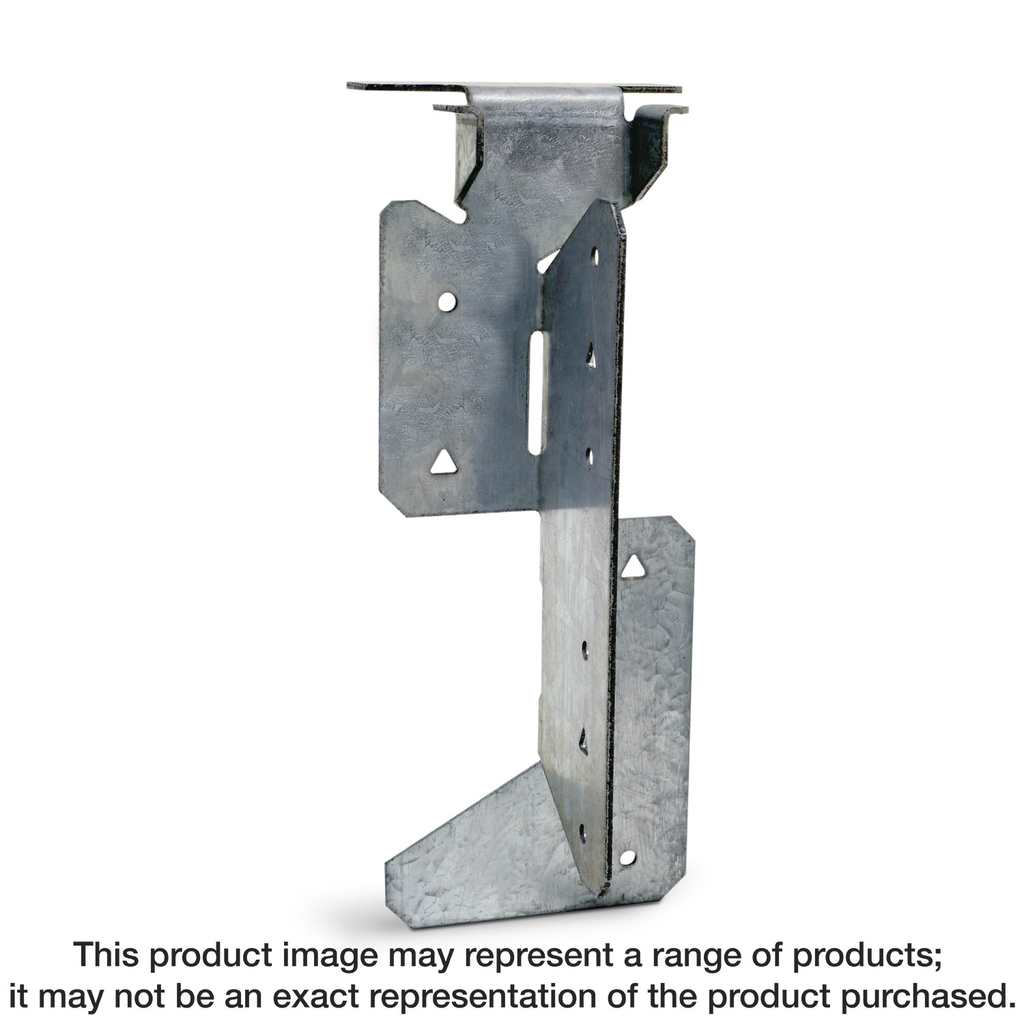

Simpson Strong-Tie S/JCT LIGHT GAUGE STEEL – CFS C-JOISTS (1/each)
$4.11
Engineered for strength and reliability, the Light-Gauge Steel-Joist Hanger from Simpson Strong-Tie is an essential component for constructing secure structures. Fabricated from robust 68-mil (14-gauge) steel, it provides exceptional support for joists ranging from 8 inches to 14 inches in depth, ensuring structural integrity in various applications. The hanger features horizontal tabs that facilitate precise top-flange alignment and simplify screw installation, while its galvanized G90 coating offers excellent corrosion resistance for long-lasting performance. Additionally, it can be skewed up to 45 degrees in either direction in the field, accommodating different design needs with ease.
Description
The Simpson Strong-Tie® S/JCT is a skewable steel-joist framing connector that combines strength, versatility and reduced installed cost. The hanger can be used with CFS headers, wood headers, steel I-beams (with welds or PAT fasteners) and masonry walls. Installed cost is minimized since these products are designed for shear loads rather than bearing, eliminating the need for web stiffeners. Framing is unidirectional and the joist can be attached from either the left or the right side.
Additional information
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.125 in |
| Joist Size | 8 in to 14 in depth |
