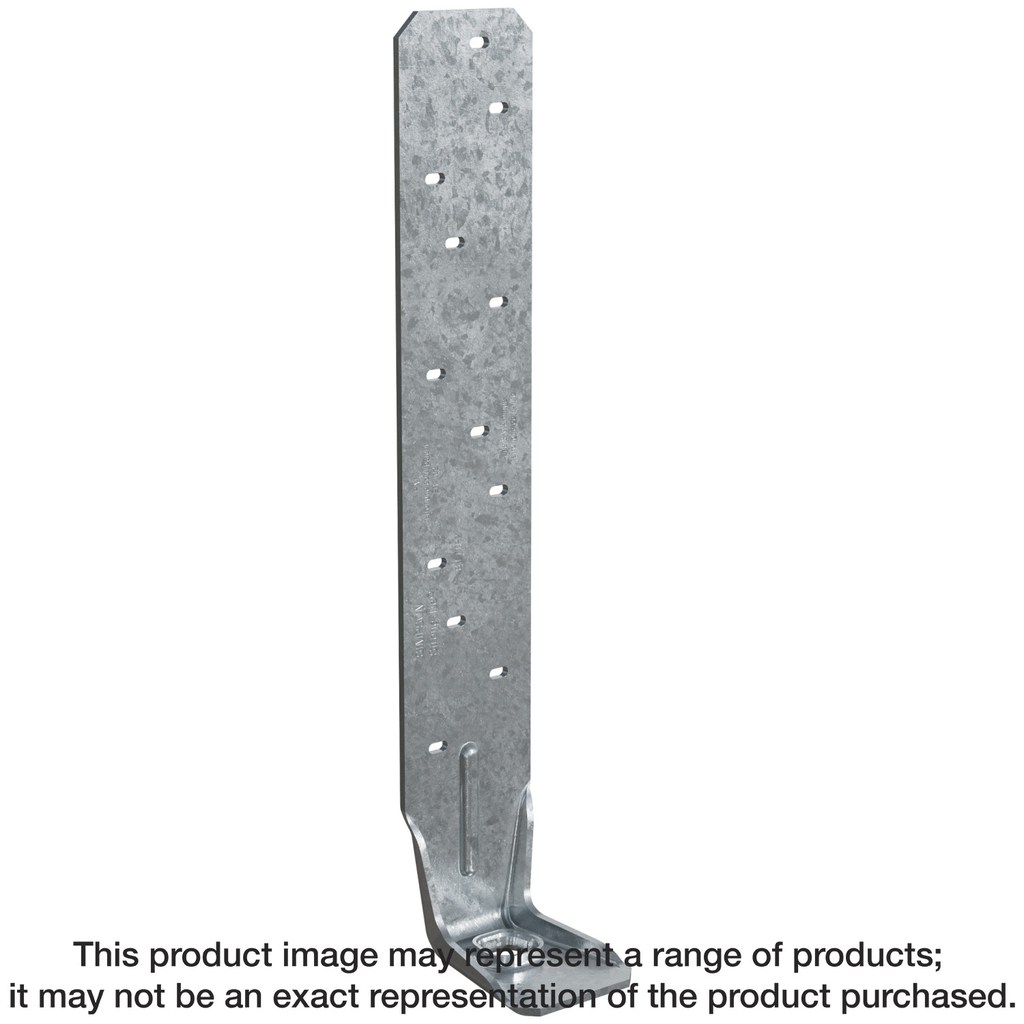

Simpson Strong-Tie S/LTTP2 Light-Duty Tension Tie (1/each)
$20.99
The Simpson Strong-Tie galvanized tension tie is an essential component for both retrofit and new construction projects involving cold-formed steel. Crafted from robust 10-gauge steel, this tie embodies strength, featuring flanges that are rolled into the bend, coupled with an extruded anchor bolt hole, which enhances durability and minimizes deflection. Its design facilitates straightforward installation, allowing for the secure attachment of 1/2-inch diameter post-installed or cast-in-place anchors to concrete, as well as #10 screws to cold-formed steel studs. Additionally, its galvanized finish (G90) ensures excellent corrosion resistance, making it a reliable choice for a variety of applications.
Description

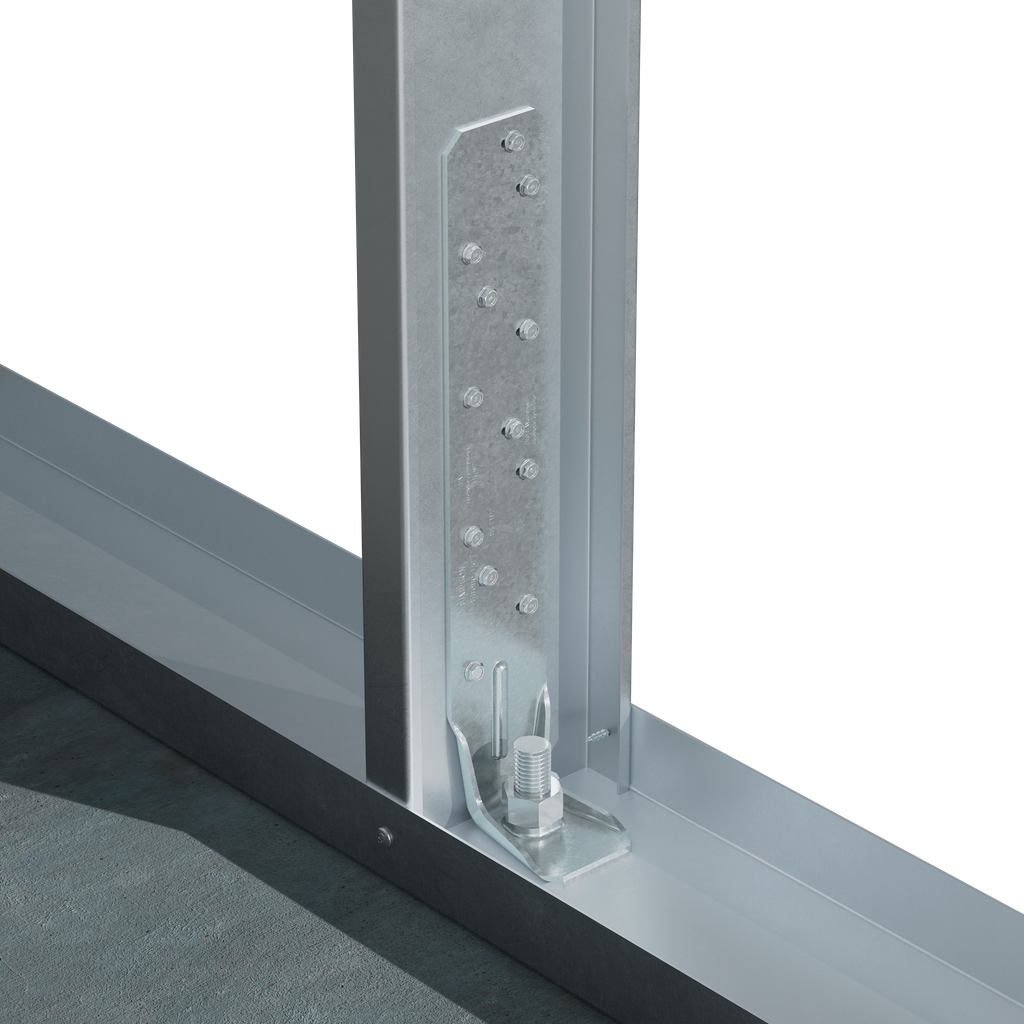

The Simpson Strong-Tie® S/LTTP2 tension tie is ideal for retrofit or new construction. It is designed for easy installation for attachment with a 1/2-in. diameter post-installed or cast-in-place anchor to concrete and #10 screws to a CFS stud. The S/LTTP2 has flanges rolled into the bend and an extruded anchor bolt hole that provide increased strength and limit deflection.
Additional information
| Weight | 1.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 14-15/16 in |
| Width | 2-9/16 in |
