Simpson Strong-Tie SCS62-5/97-KT25 Slide Clip 2x6x5 12 ga 25 PAK w/Screws (1/each)
$161.99

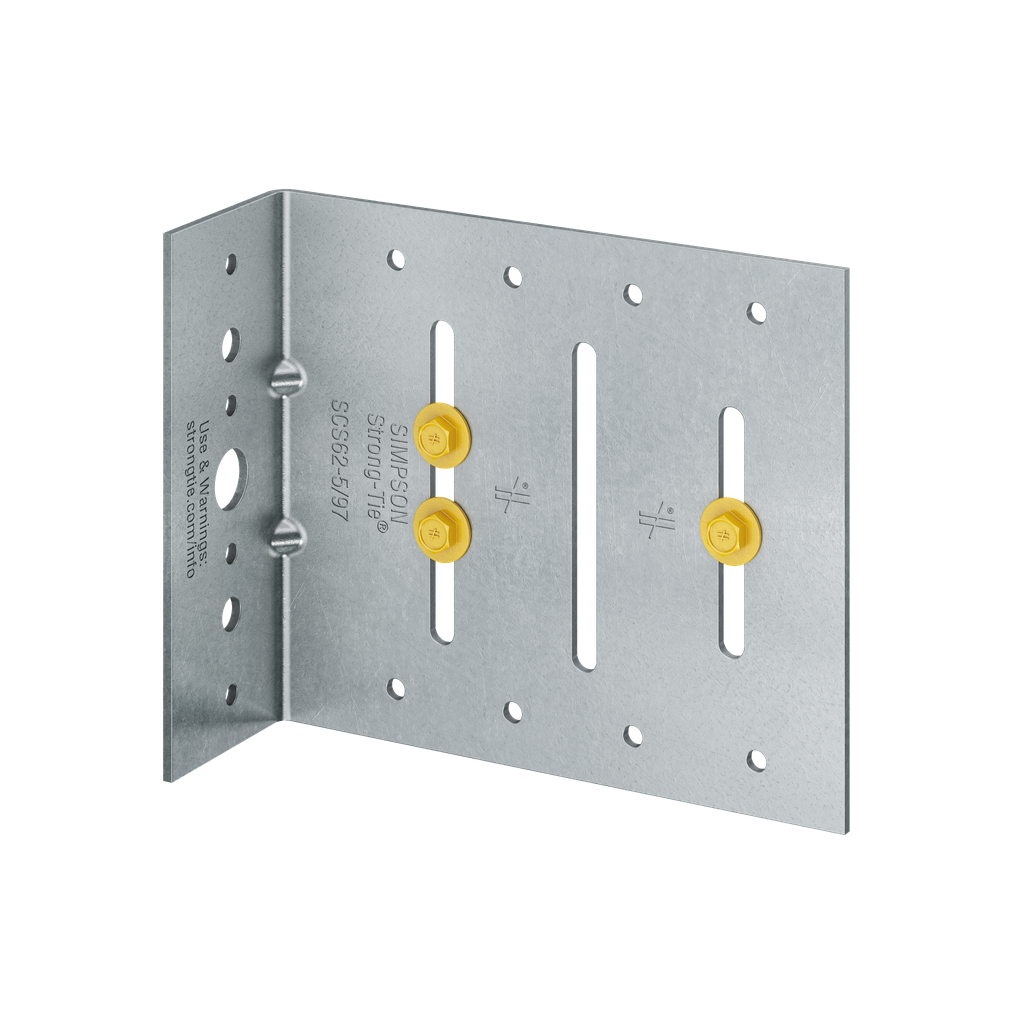

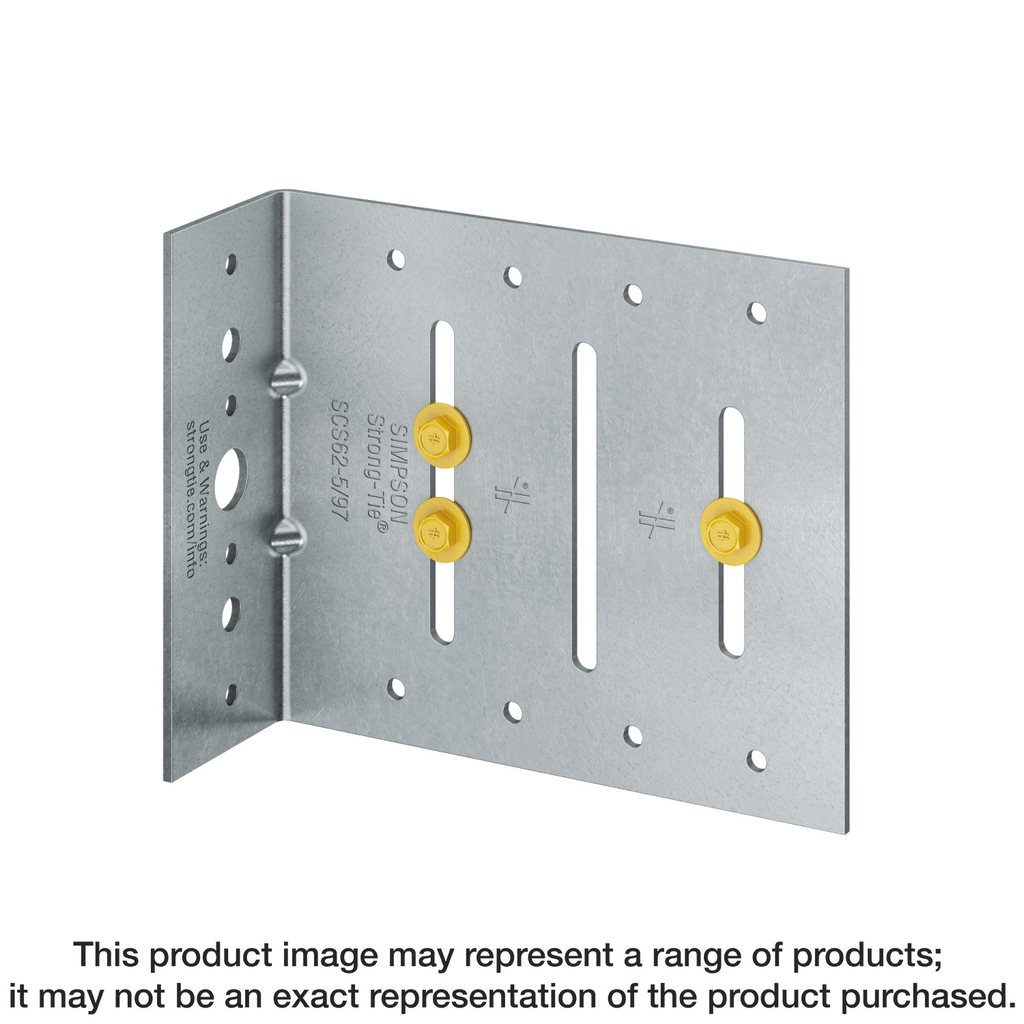

Engineered for exceptional performance in seismic applications, the SCS 2 in. x 6 in. x 5 in. Seismic Bypass Framing Slide Clip is an essential component for enhancing structural integrity. Each clip is crafted from robust 12-gauge steel and features precision-located ribs that not only bolster strength but also provide necessary ductility. The dual-function design, equipped with prepunched slots for sliding applications and small round holes for fixed installations, ensures versatility in usage. Additionally, the galvanized finish offers reliable corrosion resistance, making these clips suitable for diverse environments. Furthermore, the inclusion of shouldered washer screws allows for a full inch of vertical deflection, accommodating the natural movement of structures during seismic events.
Description
The Simpson Strong-Tie® SCS is a hybrid clip designed specifically to allow both slide-clip or fixed-clip applications in areas of high seismic activity. Everything about the SCS clip — from its heavy-duty steel manufacturing to its strategically placed darts to the location of its fastener slots and holes — has been engineered to provide exceptional resistance to in-plane seismic loads. Backed by our real-world, full-scale cyclic testing, the SCS seismic clip delivers the highest seismic loads in the industry. Slide-clip testing shows that attachment at the first slot is most critical to in-plane capacity, the SCS is designed to accommodate two large washer screws (included) at the first slot attached to the stud. The hole types and locations maximize the SCS clip’s versatility, with three prepunched oblong slots for slide-clip applications and a pattern of round holes allowing fixed-clip options to meet a range of load needs.
Additional information
| Weight | 28.84 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 2 in x 6 in x 6 in |
| Material | 12-gauge Steel |
