Simpson Strong-Tie SCS82-5/118-KT25 Slide Clip 2x8x5 10 ga 25 PAK w/Screws (1/each)
$258.73

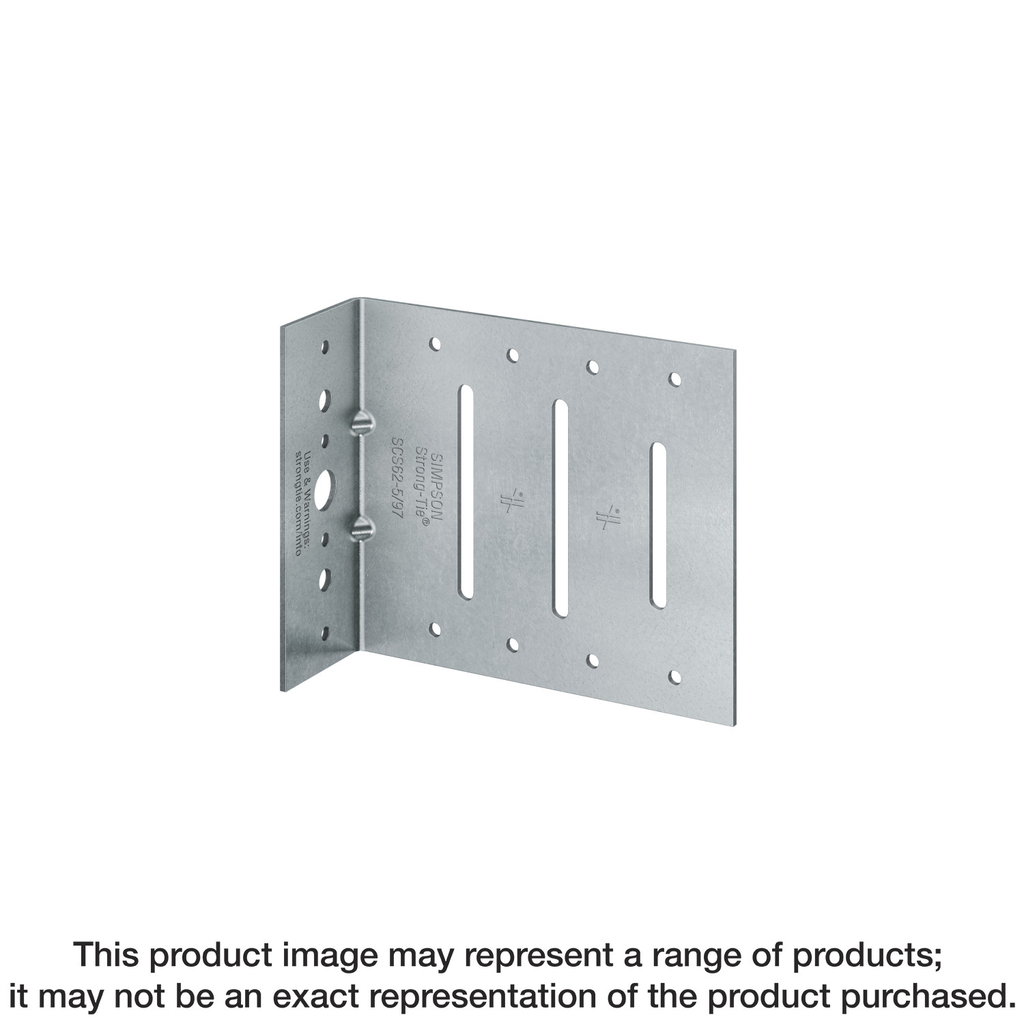

Engineered for high-performance seismic applications, this 10-gauge framing slide clip from Simpson Strong-Tie is essential for ensuring structural integrity in demanding environments. The clip features precision-located ribs that not only enhance strength but also allow for necessary ductility, accommodating natural movements without compromising stability. Designed with dual functionality, it offers prepunched slots for sliding applications, while also incorporating small round holes for fixed installations, making it versatile for various construction needs. Galvanized for corrosion resistance, these clips provide durability and longevity, and the included shouldered washer screws facilitate a full 1-inch vertical deflection, ensuring optimal performance under stress.
Description
The Simpson Strong-Tie® SCS is a hybrid clip designed specifically to allow both slide-clip or fixed-clip applications in areas of high seismic activity. Everything about the SCS clip — from its heavy-duty steel manufacturing to its strategically placed darts to the location of its fastener slots and holes — has been engineered to provide exceptional resistance to in-plane seismic loads. Backed by our real-world, full-scale cyclic testing, the SCS seismic clip delivers the highest seismic loads in the industry. Slide-clip testing shows that attachment at the first slot is most critical to in-plane capacity, the SCS is designed to accommodate two large washer screws (included) at the first slot attached to the stud. The hole types and locations maximize the SCS clip’s versatility, with three prepunched oblong slots for slide-clip applications and a pattern of round holes allowing fixed-clip options to meet a range of load needs.
Additional information
| Weight | 46.42 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 8 in |
| Depth | 8 in |
